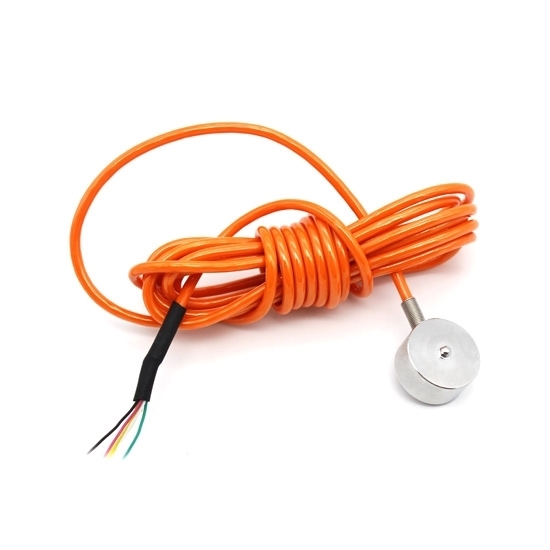

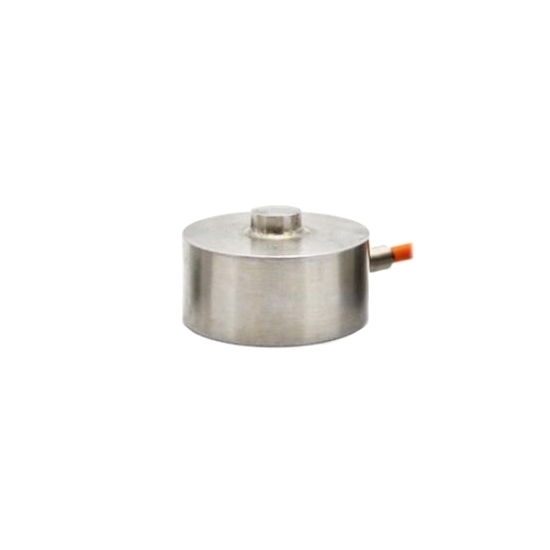

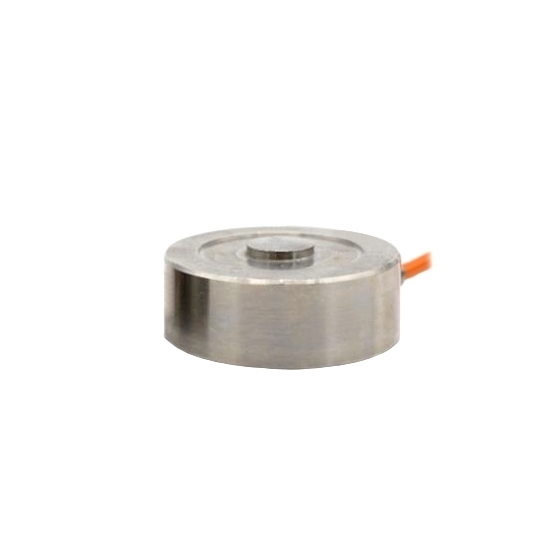

Small Load Cell, Button Type, 5kg/300kg/500kg/1000kg/2 Ton To 5 Ton

0 reviews • Write a review

from

$114.55

Ex Tax: $114.55

Stock: In Stock
Model: RDDLZ-LC-BU05
Weight: 1.00
SKU: RDDLZ-LC-BU05

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA, or RS485.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Small load cells have capacity range from 5kg, 30kg, 100kg, 200kg, 300kg, 500kg, 1000kg, 2 ton to 5 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCBU-DYHW-116
Shipping Weight	1.5kg
Capacity Range *	5kg~5 ton

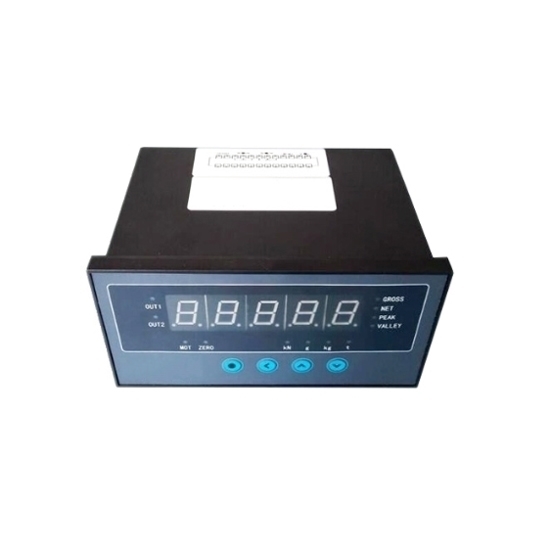

Matched Display Controller	RDDLZ-DDC5-CHB (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.3%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0mV/V (Low range variations may differ)
Creep	±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.1%F.S/10℃
Temperature Effect on Output	±0.1%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	700Ω
Output Impedance	1000Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5-10V
Material	Alloy steel or stainless steel
Protection Class	IP66
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

Compact & Robust: Versatile, space-saving design with durable 17-4 PH stainless steel for seamless integration and lasting strength.
High Accuracy: Ensures precise and consistent measurements with a reliable sensing chip.
Reliable Performance: Engineered to endure harsh conditions while maintaining stability and longevity.
Effortless Installation: Quick setup with high-quality wiring for secure and reliable signal transmission.

Dimension

Capacity	Dimension (mm)
Capacity	ΦA	ΦC	ΦD	H	E	M	H1	SR
5~200kg	20	2.5	15.5	12	10	M3	2.7	2
300~1000kg	26	5	18.5	15	11.5	M4	3.5	6
2 ton	30	6	20	18	14	M4	3.5	15
3-5 ton	37.7	10.8	31	15.5	14	M2.5	3.5	50

Wiring Method

Application

Tips: What happens if a small button load cell is overloaded?

Overloading beyond the rated capacity can cause:

Permanent deformation of the sensing element.
Reduced accuracy due to strain gauge damage.
Complete failure if the load cell structure is compromised.

To prevent this, choose a load cell with a higher safety factor or integrate overload protection mechanisms.
