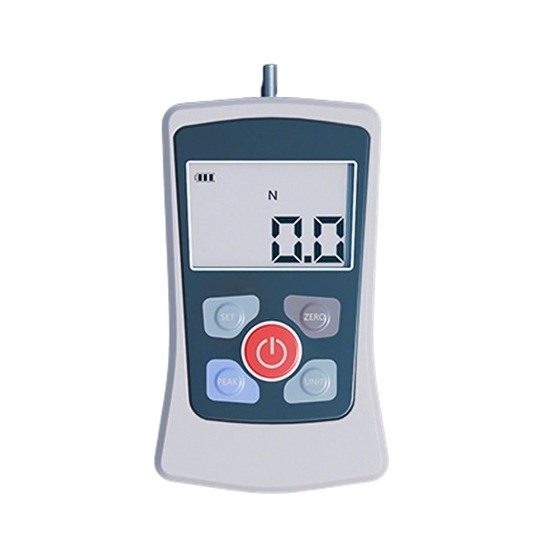

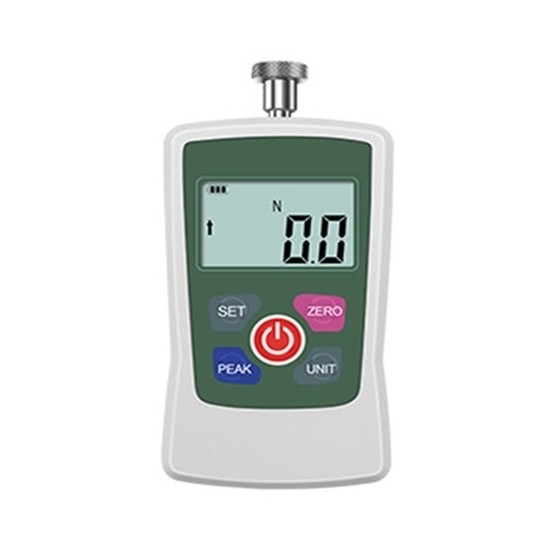

Small Ergonomic Digital Force Gauge, 10N-500N

New

Small Ergonomic Digital Force Gauge, 10N-500N

0 reviews • Write a review

from

$90.88

Ex Tax: $90.88

Stock: In Stock
Model: RDDLZ-FG-ZMF
Weight: 1.00
SKU: RDDLZ-FG-ZMF

Available Options

Capacity

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This mini force gauge offers three measurement modes and four measurement units, available with a variety of measuring ranges, including 0-10 N, 0-20 N, 0-30 N, 0-50 N, 0-100 N, 0-200 N, 0-300 N, and 0-500 N. Its compact design ensures portable use, high accuracy, and features limit alarms with a clear LCD for quick reading.

Specification

Model	RDDLZ-ZMF-10	RDDLZ-ZMF-20	RDDLZ-ZMF-30	RDDLZ-ZMF-50	RDDLZ-ZMF-100	RDDLZ-ZMF-200	RDDLZ-ZMF-300	RDDLZ-ZMF-500
Capacity	10 N	20 N	30 N	50 N	100 N	200 N	300 N	500 N
	1 KG	2 KG	3 KG	5 KG	10 KG	200 KG	300 KG	500 KG
	2.2 LB	3 LB	6.5 LB	11 LB	22 LB	45 LB	65 LB	110 LB
Resolution	0.01 N / 0.1 N
Accuracy	±1%
Stem Stroke	10 mm
Power Supply	AAA Battery
Battery Life	6 months
Operating Temperature	5°C-35°C
Storage/Transport Temperature	-10°C-60°C
Relative Humidity	15%-80% RH
Weight	0.68 KG

Feature

Four Switchable Units: Newton (N), Kilogram-force (kgf), Pound-force (lbf), Ounce-force (ozf).
Three operating modes: Real-Time Mode (live reading), Peak Hold Mode (captures max force, shown as "P"), and First Peak Mode (captures initial peak, shown as "P&T").
Intelligent Audible Alarm: Programmable high/low limits with a buzzer alert when exceeded.
Clear LCD Display: The portable digital force gauge provides fast, accurate, and easy-to-read measurements.
Portability: Compact design for easy transport and use.
Ergonomic Design: Comfortable, fatigue-free operation with a contoured grip for extended use.
Interchangeable Probes: The force gauge comes with various attachments for different applications.

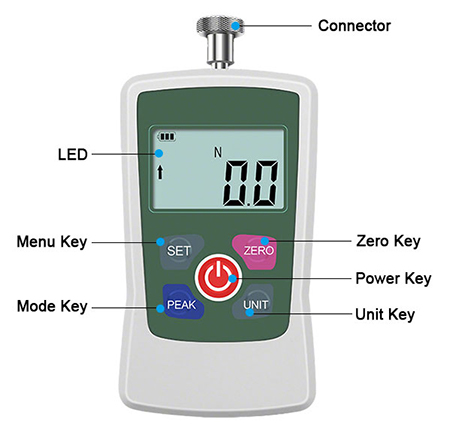

Detail

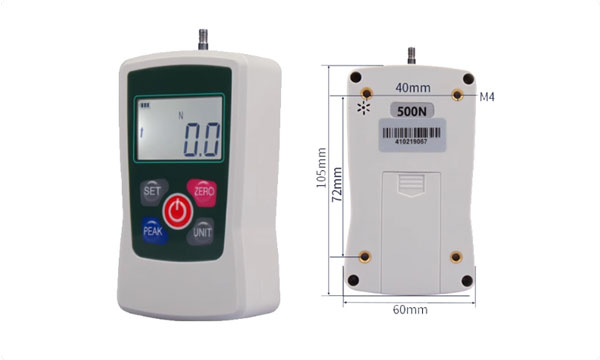

Size (Unit: mm)

Application

Tips: How to use the portable ergonomic digital force gauge?

Measurement Range: Ensure your test force does not exceed 500N, as this may damage the ergonomic digital force gauge.
Zero Calibration: Always press the ZERO button before starting a new measurement for accurate results.
Peak Function: Use the PEAK button to capture and hold the maximum force reading during testing.
Mounting: The force gauge can be handheld or fixed using the M4 screw holes on the back for stable measurements.
Units Switching: Press the UNIT button to toggle between Newton (N), kilogram-force (kgf), or pound-force (lbf).
Battery Care: Recharge the device promptly when the battery indicator shows low power to avoid a sudden shutdown.
Storage: Keep the gauge in a dry, dust-free environment and avoid strong vibrations when not in use.
