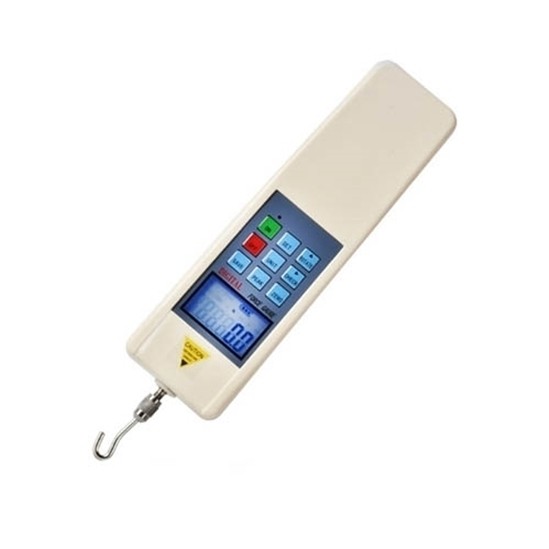

Digital force gauge capacity from 2 kN/ 3 kN/ 4 kN to 2000 kN, equipped with 6-digit large screen display and common SI unit: N (newton), kg (kilogram), lb (pound) can be selected and available for mutual conversion. Force gauge meter with data storage can reach 447 test values. Power supply voltage 100V-240V.

Specification

Details

 Size

Feature

1. Digital force gauge equipped with external sensor and 6 bit big screen high precision high resolution with five test modes, three display modes for selection.
2. Optional unit: N (newton), kg (kilogram), lb (pound) three units of measurement are available for mutual conversion.
3. Force gauge meter gravitational acceleration setting function: the user can input the exact value of the gravitational acceleration of the place of use, making the test and unit conversion more accurate
4. Automatic peak value time can be set freely from 1-9999 seconds. The upper and lower limits can be set for statistical analysis, and the buzzer will alarm by setting the limit range.
5. Digital force meter with data storage function, can store 447 test values. The data can be input into the computer through the data line for various analysis (also applicable to multiple instruments and one computer for various analysis at the same time).
6. Green and environmental protection, automatic shutdown after 10 minutes of no operation, 10 minutes is the default, you can set the automatic shutdown to the required time. When the automatic shutdown time is 0, it will not automatically shut down. High-quality charging power supply with voltage 100V~240V and overload protection function.
7. The digital push pull gauge unique switch contact on-off force test function makes the switch on-off force test more accurate.
8. Low battery detection shutdown, when the battery power is low, it will automatically shut down to prevent inaccurate measurement caused by insufficient power.

Tips: Where does digital force gauge apply?

1. Digital force gauge can be used to test: tension, compression, peeling force, tearing force, adhesive force, bending force, breaking force, welding force, puncture force, opening force, etc.
2. Digital push pull gauge can divided into two types: built-in sensor and external sensor. The built-in sensor has a measuring range of 150kg. The external sensor can be matched with load cells of different sizes (including one-way and double-sound force) according to actual needs.
3. For example, with analog signal or switch signal, 232 or 485 interface, which can be customized according to user needs.
4. It has a multi-purpose function. And it can be combined with various testing machines and fixtures to form high-precision small force measuring machines for different purposes.
