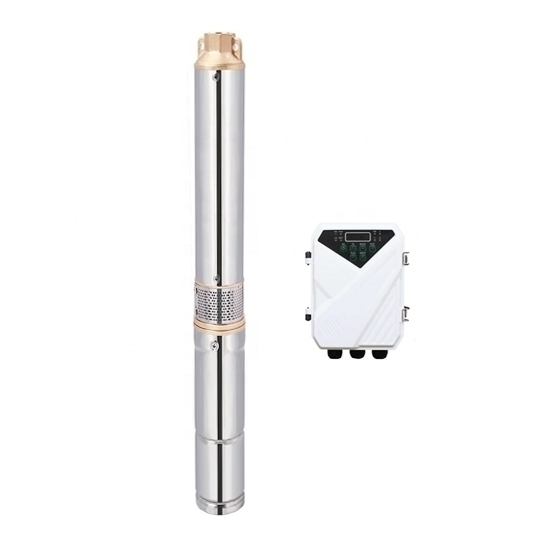

1/2 Hp (400W) Submersible/Deep Water Well Pump, 48V DC
from
$727.27
Ex Tax: $727.27
- Stock: In Stock
- Model: RDDLZ-SWP-48V400
- Weight: 1.00
- SKU: RDDLZ-SWP-48V400
Get a 400-watt deep well pump with 48V working voltage online. The water well pump has 800 ~1000 gph max. flow, 47 ~ 50m max. head. DC controller with LED display shows power, voltage, current and speed values.
Well Pump Features
| Model | RDDLZ-3DPC3-47-48-400 | RDDLZ-3DSC4-50-48-400 |
| Max. flow | 3.0m3/h (800 gph, American system) | 4.0m3/h (1057 gph, American system) |
| Max. head | 47m (154ft) | 50m (164ft) |
| Impeller structure | Single-suction plastic impeller | Single-suction stainless steel impeller |
| Material of outlet/connector/oil cylinder | Brass | Stainless steel |
| Power | 400W (1/2 hp) | |
| Voltage | 48V DC | |
| Length | 60cm | |
| Inlet diameter | 3 inch | |
| Outlet diameter | 1.25 inch | |
| Internal motor | Brushless DC motor | |
| Speed | 4000rpm | |
| Material of shaft | 304 stainless steel | |
| No water protection function | The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later. | |
| Required open circuit voltage (VOC) of solar panel | ＜100V DC | |
| Required power of solar panel | ≥1.3*pump power | |
| Efficiency | 45% | |
| Warranty | 2 years | |
| Cable length | 2m | |
Controller Features
| Model | DF-24 |
| Best MPPT voltage range | 30-48V DC |
| Max. input current | 15A |
| Working temperature | -15~+60℃ (5~140℉) |
| Display | LED display can show power, voltage, current and speed value. |
| Functions | Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection |
| Protection class | IP65 |
Package included
- 1 * Water well pump with 2m cable
- 1 * DC controller
- 1 * Stainless steel float switch (water level sensor for the tank)
- 1 * Pump outlet joint connector
- 1 * Splice kit for cable join
- 1 * Splice kit for waterproof
- 1 * User manual
1/2 hp water well pump performance curves

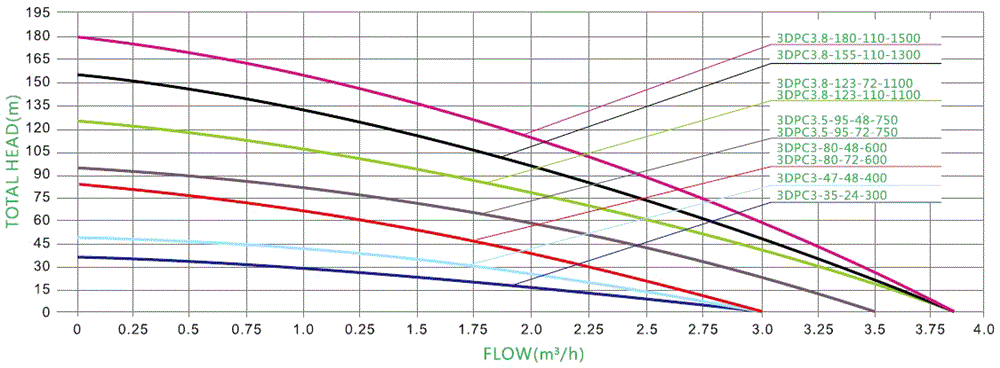

Max. Flow: 3.0m3/h, Max. Head: 47m, Model: 3DPC3-47-48-400

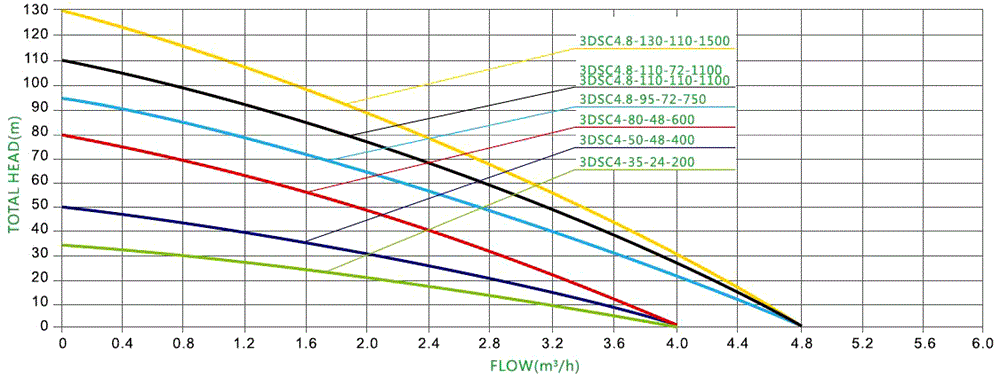

Max. Flow: 4.0m3/h, Max. Head: 50m, Model: 3DSC4-50-48-400
Tips: Protection functions of water well pump and DC controller
- Over-current protection: When the water well pump model is mismatched or UVW three-phase in short-circuit connection.
- Phase protection: UVW three-phase is in an open circuit.
- Stall protection: When the pump model is mismatched. A pump extension cord is too long. Solar water pump power is too low. The pump bearing is stuck.
- Low voltage protection: The input voltage of the solar pump is too low.
- High voltage protection: The input voltage is too high.
- Dry-run protection: Not all of the air in the pump is exhausted. There is no water in the deep well/pond.
- High-temperature protection: The temperature of the DC controller MCU is more than 90℃.
- Reverse connection protection: The wiring is wrong.
