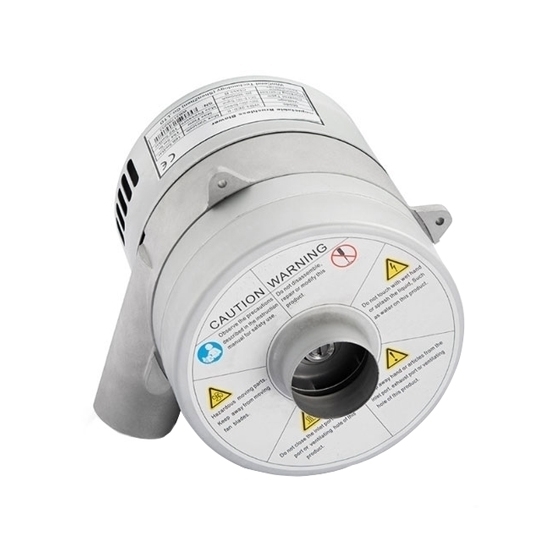

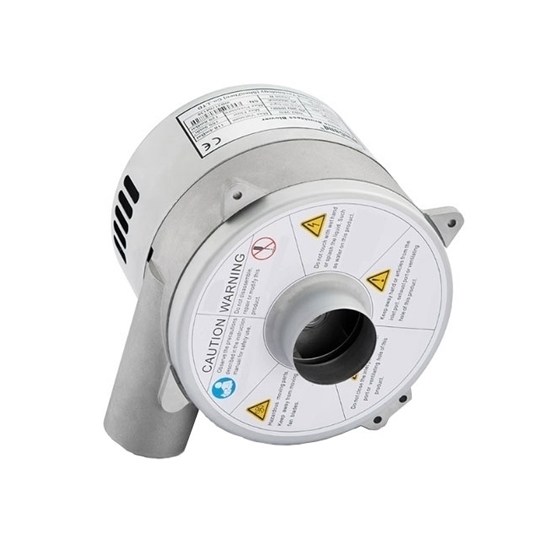

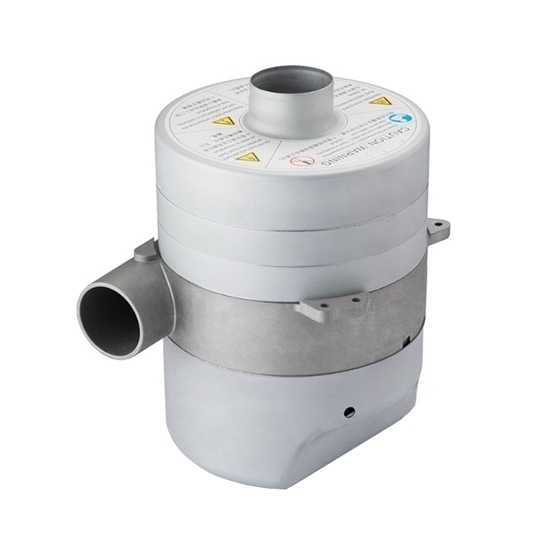

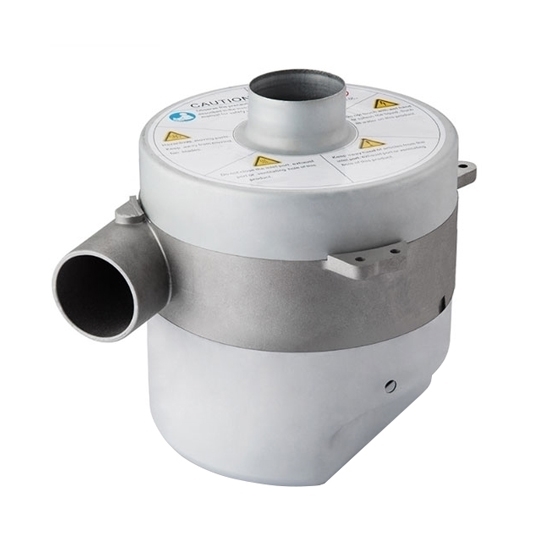

600W Industrial Air Blower, Variable Speed, 110V/220V

0 reviews • Write a review

from

$768.23

Ex Tax: $768.23

Stock: In Stock
Model: RDDLZ-ABL-600
Weight: 1.00
SKU: RDDLZ-ABL-600

Available Options

Input Voltage (V)

Air Volume

Speed Control

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Small and light 600W variable speed blower is designed for air suction and blow with large and steady air volume which can be adjustable by built-in potentiometer, 1.5V-10V, 1.5V-5V, or 4-20mA speed control. It is widely applied for ventilation, dust extraction or cooling of medical equipment, environmentally friendly cleaning, lithium battery equipment, printing and other industrial application fields.

Specification

Model	RDDLZ-WB1-600	RDDLZ-WB2-600	RDDLZ-WB3-600	RDDLZ-WB4-600
Input Voltage *	AC 110V/220V 50/60Hz
Rated Current	3A
Max. Power	600 Watt
Max. Vacuum	98mBar/ 9.8kPa	126mBar/ 12.6kPa	169mBar/ 16.9kPa	210mBar/ 21kPa
Max. Pressure	116mBar/ 11.6kPa	139mBar/ 13.9kPa	190mBar/ 19kPa	235mBar/ 23.5kPa
Max. Air Volume	180m³/h (105 CFM)	153m³/h (90 CFM)	140m³/h (82 CFM)	132m³/h (77 CFM)
Max. Speed	14000r/min
Speed Control *	Built-in potentiometer control, 1.5V-10V voltage control, 1.5V-5V voltage control, 4-20mA current control
Inlet & Outlet Diameter	44.5mm
Weight	2.3kg	2.5kg	3.0kg	3.5kg

DIP Switch Setting

Dimensions (Unit: mm)

RDDLZ-WB1-600
RDDLZ-WB2-600
RDDLZ-WB3-600
RDDLZ-WB4-600

Air Vacuum/ Volume Curve Graph

Tips: Pressure-Flow Characteristic Curve of the Air Blower

Theoretically speaking, the pressure-flow characteristic curve of the air blower is a straight line. However, due to the loss of friction and resistance inside the blower, the actual pressure and flow characteristic curve decline gently with the increase of flow rate, and the corresponding power-flow curve of the blower increases with the increase of flow rate.

When the blower runs at a constant speed, the working point of the blower will move along the pressure-flow characteristic curve. The operating point of the blower depends not only on its own performance, but also on the characteristics of the whole system. When the resistance of the pipe network increases, the pipe performance curve will become steeper. The basic principle of blower regulation is to obtain the desired operating conditions by changing the performance curve of the blower itself or the characteristic curve of the external pipe network.
