Single/3 Phase Bar Fuse Isolator Switch

0 reviews • Write a review

from

$163.38

Ex Tax: $163.38

Stock: In Stock
Model: RDDLZ-FIS-HG2B
Weight: 1.00
SKU: RDDLZ-FIS-HG2B

Available Options

Rated Thermal Current

Break Mode

Fuse

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

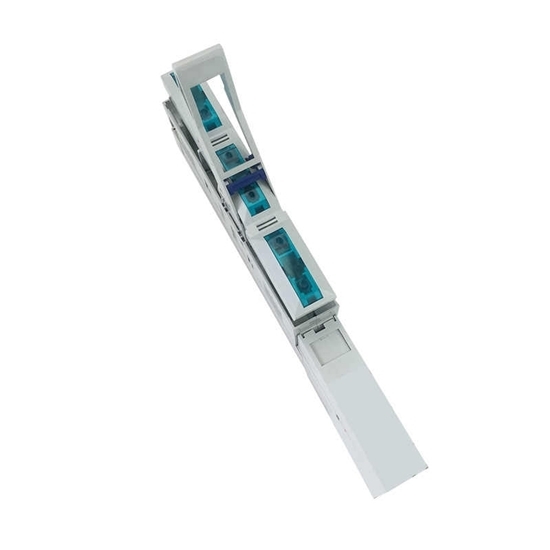

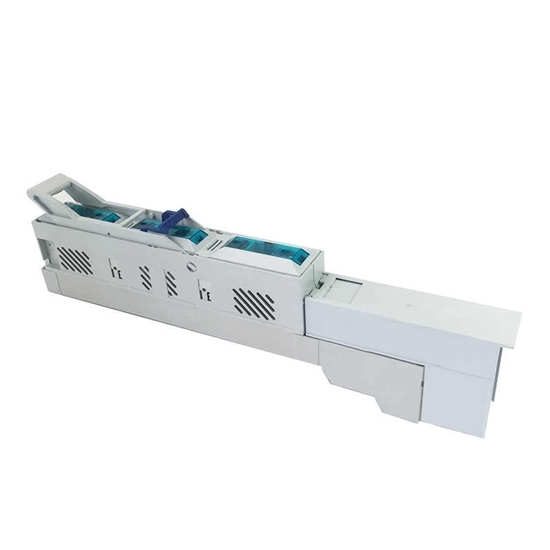

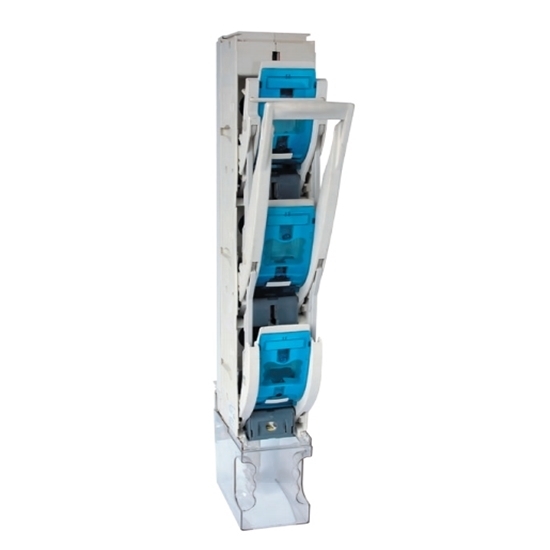

Fuse isolator switch structure is simple, easy to install and disassemble. The base, handle, and arc extinguishing cover are made of arc-resistant plastic, which has good mechanical strength, flame retardancy and dielectric properties. The bar switch can be inserted into fuse body as a moving contact, or it can be directly used as a isolator switch with a blade.

Specification

Model	RDDLZ-FIS-HG2B
Rated Thermal Current (Ith)	160A	250A	400A	630A
Rated Isolation Voltage (Ui)	690V
Rated Working Voltage	AC 400V/660V
Rated Frequency	50Hz
Rated Working Current (400V/AC-23B)	160A	250A	400A	630A
Rated Working Current (660V/AC-22B)	100A	200A	315A	425A
Rated Making Capacity (Ar.m.s)	10Ie
Rated Breaking Capacity (Ar.m.s)	8Ie
Rated Limited Short-Circuit Current	50kA
Certification	CE
Mechanical Life (times)	3000	2000	1000	1000
Electrical Life (times)	600	400	200	200
Consumption Power	12W	24W	34W	48W

Matching Relationship of Switch and Fuse

Rated Thermal Current	Fuse Size	Fuse Rated Current (A)
160A	NT100	32, 63, 80, 100, 125, 160
250A	NT3	200, 250
400A	NT3	315, 355, 400
630A	NT3	425, 500, 630

160A Isolator Switch Installation Dimension (mm)

Rated Thermal Current	Phase	A	B	C	D	h	a
160A	3-Phase	448	49	120	205	50	100
160A	Single Phase	650	49	150	230	90	185

250/400/630A Isolator Switch Installation Dimension (mm)

Rated Thermal Current	Phase	A	B	C	D	h	a
250A/400A/630A	3-Phase	764	98	195	457	105	185
250A/400A/630A	Single Phase	764	98	195	300	105	185

Tips: Fuse isolator switch structure features.

Fuse isolator switch is mainly composed of base, handle, arc extinguishing cover and other parts.
Three sets of static contacts are directly installed on the base, and fuse body is installed in the handle to directly serve as moving contact blade.
Handle can be opened in a fan-shaped rotation along the fulcrum on base, so that the fuse can be completely pulled out of static contact. The handle can also be easily removed from the base to facilitate switch installation and safe installation/removal of the fuse.
