Signal Isolator, Loop Powered, 4-20mA/0-20mA/0-5V/0-10V

0 reviews • Write a review

from

$122.13

Ex Tax: $122.13

Stock: In Stock
Model: RDDLZ-SIGNI-502E
Weight: 1.00
SKU: RDDLZ-SIGNI-502E

Available Options

Short Description

Output Signal

Input Signal

Number of Input & Output Channels

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

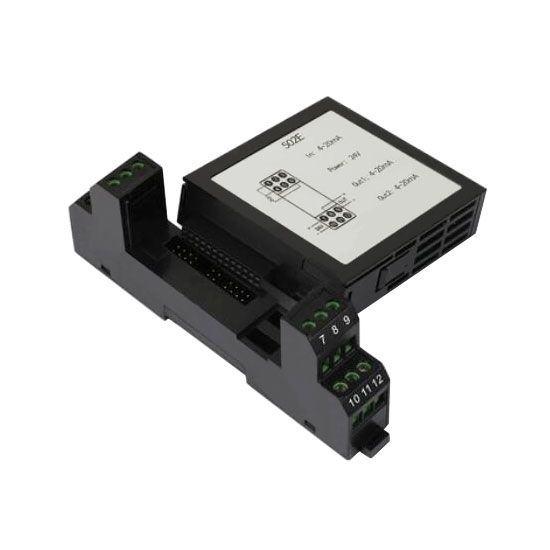

Signal isolator with strong isolation can convert 4-20mA/0-20mA/0-5V/0-10V signal to standard signal or other customized signal.

Specification:

Model	RDDLZ-SINIR-502E
Shipping weight	0.5kg
Dimension	9618122mm
Structure	Pluggable PCB power board and separable isolating circuit module
Type of signal *	4-20mA, 0-20mA, 0-5V, 0-10V
Power supply	DC 24V±10%
Accuracy	0.1%FS
Number of input & output channels *	1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels
Stability	≤0.2%/year
Output load	Current output: 0-350Ω, voltage output: ≥10kΩ
Power supply mode of input signal	Loop powered (switch up), external powered (switch down)
Installation	35mm DIN rail

Dimensional drawing:

Wiring terminal:

Tips: What is external powered signal isolator and loop powered signal isolator?

External powered signal isolator
It need an independent DC 20-35V switching power supply. The signal isolator samples 4-wire current signal and outputs 4-wire current signal after isolation. The advantage of this approach is high accuracy of isolation transmission. Power, input and output are completely isolated. Multi channel system power supply does not need isolation, thus ensuring a high anti-interference performance. The input signal can be converted to other types of signal.
Loop powered signal isolator
In the actual industrial monitoring system, DCS, PLC or other display instruments adopt cards internal power supply, the cards have higher requirement on the signal isolation transmission accuracy, so does the distribution voltage of a 2-wire transmitter. However, the external powered isolator can't meet these conditions. Therefore, the loop powered isolator is selected. Such a signal isolator provides working power supply to the 2-wire transmitter and samples the 2-wire current signal output by the transmitter. It converts the 2-wire current signal to 4-wire current signal after isolation and then output. In this way, it not only retains the superior performance of the external powered signal isolator, but also meets the requirements of the output loop powered interface.
