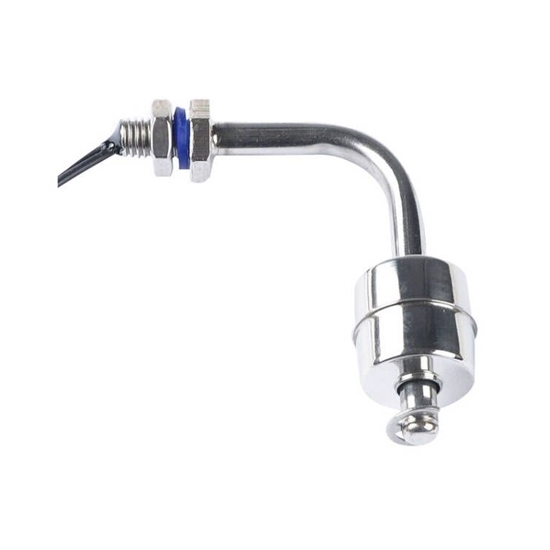

Side Mounted Float Switch, Stainless Steel

0 reviews • Write a review

from

$49.11

Ex Tax: $49.11

Stock: In Stock
Model: RDDLZ-FS-7810
Weight: 1.00
SKU: RDDLZ-FS-7810

Available Options

Short Description

Power

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price stainless steel float switch is a side-mounted liquid level sensor, 100V/220V AC or DC, 10VA/50VA power, threaded connection, widely used in automobiles, industrial equipment, agricultural equipment and household appliances.

Specifications

Model	RDDLZ-ESC7810-1A1	RDDLZ-ESC7810-2A1
Maximum Power	10VA	50VA
Maximum Switching Voltage	100V AC or DC	220V AC or DC
Maximum Switching Current	0.5A	1.5A
Maximum Breakdown Voltage	110V AC or DC	300V AC or DC
Maximum Load Current	1.0A	3.0A
Maximum Contactor Resistance	100mΩ	100mΩ
Connection Method	Thread (M10*1.5)
Material	304 Stainless Steel
Ambient and Liquid Temperature Range	-30℃~125℃

Dimension (Unit: mm)

Applications

Tips: Why choose a stainless steel float switch?

Stainless steel float switches offer numerous advantages, making them a popular choice in various industrial and residential applications. One key benefit is their exceptional durability and resistance to corrosion. Stainless steel is known for its robustness, making these float switches ideal for harsh environments where exposure to moisture, chemicals, or extreme temperatures is common.

The corrosion-resistant nature of stainless steel ensures a longer lifespan for the float switch, reducing maintenance costs and enhancing overall reliability. Additionally, stainless steel float switches are suitable for use in liquids with different properties, including corrosive substances, without compromising performance.

Another noteworthy feature is their versatility. Stainless steel float switches can be used in a wide range of applications, from monitoring liquid levels in industrial tanks to controlling pumps in sewage systems. The material's adaptability makes these float switches compatible with various liquids, providing flexibility in application.

In summary, the choice of a stainless steel float switch is justified by its durability, corrosion resistance, and versatility, making it a reliable and long-lasting solution for liquid level sensing and control in diverse settings.
