Shear Beam Load Cell, 1 Ton/2 Ton/5 Ton/10 Ton/20 Ton To 30 Ton

0 reviews • Write a review

from

$357.14

Ex Tax: $357.14

Stock: In Stock
Model: RDDLZ-LC-SB02
Weight: 1.00
SKU: RDDLZ-LC-SB02

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

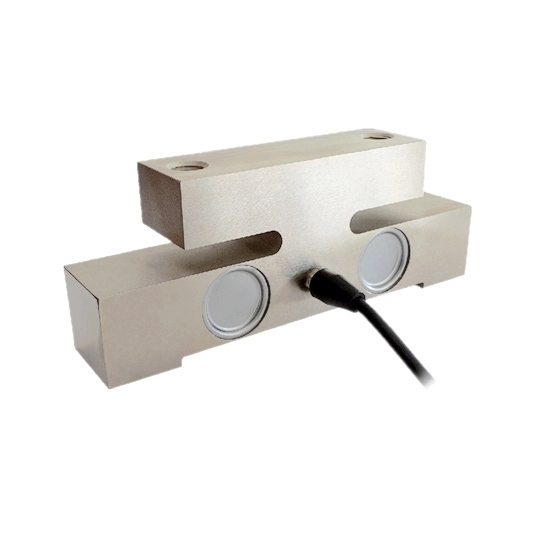

Shear beam load cells have capacity range from 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 20 ton to 30 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCB-TJH-6C
Shipping weight	1.1~5kg
Capacity range *	1 ton~30 ton

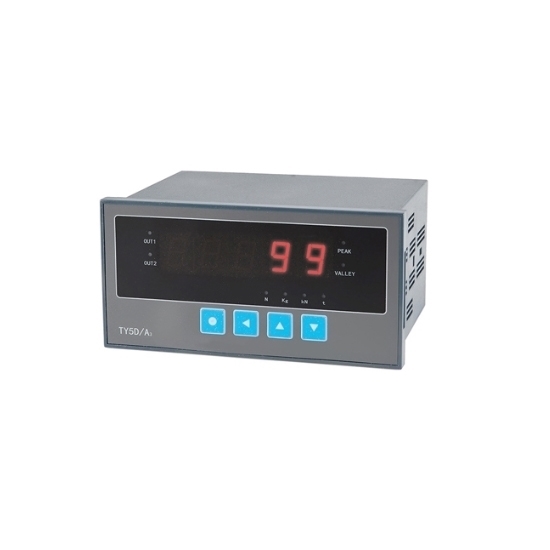

Matched display controller	RDDLZ-TY5DA3 (Click it to the controller page)

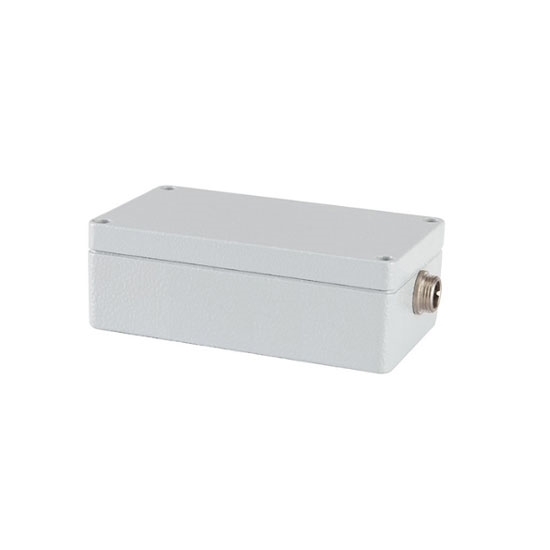

Matched transmitter	RDDLZ-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.02~0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.02%F.S/10℃
Temperature effect on output	±0.02%F.S/10℃
Operating temperature	-20℃~+65℃ (-4℉~+149℉)
Input impedance	750±15Ω
Output impedance	700±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

High-Quality 42CrMo Alloy Steel Construction: Made with durable 42CrMo alloy steel, known for its high strength, low deformation, and excellent fatigue resistance, ensuring long-lasting performance.
Wide Load Capacity Range: Available in capacities from 1 ton to 30 tons, making it suitable for various industrial applications.
Versatile Application: Ideal for use in weighing systems, load testing, and control systems across industries such as heavy equipment, water treatment, and material handling.
Excellent Stability: Features a bridge structure that ensures high stability and precision for accurate load measurement in demanding conditions.
Wide Compatibility: Perfect for truck scales, railway weighbridges, and other industrial scale systems, offering reliability and accuracy in diverse environments.

Shear beam load cell dimension (*bottom plate need to be purchased separately)

Capacity	Dimension (mm)
Capacity	A	B	C	D	E	F	G	H1	H2	Φ	M
1~5 ton	220	140	110	186	45	70	100	25	110	Φ13	M16
10 ton	240	180	120	192	50	128	180	41	134	Φ22	M20
20~30 ton	240	180	120	192	56	128	180	41	143	Φ22	M20

Application

Tips: What is a Shear Beam Load Cell?

A Shear Beam Load Cell is a type of load cell designed to measure shear force when weight or load is applied. It uses strain gauges to detect the deformation of a shear beam under load, converting this deformation into an electrical signal that can be measured to determine the force or weight.
