SMA Female RF Coaxial Connector, PCB Edge Mount

0 reviews • Write a review

from

$51.49

Ex Tax: $51.49

Stock: In Stock
Model: RDDLZ-FFCC-EDGE
Weight: 1.00
SKU: RDDLZ-FFCC-EDGE

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

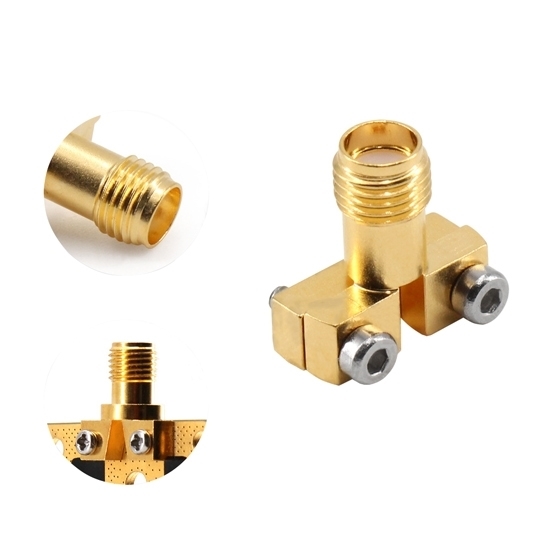

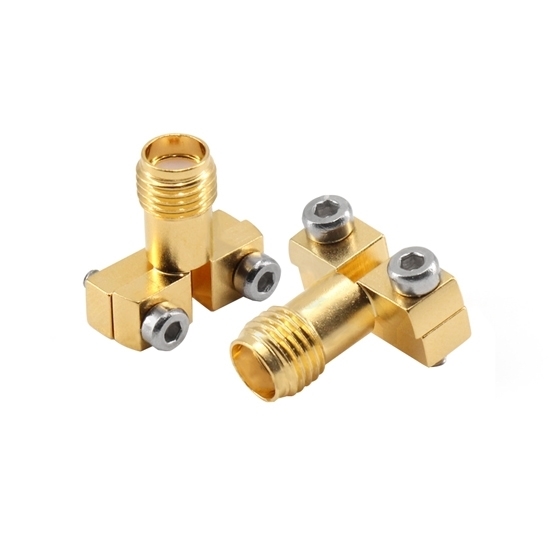

SMA female (jack) RF coaxial connector plays a pivotal role in connecting the antenna to devices in TV aerial setups. The Type K coax connector offers a PCB edge mount configuration, ensuring adaptability to different installation requirements.

Specification

Model: RDDLZ-SMA-KCD47-2TD
Frequency Range: DC~26.5GHz
Standing Wave Ratio (VSWR): 1.25:1 (Max.)
Impedance: 50 Ohm
Insertion Loss: 0.20dB (Max.)
Dielectric Withstand Voltage: 1000V
Insulation Resistance: ≥5000 Ohm
Connector Type A: SMA-Female
Connector Type B: PCB Board (Printed Circuit Board) Edge Mount
Working Temperature: -55℃~+165℃
Inner Conductor Material: Gold Plated Beryllium Bronze
Outer Conductor Material: Gold Plated Brass
Insulator: PTFE
Service Life: ≥500

Dimension (Unit: mm)

Tips: What is impedance in the context of RF connectors?

In the context of RF connectors, impedance refers to the resistance exhibited by the connector to the flow of alternating current (AC) signals at radio frequencies. It is a crucial parameter for maintaining signal integrity and minimizing signal reflections in RF transmission lines. Standard impedance values for RF connectors are typically 50 ohms or 75 ohms, with 50 ohms being more common in applications like telecommunications and radio frequency design.

Matching the impedance between connected components, such as antennas, cables, and devices, is vital to prevent signal degradation and loss. Mismatched impedance can lead to signal reflections, resulting in poor performance and reduced signal quality. Therefore, RF connectors are designed with specific impedance characteristics to ensure optimal signal transmission and minimize signal distortions in electronic communication systems.
