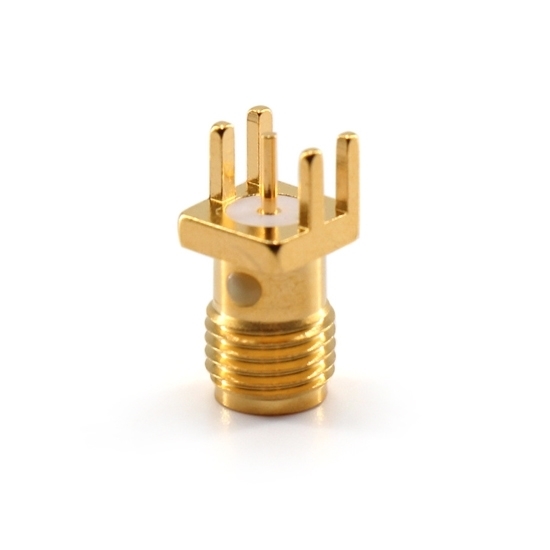

SMA Female 4 Pin RF Coaxial Connector, PCB Mount

SMA Female 4 Pin RF Coaxial Connector, PCB Mount
SMA Female 4 Pin RF Coaxial Connector, PCB Mount
0 reviews • Write a review
from
$45.69
Ex Tax: $45.69
  • Stock: In Stock
  • Model: RDDLZ-FFCC-4PIN
  • Weight: 1.00
  • SKU: RDDLZ-FFCC-4PIN

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

SMA female (jack) RF coaxial connector is frequently employed in TV antenna. Edge mount and 4 pin options offer flexibility in PCB circuit board applications. With a versatile design, the RF coax connector ensures seamless signal transmission in electronic communication systems, making it an integral component in modern connectivity solutions.

Specification

  • Model: RDDLZ-SMA-KCD01-TD
  • Frequency Range: DC~18GHz
  • Standing Wave Ratio (VSWR): 1.25:1 (Max.)
  • Impedance: 50 Ohm
  • Insertion Loss: 0.20dB (Max.)
  • Dielectric Withstand Voltage: 1000V
  • Insulation Resistance: ≥5000 Ohm
  • Connector Type A: SMA-Female
  • Connector Type B: PCB Board (Printed Circuit Board)
  • Working Temperature: -55℃~+165℃
  • Inner Conductor Material: Gold Plated Bronze
  • Outer Conductor Material: Gold Plated Brass
  • Insulator: PTFE
  • Service Life: ≥500

Dimension (Unit: mm)

Tips: How do you properly install an RF coaxial connector?

To properly install an RF coaxial connector, begin by selecting the appropriate connector type for your application, ensuring it matches the cable specifications. Strip the cable's outer insulation carefully using a coaxial cable stripper, exposing the inner conductor and insulator. Trim the inner conductor to the required length, considering the connector's design. Slide the connector onto the prepared cable, ensuring a snug fit, and screw it on until securely attached. Make certain the braid engages with the connector to provide proper grounding. Tighten any additional components like nuts or sleeves, avoiding over-tightening. Conduct continuity and insulation tests to verify the connection's integrity. Finally, use heat shrink tubing or other insulation methods to protect the connection from environmental factors. Adhering to these steps ensures a reliable RF coaxial connection for optimal signal transmission.
