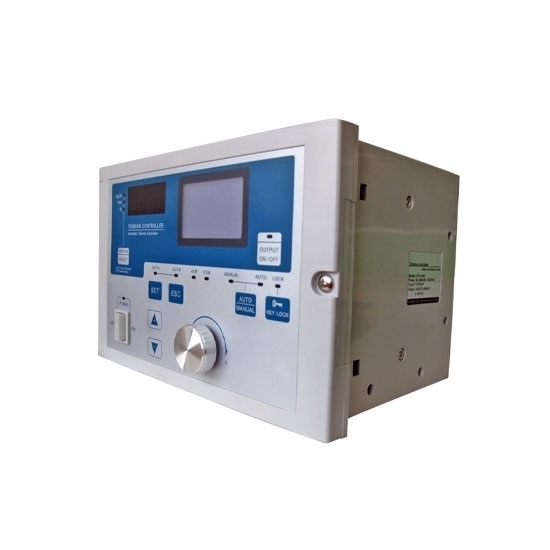

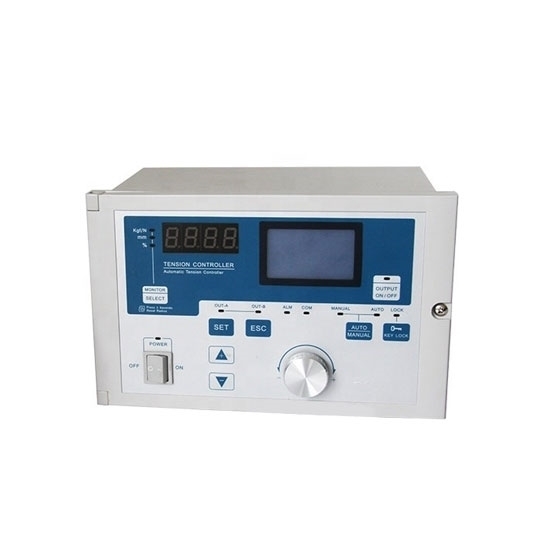

Automatic roll tension controller, semi-automatic control, dual 24V/4A output, can directly drive two magnetic powder clutches/brakes, LCD display, easy operation.

Specification:

Details

Feature

1. Multi-function control, automatic tension control, with difficulty tension control function.
2. Liquid crystal display, using high-precision D/A converter, the output accuracy is as high as 0.1%.
3. Roll tension controller can directly start the magnetic powder clutch and brake, and also control the vfd and servo motor.
4. Can accept single or dual sensor input signals, automatic zero adjustment and automatic calibration.
5. Optional serial communication function, RS485 communication interface.
6. With dual-axis switching and acceleration/deceleration control functions.
7. Roll tension controller has password function, which can avoid changing the setting parameters during operation.
8. Roll tension controller With storage box, you can backup various parameters.

Installation Dimension (Unit=mm)

RDDLZ-TC858B Wiring Diagram
Roll Diameter Tension Controller Application Examples


Tips: What is a tension control system？

The tension control system is often a system integration of tension sensor and tension controller. Currently it is mainly used in metallurgy, papermaking, film, dyeing and finishing, weaving, plastic, wire and other equipment. Automatic control system, its role is mainly to achieve synchronization between the rolls, winding and unwinding uniform control.
