Digital Manual Tension Controller For Magnetic Particle Clutch/Brake

0 reviews • Write a review

from

$234.98

Ex Tax: $234.98

Stock: In Stock
Model: RDDLZ-TC-002
Weight: 1.00
SKU: RDDLZ-TC-002

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy online tension controller for magnetic powder clutch/brake, output voltage 24V DC, input power supply AC85V~264V, with pulse width modulation switching type adjustment system, stable performance, support floor, wall, inlay installation, ideal for paper, printing, textile industry.

Specification:

Model: RDDLZ-STC-002
Input Power Supply: AC85V-264V 50/60Hz
Output Voltage: 0-4.00AMAX DC24V
Operating Temperature: 0-40°C
Working Humidity: 35~85%RH (no condensation)
Working Environment: non-corrosive, non-flammable gas, non-conductive dust, less dust
Vibration Resistance: 10~50Hz 0.55mm (maximum 4.9m/s)
Grounding: Class D grounding (no common grounding with strong electric wires)
Weight: About 1kg

Details

Feature

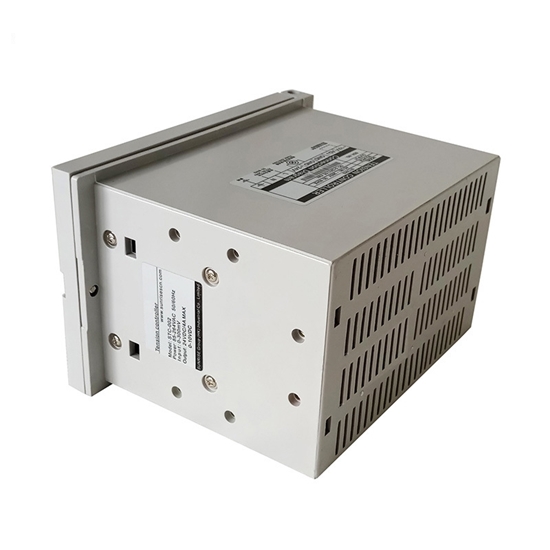

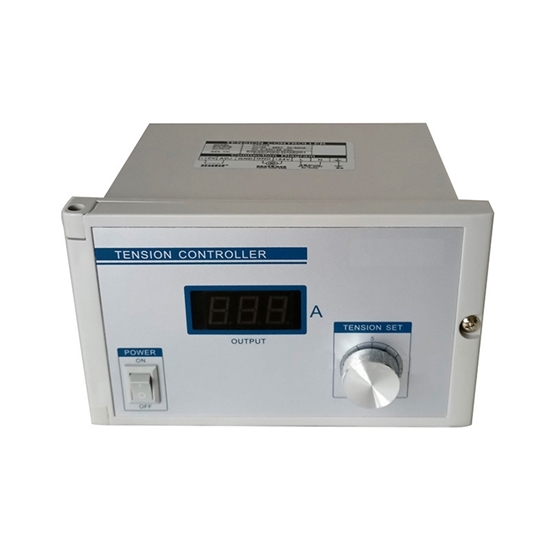

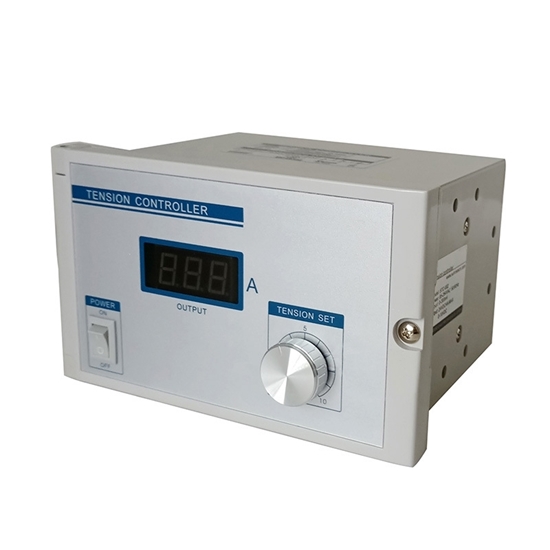

RDDLZ-TC-002 manual tension controller adopts a highly adaptable switching power supply, which is beautiful and elegant, and the display is intuitive and clear.
PWM switching regulation system, stable performance, and high cost performance
Overload and short circuit protection, and external signal control 0~l0VDC
Input power: AC85V~264V 50/60Hz
Outputs: 0~4.00AMAX DC24V
Manual tension controller Applicable models: Magnetic powder clutch/brake
Suitable for a variety of installation methods: floor-standing, wall-mounted, mosaic

Installation Dimension (Unit=mm)

Application

Tips: How does manual tension control work?

A manual tension controller is used to manually adjust the excitation current of the clutch and brake periodically as the reel diameter changes during the "winding and unwinding" process to achieve tension control. The manual tension controller can be programmed to control the clutch/brake excitation current in programmable D/A and other machines, and input 0~10v to the manual tension controller for automatic control.
