Ring Torsion Compression Load Cell, IP68, 1 Ton-150 Ton

0 reviews • Write a review

from

$259.99

Ex Tax: $259.99

Stock: In Stock
Model: RDDLZ-LC-RTC150
Weight: 1.00
SKU: RDDLZ-LC-RTC150

Available Options

Measuring Range

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

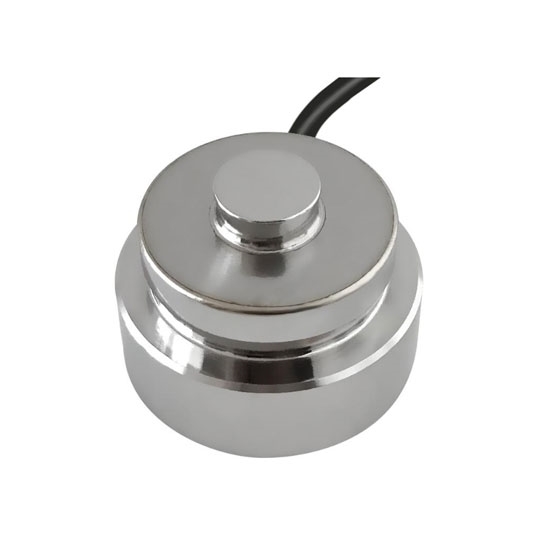

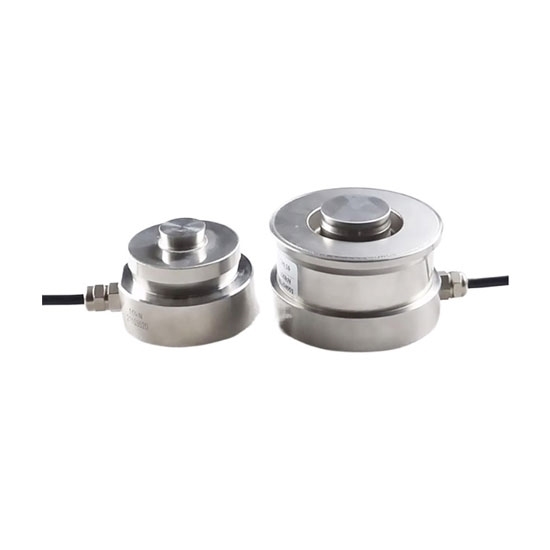

Ring torsion compression load cells with measuring capacities ranging from 1 to 150 tons. These load cells has a sensitivity of 2.85mV/V, exceptional accuracy from 0.05% to 0.1% FS, and maintain a creep specification of ±0.05% FS over 10°C with a zero balance at ±1% FS. Ideal for precise force measurement in truck scales, tank and silo weighing, and industrial automation systems.

Specification

Model	RDDLZ-NTJH-16
Measuring Range	0-150 ton (10~1500 kN)
Comprehensive Accuracy	0.05~0.1%FS

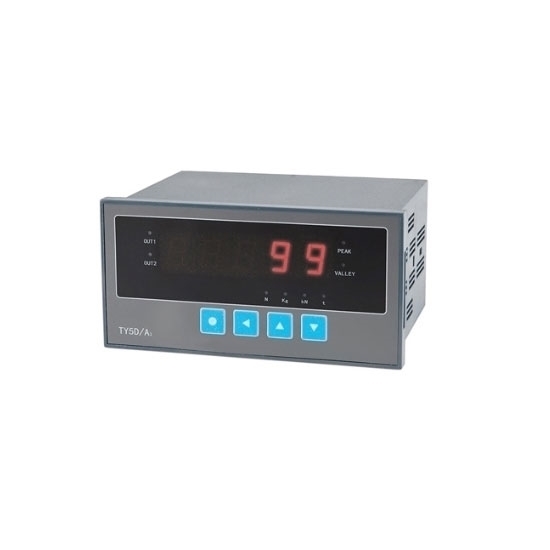

Matched Display Controller	RDDLZ-TY5DA3 (Click it to the controller page)

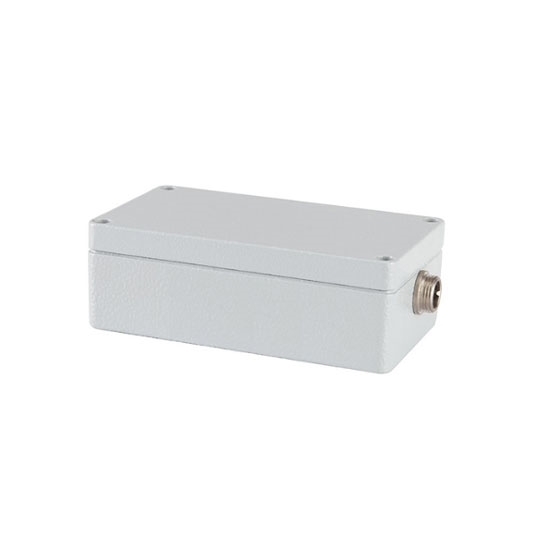

Matched Transmitter	RDDLZ-LCTR-NTB3K (Click it to the transmitter page)
Sensitivity	2.85 mV/V
Creep	±0.05%FS/30 min
Zero Output	±1%FS
Bridge Supply Voltage	Recommended 10V DC
Zero Temperature Effect	±0.05%FS/10°C
Output Temperature Effect	±0.05%FS/10°C
Operating Temperature	-20°C~+65°C
Input Impedance	4450±200Ω
Output Impedance	4000±10Ω
Insulation Resistance	>5000MΩ
Safe Overload	150%FS
Material	Stainless Steel

Feature

Material and Design: The torsion ring load cell is made of stainless steel, featuring a compact size, high resistance to overloads, a wide range, high sensitivity, high accuracy, and good resistance to partial loads.
Energy Efficiency: High impedance and low power consumption make it ideal for battery-powered measurement units.
Versatile Applications: Load cell weight sensor suitable for various weighing equipment, including electronic balances and pressure testers.
Signal Stability: Provides stable output with a stable signal and strong anti-interference ability.
Ease of Installation: Advanced grinding technology ensures easy installation and precise leveling.

Dimension (unit: mm)

Range		Size
kN	Ton	ØA (mm)	ØB (mm)	ØC (mm)	H (mm)	J (mm)	K (mm)	Distance L
10	1	48.9	20	60	43	-	8	10m
22	2	48.9	20	60	43	-	8	10m
47	4.7	48.9	20	60	43	-	8	10m
100	10	75	30	75	50	7.6	6.5	10m
150	15	75	30	75	50	7.6	6.5	10m
220	22	75	30	75	50	7.6	6.5	10m
330	33	95	40	95	65	7.6	10	10m
470	47	130	60	130	75	7.6	14	10m
680	68	130	60	130	75	7.6	14	10m
1000	100	150	70	150	90	7.6	16	10m
1500	150	150	70	150	100	7.6	16	10m

Wiring Method

Application

The ring torsion compression load cell is used in truck scales, tank and silo weighing, and industrial automation systems.

Tips: What is the significance of the high input impedance in ring torsion compression load cell?

Answer: High input impedance reduces power consumption and enhances signal stability, making the load cell more suitable for battery-powered applications. It also minimizes the impact of long cable runs, reducing signal loss and improving measurement accuracy in large industrial setups.
