Resistance Decade Box, 1 To 11111110 Ohm

0 reviews • Write a review

from

$298.46

Ex Tax: $298.46

Stock: In Stock
Model: RDDLZ-RDB
Weight: 1.00
SKU: RDDLZ-RDB

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

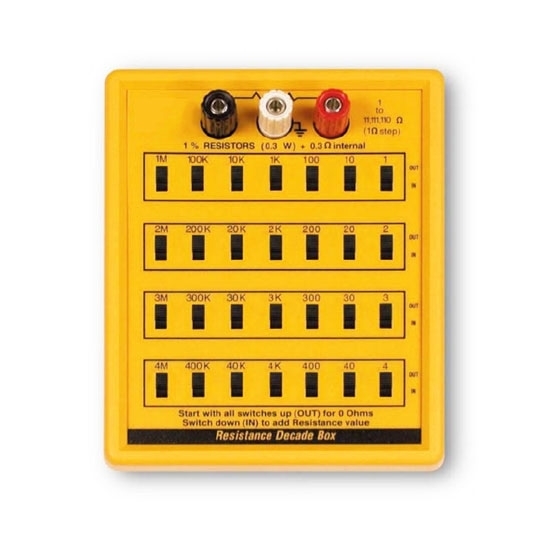

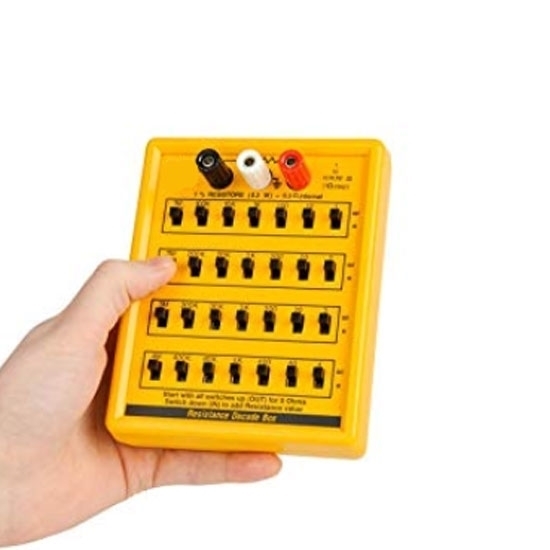

Decade resistance box for sale, 1 ohm per step, the decade box has seven different decade range resistors, with 1% resistance to replace Ω from 1 to 11111110, easy to use, strong shell and long service life.

Note: Operation Procedure
1. Start with all switches up ( OUT ) for minimum capacitance.
2. Switch down ( IN ) to add Capacitance value.
Specification:

Model	RDDLZ-RDB
Range	1 to 11,111, 110 ohm ( 1 ohm per step )
Accuracy	1% Resistors used throughout
Wattage	1W
Voltage Limit	50 V DC, non-polarized capacitors
Internal Residual Capacitance	About 50 Pf
Operating Temperature	0 to 50 ℃ (32 to 122 ℉)
Operating Humidity	Less than 80% RH
Dimension	14711755mm, (5.794.612.16 inch)
Weight	304 g, (0.69 lb)
Certification	ISO-9001, IEC1010

Tips: Advantages of resistance boxes

The resistance box can indicate the resistance value of the connected circuit, and can gradually change the resistance of the connected circuit. When a current passes through a resistive element, heat is generated, and the thermal reaction causes mechanical changes in each material of the device to expand or contract. Ambient temperature conditions will produce the same results. Therefore, the ideal resistance element should be able to self-balance based on these natural phenomena, maintain physical consistency during resistance processing, and avoid the need for thermal or stress compensation during use, thereby improving system stability.
