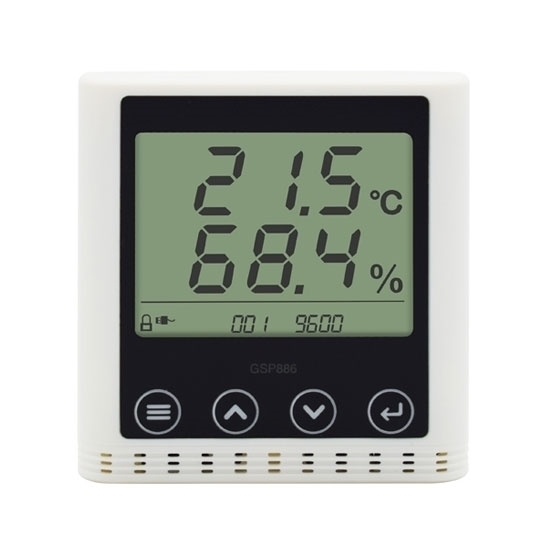

Remote Temp & Humidity Sensor/Transmitter, Digital LCD, RS485

0 reviews • Write a review

from

$115.24

Ex Tax: $115.24

Stock: In Stock
Model: RDDLZ-TAHT-GSP886
Weight: 1.00
SKU: RDDLZ-TAHT-GSP886

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Temperature and humidity transmitter built-in alarm module, RS485 output signal, LCD display.

Application: Transmitter is widely used for temperature and humidity measurement and control in building automation, HVAC system, storage, transportation, pharmacy and machine room.
Specification:

Model	RDDLZ-TAHT-GSP886/GSP885
Weight	150g
Dimension (LWH)	9510126.5mm
Output signal	RS485
Communication protocol	MODBUS RTU
Supply voltage	DC 9-36V/USB 5V
Measuring range of relative humidity	1~99.9%RH
Measuring range of temperature	-20~+60℃
Accuracy of humidity	±2%RH
Accuracy of temperature	±0.3℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.1%RH/year, ＜0.1℃/year
Current consumption	≤20mA
Sampling period	2s
Housing material	Engineering plastics
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~60℃, humidity: ＜90%RH
Wiring	White: RS485 B-, black: GND, red: V+, yellow: RS485 A+, grey: relay output AR, brown: relay output

Dimensional drawing (unit: mm):

Wiring diagram:

Details

Tips: Wireless temperature and humidity remote monitoring system
Wireless temperature and humidity remote monitoring system has a simple hardware structure. A wireless temperature and humidity sensor adopts battery for power supply and it can be placed in any position by needs without wiring. The temperature and humidity data are transmitted to the monitoring center through wireless communication. Wireless temperature and humidity monitoring system can monitor a large area of multi points temperature and humidity, collects the temperature and humidity data in real time, manages data and records the data. The monitoring operator can monitor the temperature and humidity conditions and changes in real time anywhere in LAN or WAN, so as to ensure the safe operation of important equipment. Automatic monitoring software can also be used to set alarm settings on web or client, to realize the mail alarm, message alarm, telephone alarm, real person voice alarm, etc.
