RTD Sensor, Pt100, Sheath, 3 Wire

0 reviews • Write a review

from

$79.96

Ex Tax: $79.96

Stock: In Stock
Model: RDDLZ-RTD-S3W
Weight: 1.00
SKU: RDDLZ-RTD-S3W

Available Options

Sheath Size

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

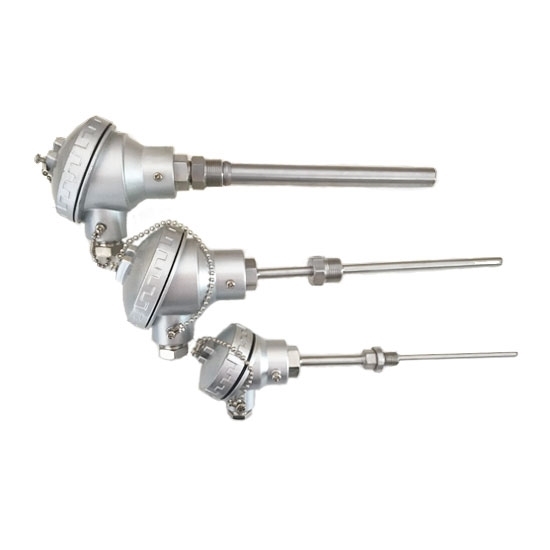

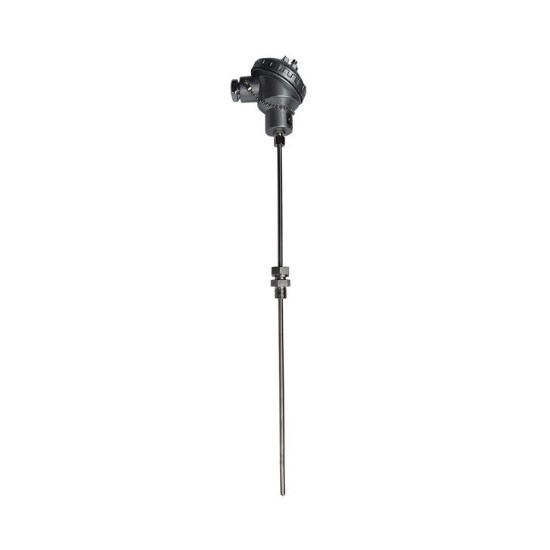

RTD (resistance temperature detector) sensor can directly connect to secondary instrument by copper conductor, and provide accurate input signal of temperature changes for display instruments, recording instruments, signal conditioners, scanister and computer.

Specification

1. RTD temperature range and accuracy chart

Type of sensing element	Measuring range	Allowable deviation Δt
Pt100	-200~420℃	Class B (-200~800℃) Permissible deviation ±(0.30+0.005\|t\|)
Pt100	-200~420℃	Class A (-200~650℃) Permissible deviation ±(0.15+0.002\|t\|)

Note: t is the actual measuring temperature absolute value of the temperature sensing element.
2. Thermal response time of RTD sensor

Sheath diameter (mm)	Thermal response time (s)
Ф3	≤3
Ф4	≤5
Ф5	≤8
Ф6	≤12
Ф8	≤22

Feature

High Precision: RTD sensor uses excellent temperature measuring elements, so it has the advantages of accuracy, sensitivity, fast thermal response time, stable quality and long service life.
Corrosion Resistance: The outer protective sleeve is made of stainless steel and filled with high-density oxide insulators, so it has strong anti-pollution performance and excellent mechanical strength, suitable for installation in harsh environments.
Good Performance: Pt100 RTD sensor can be used to measure temperatures in the range of -200℃~+420℃, and can be directly connected to secondary instruments with copper wires. Because it has good electrical output characteristics, it can provide accurate temperature change input signals for displays, recorders, regulators, scanners, data recorders and computers.

Installation

Installing standard size	Sheath diameter
	Ф8	Ф6	Ф5	(Ф4)	Ф4	Ф3	Ф2
M	M16*1.5				M12*1.5
S	22				19
D	Ф60				Ф50
D0	Ф42				Ф36
D1	Ф24				Ф20
d0	Ф9				Ф7
S	22				19

Connection Mode

Selection

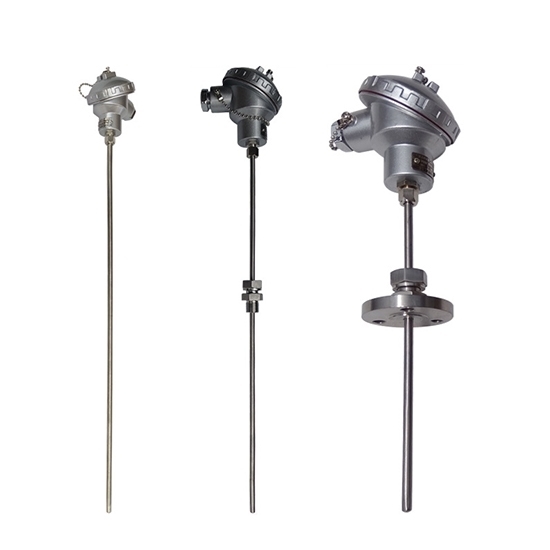

Branch number	Installing form	Mode of connection	Sheath diameter	Sheath length
B1: Single branch; B2: Double branch	I1: No fixed device; I2: Fixed card sets of thread joint; I3: Movable card sets of thread joint; I4: Fixed card sets of flange; I5: Movable card sets of flange	C0: Simple terminals; C3: Standard waterproof protection head; C4: Explosion-proof protection head; C6: Aviation plug; C9: Direct lead 3 wire	D3: Φ3; D4: Φ4; D5: Φ5; D6: Φ6; D8: Φ8	Single branch: 100~1000mm; Double branch: 100~500mm

Application

Tips: Differences between sheath RTD sensor and general thermal resistance

The sheath RTD sensor is the thermal resistance that is soldered and sealed thermistor temperature-sensing element in the sheath wire, which consists of metal casing pipe, insulation material and metal wires. The metal casing material of sheath wire is usually stainless steel. The lead wire is usually copper conductor or silver conductor, and the insulation material is usually magnesium oxide.
There are many characteristics of sheath RTD sensor compared with the general thermal resistance.

The external diameter of thermistor can be small, so its time constant is small and reaction speed is fast.
It has bendability and is suitable for temperature measurement of complex structure and small equipment.
It has good vibration resistance and impact resistance.
It has long service life.
