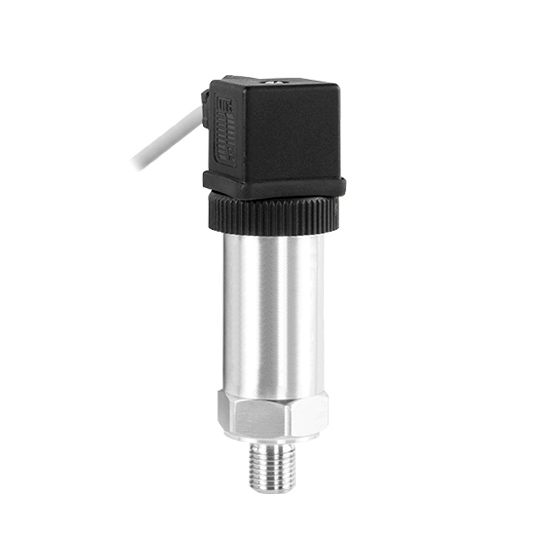

Pressure Sensor For Air/Water/Oil, 4-20mA/RS485/0-5V/0-10V Output

0 reviews • Write a review

from

$119.68

Ex Tax: $119.68

Stock: In Stock
Model: RDDLZ-PRES-P300S
Weight: 1.00
SKU: RDDLZ-PRES-P300S

Available Options

Power Supply

Output Signal

Pressure Type

Measuring Range

Thread of Pressure Connection

Electrical Connection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High performance pressure sensor for sale online. It is available with 0~10kPa, 0~20kPa, 0~50kPa, 0~100kPa, -100~0kPa, and-100~100kPa measuring range, 4-20mA, 0-5V, 1-5V, 0-10V, RS485 output signals, and DC 12V, DC 24V or DC 12-36V power supply, specially used for measuring air, water or oil pressure.

Specifications

Model: RDDLZ-PRES-P300
Measuring Range: 0~10kPa, 0~20kPa, 0~50kPa, 0~100kPa, -100~0kPa, -100~100kPa
Output Signal: 4-20mA, 0-5V, 1-5V, 0-10V, RS485
Accuracy: ±0.5%FS, ±1%FS
Power Supply: DC 12V, DC 24V, DC 12-36V

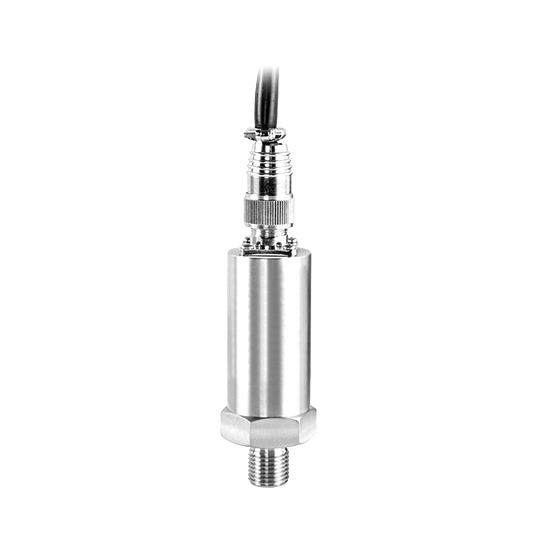

Electrical Connection: DIN Connector Type, Direct Lead Wire Type, M12 Circular Connector Type
Thread of Pressure Connection: G1/4, G1/2, 1/4 NPT, 1/2 NPT, M14*1.5, M20*1.5
Protection Class: IP65
Measuring Medium: Air, Water and Oil (Non-explosion Proof Area)
Pressure Type: Gauge Pressure (Standard), Contact Us for Absolute Pressure and Sealed Pressure Type (Note: The measuring range for these two types must be ≤ 1MPa)
Application: Pressure sensor is widely used in process control, aerospace, automotive, medical equipment, HVAC and other fields.

Pressure Sensor Dimension Drawing (Unit: mm)

Pressure Sensor Wiring Diagram

Tips: What is the output singal of the pressure sensor?

The output signal of a pressure sensor depends on the specific model and configuration, but common types include:

4–20mA: Most common in industrial applications. It is noise-resistant and allows long cable runs.
0–5V/1–5V/0–10V: Voltage outputs are common in general-purpose applications. 0–5V and 1–5V are typical for lower voltage systems. 0–10V provides a wider range but is more sensitive to electrical noise.
RS485 (Modbus RTU): A digital output type used for remote communication and advanced monitoring. Allows multiple sensors on a single bus and can provide more detailed data (e.g., pressure, temperature, diagnostics).
