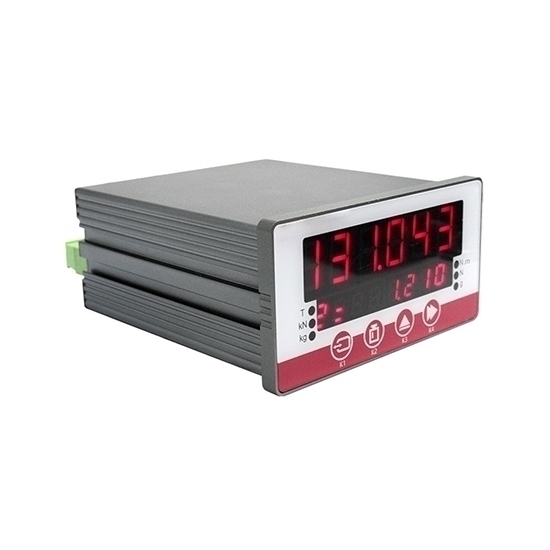

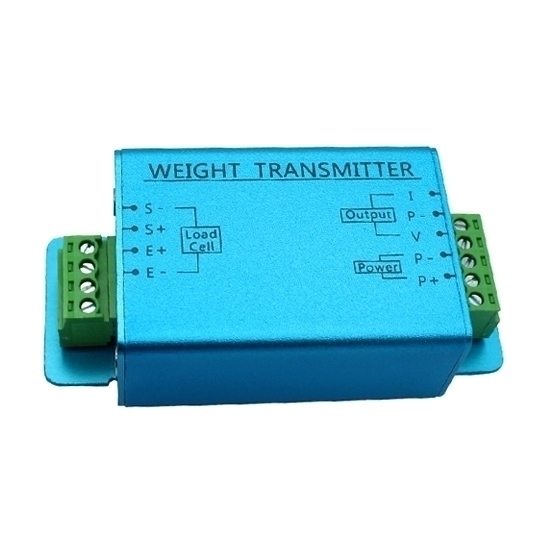

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

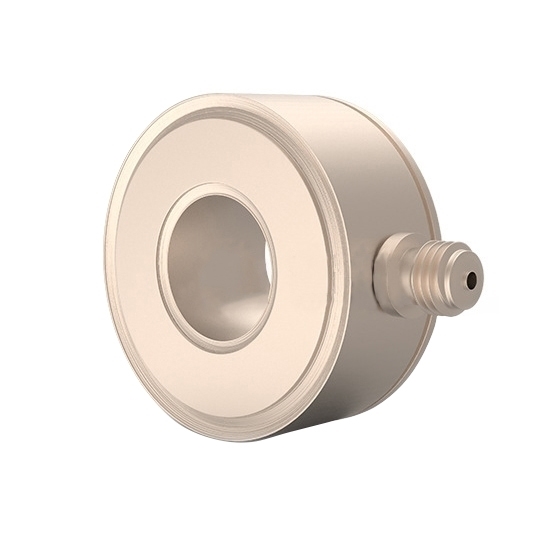

0 to 30000N piezoelectric force sensor is highly sensitive, capable of detecting very small forces, and is typically used in dynamic applications due to its rapid response time.

Specification

Feature

• Precise and Accurate Measurement: Designed for high precision, this sensor ensures stable and accurate force measurement, with a measurement range of up to 30,000N.
• High-Quality Construction: Made from high-strength stainless steel, offering enhanced durability and resistance to wear, ensuring long-lasting use even under heavy loads.
• Superior Sensitivity: Offers precise sensitivity, delivering reliable and consistent results with stable signal output, even in dynamic conditions.
• Elegant Appearance: Features a sleek, polished design with finely processed surfaces, offering both functional and aesthetic appeal.
• Versatile and Robust: Ideal for various industrial applications, including force measurement, load testing, and control systems, with a robust design that can withstand a variety of challenging environments.

Dimension (Unit: mm)

Application

Tips: What is a piezoelectric force sensor?

A piezoelectric force sensor is a device that measures force by utilizing the piezoelectric effect, where certain materials generate an electric charge when mechanically stressed. These sensors are typically made from piezoelectric crystals like quartz. When a force is applied to the sensor, it deforms the crystal structure, generating an electrical charge proportional to the force applied.

These sensors are highly sensitive and can measure dynamic forces over a wide frequency range, making them ideal for applications requiring precise force measurement in rapidly changing environments, such as automotive testing, aerospace, and industrial machinery monitoring. They are especially useful for detecting small forces or short-duration impacts. However, piezoelectric force sensors are less effective for measuring static or slowly changing forces due to charge leakage over time.
