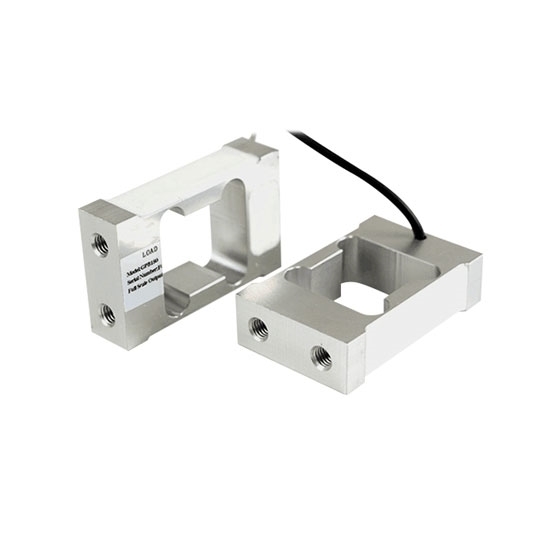

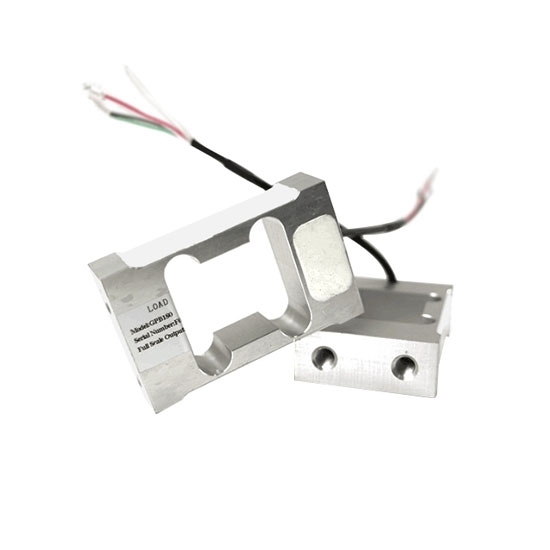

Parallel Beam Load Cell, Single Point, 4kg/8kg/10kg/15kg To 30kg

0 reviews • Write a review

from

$94.99

Ex Tax: $94.99

Stock: In Stock
Model: RDDLZ-LC-GPB180
Weight: 1.00
SKU: RDDLZ-LC-GPB180

Available Options

Measuring Range

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

This single-point mounted parallel beam load cell is available in capacities of 4kg, 8kg, 10kg, 15kg, 20kg, and 30kg. It features a C3 accuracy class with a precision of ±0.02% F.S, and operates with an excitation voltage range of 5~12VDC.

Specification

Model	RDDLZ-GPB180
Measuring Range	4kg, 8kg, 10kg, 15kg, 20kg, 30kg (optional)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Accuracy Class	C3
Comprehensive Accuracy	±0.02% F.S
Sensitivity	2.0±0.2 mV/V
Zero Output	±2.0% F.S
Non-Linearity Error	±0.02% F.S
Hysteresis Error	±0.02% F.S
Repeatability Error	±0.02% F.S
Creep	0.02% F.S/30min
Input Impedance	406 ± 6Ω
Output Impedance	350 ± 3Ω
Output Temperature Effect	±0.02% F.S/10°C
Zero Temperature Effect	±0.02% F.S/10°C
Temperature Compensation Range	-10~+40°C
Operating Temperature Range	-35~+70°C
Maximum Excitation Voltage	18VDC
Recommended Excitation Voltage	5~12VDC
Safe Load Limit	150% F.S
Ultimate Load Limit	200% F.S
Insulation Resistance	≥5000MΩ (50VDC)
Cable Type	Four-core shielded cable
Cable Length	φ3.8 × effective length 150mm
Protection Level	IP65
Wiring Definition	Excitation +: Red, Excitation -: Black
Wiring Definition	Signal +: Green, Signal -: White

Feature

Durable Aluminum Alloy Construction: Parallel beam load cell made from high-quality aluminum alloy with an anodized surface, offering corrosion resistance and long-term durability.
Single-Point Design: Designed for one-side fixed, one-side loading installation, ensuring stable and accurate measurements.
Wide Capacity Range: Available in 4kg, 8kg, 10kg, 15kg, 20kg, and 30kg capacities, meeting diverse weighing needs.
Compact Size: The beam load cell supports a maximum platform size of 200 × 200mm, making it suitable for space-limited applications.
Parallel Beam Structure: Enhances load distribution and minimizes measurement errors.
Versatile Applications: Commonly used in automated weighing systems, packaging machines, and industrial weighing solutions.

Wiring Diagram and Dimension (unit: mm)

Application

Tips: What are the advantages of using a parallel beam structure?

The parallel beam structure improves accuracy and stability in weighing applications. It helps distribute force evenly, reducing errors in measurement. This design also lowers the impact of off-center loading, making it ideal for small weighing systems. It resists mechanical stress and vibrations, keeping weight readings steady over time. The structure is highly sensitive and does not bend easily, ensuring reliable performance. Made from lightweight aluminum alloy, it is strong and durable. This makes it a great choice for automated weighing, retail scales, and industrial weight tracking.
