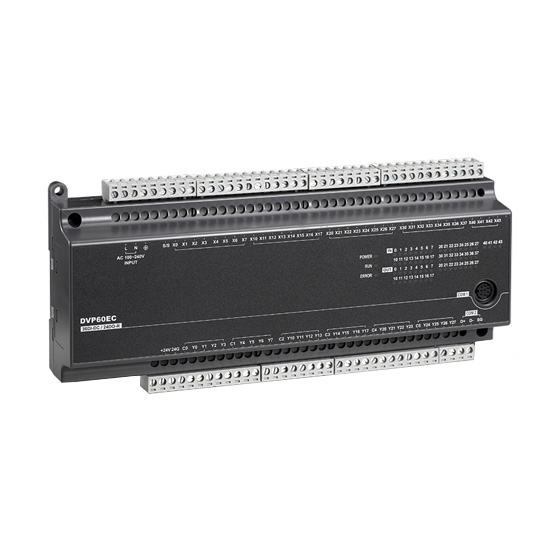

Basic PLC (Programmable Logic Controller) DVP-EC3 is the most economical solution for sequence control and simple RS-485/Modbus communication.

Features

Built-in I/O: 10/14/16/20/24/30/32/40/48/60
Program capacity: 4k steps
COM port: Built-in RS232 & RS485 ports (10/14 I/O models do not support RS485), compatibale with Modbus ASCII/RTU protocol
Support 2 points (Y0, Y1) of independent high-speed (max. 10kHz) pulse output

Specification

Model		RDDLZ-DVP-EC3
Built-in I/O		10 / 14 / 16 / 20 / 24 / 30 / 32 / 40 / 48 / 60
Power Supply		100 ~ 240V AC (-15% ~ +10%), 50/60Hz ±5%
Operation		RDDLZ-DVP-EC3 series PLC starts to run when the power supply rises to 95-100V AC and stops when the power supply drops down to 70V AC. It continues running for 10ms after the power is cut off.
Power Supply Fuse		2A / 250V AC
Power Consumption		10/14/16 I/O: 12VA 20/24/30/32/40 I/O: 15.6VA 48/60 I/O: 22.5VA
DC 24V Current Output *^1**		10/14/16 I/O: 200mA 20/24/30/32/40 I/O: 300mA 48/60 I/O: 400mA
Power Supply Protection		DC 24V output short circuit protection
Voltage Withstand		1500VAC (Primary-secondary), 1500VAC (Primary-PE), 500VAC (Secondary-PE)
Insulation Resistance		>5MΩ at 500VDC (between all I/O points and ground)
Noise Immunity		ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV, Analog & Communication I/O: 1kV RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Grounding		The diameter of grounding wire shall not be less than that of L, N terminal of the power supply. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.)
Environment		Operation: 0°C~55°C (temperature), 5~95% (humidity), pollution degree 2 Storage: -25°C~70°C (temperature), 5~95% (humidity)
Approvals		UL508, European community EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC
Vibration/Shock Immunity		International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea)
RS485 Port		10/14 I/O models do not support RS485, other models is available
Weight		See below "Selection Table"
Note: *1. It is suggested that the power output should not be supplied to HMIs.

Selection Table

Model	Builit-in I/O	Number of Inputs	Number of Outputs	Output Type	COM Port	Weight
DVP10EC00R3	10	6	4	Relay	RS-232	205g
DVP10EC00T3	10	6	4	Transistor	RS-232	192g
DVP14EC00R3	14	8	6	Relay	RS-232	210g
DVP14EC00T3	14	8	6	Transistor	RS-232	195g
DVP16EC00R3	16	8	8	Relay	RS-232/RS-485	220g
DVP16EC00T3	16	8	8	Transistor	RS-232/RS-485	198g
DVP20EC00R3	20	12	8	Relay	RS-232/RS-485	310g
DVP20EC00T3	20	12	8	Transistor	RS-232/RS-485	285g
DVP24EC00R3	24	12	12	Relay	RS-232/RS-485	322g
DVP24EC00T3	24	12	12	Transistor	RS-232/RS-485	288g
DVP30EC00R3	30	18	12	Relay	RS-232/RS-485	325g
DVP30EC00T3	30	18	12	Transistor	RS-232/RS-485	290g
DVP32EC00R3	32	16	16	Relay	RS-232/RS-485	340g
DVP32EC00T3	32	16	16	Transistor	RS-232/RS-485	295g
DVP40EC00R3	40	24	16	Relay	RS-232/RS-485	380g
DVP40EC00T3	40	24	16	Transistor	RS-232/RS-485	340g
DVP48EC00R3	48	28	20	Relay	RS-232/RS-485	540g
DVP48EC00T3	48	28	20	Transistor	RS-232/RS-485	505g
DVP60EC00R3	60	36	24	Relay	RS-232/RS-485	560g
DVP60EC00T3	60	36	24	Transistor	RS-232/RS-485	510g

PLC I/O Point Specification

Input Points
Input Point No.		X0 ~ X3	X4 ~ X17	X20 ~ ^#1
Input Point Type		Digital input
Input Form		DC (SINK or SOURCE)
Input Currrent		24VDC, 5mA
Max. Input Frequency		20kHz	10kHz	60Hz
Action Level	Off → On	>15VDC
	On → Off	< 5VDC
Response Time	Off → On	< 25μs	< 50μs	< 10ms
	On → Off	< 10μs	< 20μs	< 15ms
Filter Time	X0 ~ X17	Approx. 10ms (0~20ms adjustable in D1020, D1021)

Output Points
Output Point Type		Relay - R	Transistor - T
Voltage Specification		< 240VAC, 30VDC	5 ~ 30VDC ^#2
Max. Output Frequency		1Hz	Normal inputs	10kHz ^#4
Maximum Load	Resistive	2A/point (5A/COM)	0.5A/1 point (4A/ZP)
	Inductive	^#3	15W (30VDC)
	Lamp	20W DC/100W AC	2.5W (30VDC)
Response Time	Off → On	Approx. 10ms	< 30μs	< 20μs
	On → Off		< 350μs	< 50μs
Note: #1. Please refer to “I/O Terminal Layouts” for the max. X/Y No. on each model. #2. UP, ZP must work with external auxiliary power supply 24V DC (-15% ~ +20%), rated consumption approx. 1mA/point. #3. Life curves #4. The maximum frequency is applicable to Y0-Y3 in all DVP-EC3 series PLCs, and other output terminals are general terminals.

Dimensions

Model	10EC00R/T3	14EC00R/T3	16EC00R/T3	20EC00R/T3	24EC00R/T3	30EC00R/T3	32EC00R/T3	40EC00R/T3	48EC00R/T3	60EC00R/T3
L	95			150				164	240
L1	86			141				155	231
