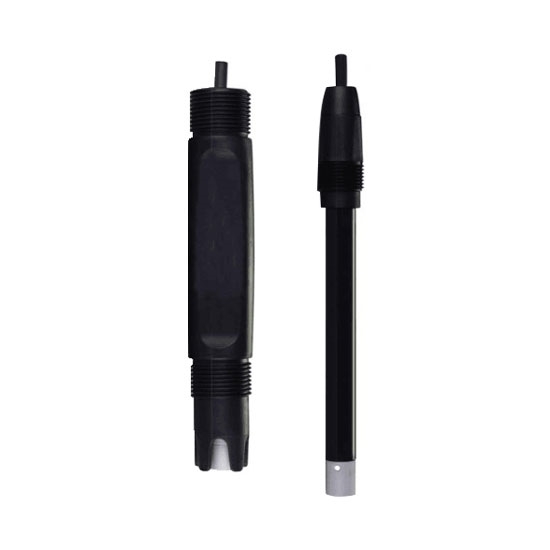

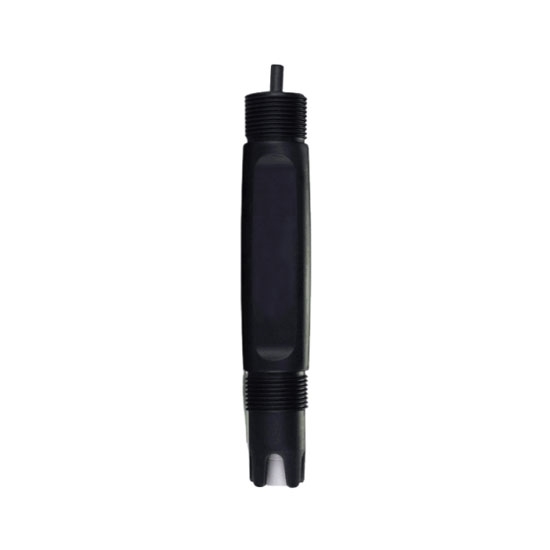

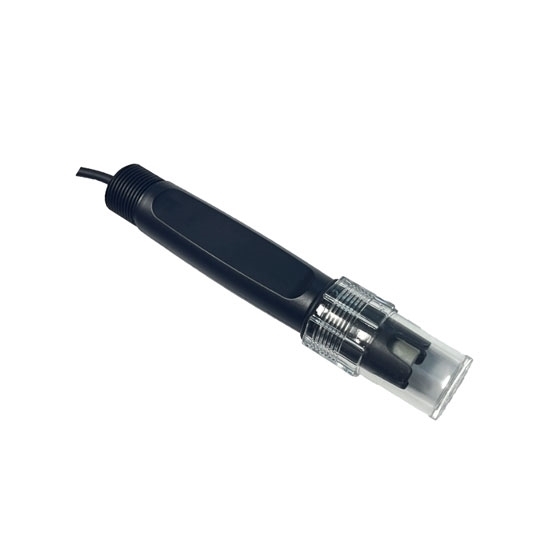

Nitrite Sensor For Water Quality, 0.2~2200 Ppm

Nitrite Sensor For Water Quality, 0.2~2200 Ppm
Nitrite Sensor For Water Quality, 0.2~2200 Ppm
Nitrite Sensor For Water Quality, 0.2~2200 Ppm
Nitrite Sensor For Water Quality, 0.2~2200 Ppm
Nitrite Sensor For Water Quality, 0.2~2200 Ppm
Nitrite Sensor For Water Quality, 0.2~2200 Ppm
Nitrite Sensor For Water Quality, 0.2~2200 Ppm
0 reviews • Write a review
from
$648.82
Ex Tax: $648.82
  • Stock: In Stock
  • Model: RDDLZ-WQS-INO2
  • Weight: 1.00
  • SKU: RDDLZ-WQS-INO2

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nitrite sensor for water quality, easy to use and install. Measures 0.2–2200 ppm, low power (0.5W), supports online monitoring with pH adjustment. Great for drinking water, wastewater, and aquaculture.

Specification

Ion Concentration
Measurement Range0.2~2200 ppm
Resolution0.01 ppm
Measurement Accuracy±3% FS
Temperature
Measurement Range-10.0 to 110.0 ℃
Resolution0.1 ℃
Measurement Accuracy±0.5 ℃
Temperature TypeThermistor NTC10K
Temperature CompensationAutomatic
Data Transmission
InterfaceRS-485
ProtocolMODBUS-RTU communication protocol
Other Parameters
Working Voltage9~27 VDC
Dielectric Strength2500 Vrms
Power ConsumptionApprox. 0.5W
MaterialPPS Solid
Installation Method3/4 inch front and rear thread
Slope56 ± 3 mV
Repeatability±2%
Interfering IonAcetic acid, fluoride, chloride, bromide, iodide, sulfate, etc.
Pressure Range0–2 atm
Response Time≤30 seconds to reach 90% response
StorageLong-term: dry storage; Short-term: store in sodium nitrite solution
pH Working Range1.1~7 pH
Input Impedance20~50 MΩ
Calibration & CleaningUse freshly prepared nitrite standard solution; best pH range: 4.5–8
Online MeasurementSupported; pH adjustable
ConnectionTerminal


Feature

  1. The nitrite sensor adopts an RS-485 communication interface with MODBUS-RTU protocol, supporting bidirectional communication for flexible integration.
  2. Power supply and output are electrically isolated to ensure electrical safety.
  3. Built-in protection circuitry enhances anti-interference performance for complex environments.
  4. Simple and practical communication protocol capable of outputting more diagnostic information, enhancing intelligence.
  5. The low-power design makes this water quality sensor suitable for a wide range of applications. Its internal memory retains calibration and configuration data even during power loss.
  6. PPS solid body, strong corrosion resistance, 3/4 inch front and rear threads for easy installation.

Dimension (Unit: mm)



Wiring Instructions

FunctionColorDescription
Data TransmissionYellow WireRS-485 Communication T/R+ (A)
White WireRS-485 Communication T/R− (B)
Power SupplyRed WireDC Power Positive
Black WireDC Power Ground


Application

Tips: How does this nitrite sensor compare to colorimetric methods for nitrite detection?

Traditional colorimetric methods involve sampling, adding reagents, and using a colorimeter to analyze nitrite levels. While effective in controlled lab settings, they are time-consuming, reagent-dependent, and unsuitable for real-time monitoring. In contrast, this ion-selective Nitrite Sensor provides continuous, real-time, reagent-free monitoring, which greatly improves operational efficiency. Additionally, it allows integration with remote monitoring systems, making it ideal for unattended field stations, industrial automation, or aquaculture systems that require 24/7 supervision.
