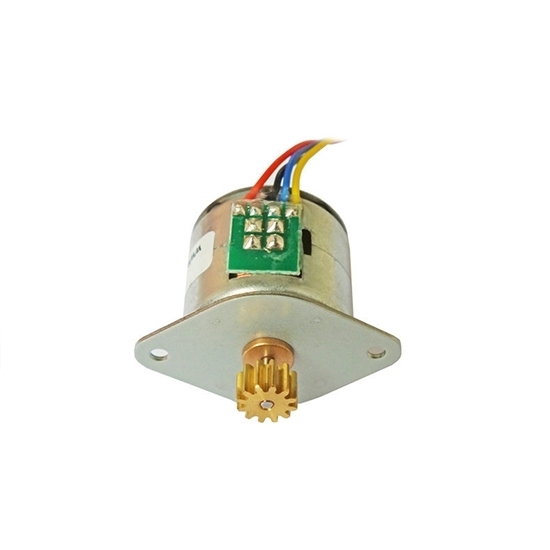

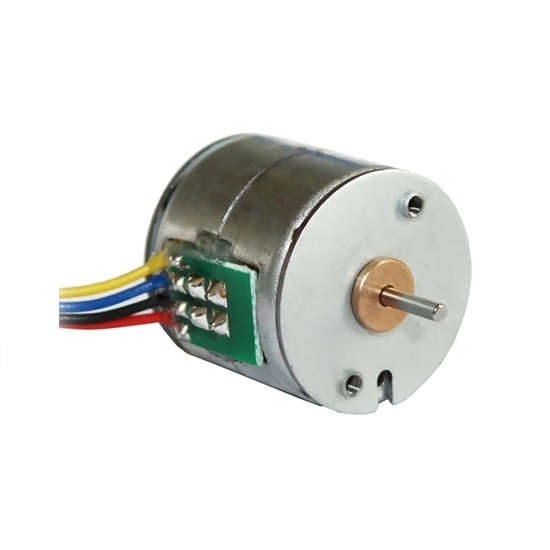

Nema 8 Micro Stepper Motor, 12V/ 24V, 2 Phase, Bipolar

0 reviews • Write a review

from

$43.69

Ex Tax: $43.69

Stock: In Stock
Model: RDDLZ-MGSTEP-812242
Weight: 1.00
SKU: RDDLZ-MGSTEP-812242

Available Options

Short Description

Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy 2-phase micro stepper motor at low price. Motor size Nema 8 (20mm), rated voltage DC 12V/24V, current 0.6Amp/0.3Amp, resistance 20Ω/6.5Ω, stepping angle 18 degree. Miniature stepper motor with metal gear, bipolar drive, used in medical equipment, printer, scanner, automotive meter, gas range, sewing machine, security systems, optical fiber welding equipment, etc.

Specification Datasheet

Model	RDDLZ-SM2014	RDDLZ-SM2019
Rated Voltage	24V	12V
Rated Current	0.3A	0.6A
Resistance	6.5Ω	20Ω
Phase	2 Phase	2 Phase
Stepping Angle	18°	18°
Excitation Method	2	2
Pull-in Torque	5.2 mN-m (500 pps)	3.2 mN-m (500 pps)
Pull-out Torque	6.5 mN-m (500 pps)	4.5 mN-m (500 pps)
Holding Torque	15.0 mN-m (0 pps)	11.0 mN-m (0 pps)
Max. Continuous Response Frequency	1200 pps	1200 pps
Max. Starting Frequency	900 pps	900 pps
Drive Mode	Bipolar Drive
Ambient Temperature	0℃~55℃
Insulation Resistance	500VDC 100MΩ min
Insulation Grade	E

Phase Sequence Excitation & Dimensions Diagram (Unit: mm)

24V 0.3A Micro Stepper Motor (RDDLZ-SM2014)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Yellow	ON	-	-	ON	A
2	Red	-	-	ON	ON	A
3	Black	ON	ON	-	-	B
4	Blue	-	ON	ON	-	B

12V 0.6A Micro Stepper Motor (RDDLZ-SM2019)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Yellow	ON	-	-	ON	A
2	Red	ON	ON	-	-	A
3	Black	-	-	ON	ON	B
4	Blue	-	ON	ON	-	B

Details

Tips: Nema 8 micro stepper motor maintenance.

Zero excitation maintenance: maintain the Nema 8 micro stepper motor with an excitation circuit formed by a current relay.
Over-voltage maintenance: maintain the Nema 8 micro stepper motor with an armature circuit composed of over-voltage relay.
Overload protection: use an armature circuit composed of a current relay to maintain the Nema 8 micro stepper motor.
Overcurrent protection: use an armature circuit composed of overcurrent relay to maintain the Nema 8 micro stepper motor.
Grounding maintenance: Use a grounding device formed by voltage relay to maintain the Nema 8 micro stepper motor. When any point of the DC motor is grounded, the voltage relay will act to send out a warning signal or cut off the power supply.
