Nema 23 Stepper Motor Linear Actuator, 2 Phase, 1A, 0.65Nm

0 reviews • Write a review

from

$144.54

Ex Tax: $144.54

Stock: In Stock
Model: RDDLZ-STEPL-1065
Weight: 1.00
SKU: RDDLZ-STEPL-1065

Available Options

Short Description

Motor Type

Motor Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

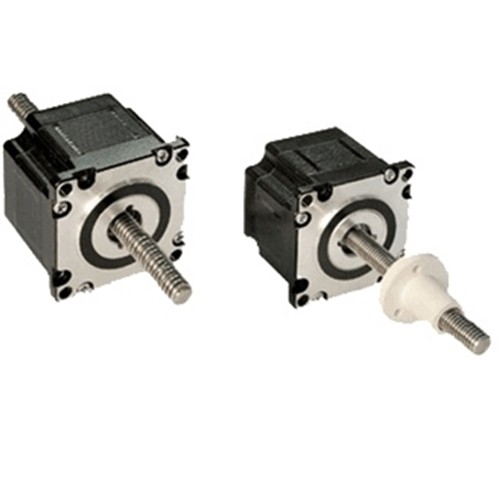

This hybrid stepper linear actuator comes in Nema 23 frame size, non-captive and external linear versions are available. It provides the options of selecting the diameter and travel per step of leadscrew as well.
Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	57H246-1004AST	57H246-1004GTS
Weight	4 Kg
Motor Length	46 mm
Phase	2 phase
Step Angle	1.8°
Rated Current	1 A
Resistance	4.8 Ω
Holding Torque	0.65 Nm
Rotor Inertia	120 g-cm²

Select Leadscrew
Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
0.394	10	0.079	2	0.00039	0.01
0.394	10	0.157	4	0.00079	0.02
0.394	10	0.394	10	0.00197	0.05

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=46mm

2. External shaft style

L=46mm

Details

Tips: stepper motor linear actuator in aviation industry
In the aeronautical dynamic system, the regulating valve is one of the most important flow regulating devices. The realization of motor propulsive force change and accuracy control largely depends on the characteristics of regulating valve, which requires a very precise proportion of the change of flow and the stroke of the stepping linear motor.
Now there is a new type of regulating valve which combines the stepper motor linear actuator and valve body. The main structure of the regulating valve is a stepper motor linear actuator, a valve core, a seat and a return spring. The valve core and the active cell of the stepper motor are connected with each other in structure. Due to the linear motion of the active cell, the valve core connected should also have linear motion. The valve can adjust the circulation area and the aperture, which forms the change of the flow, so that the flow can be controlled. If the throttle surface of the valve core is made into a para-curve, then the flow and stroke will have linear relation. Therefore, the stepper motor linear actuator with high reliability, high positioning precision and high performance has a very good application prospect in the aviation industry.
