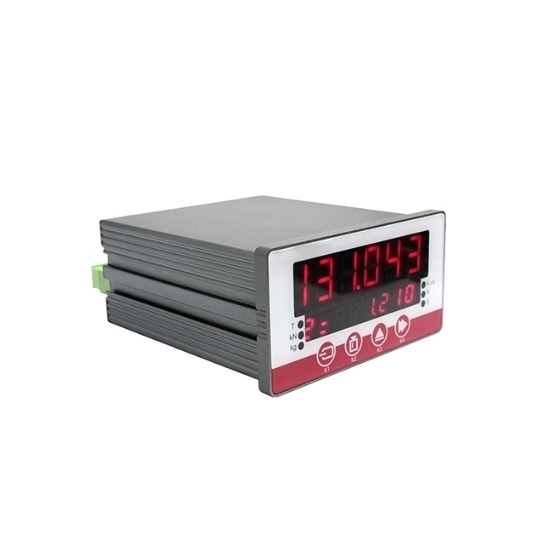

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

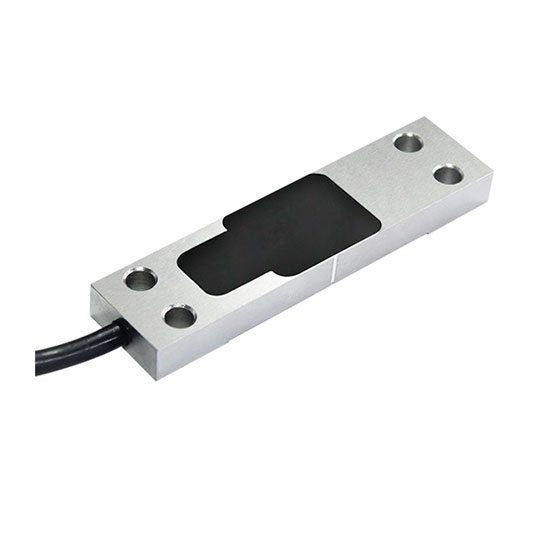

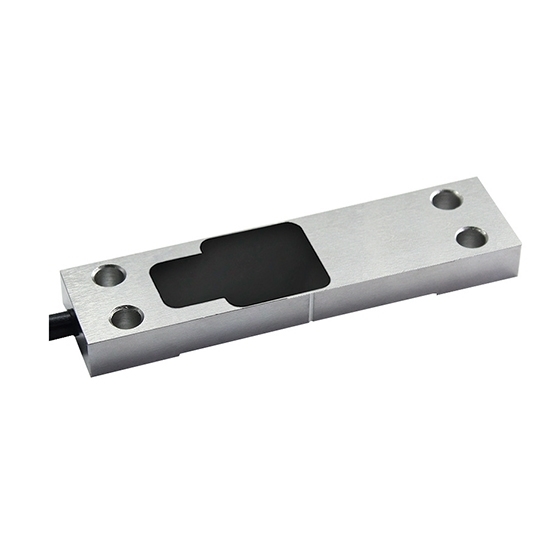

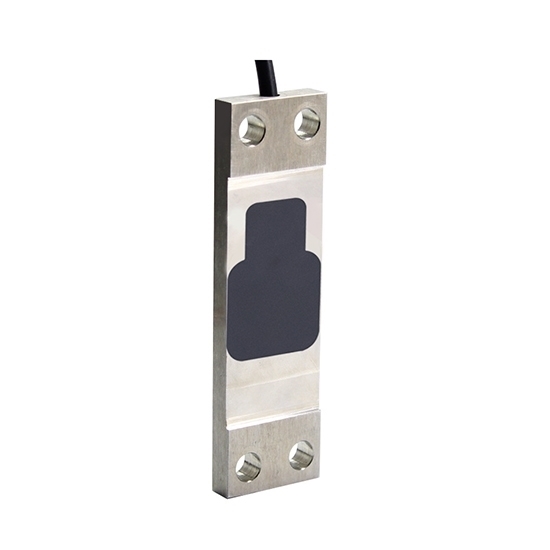

A highly quality and durable strain gauge load cell with a miniature design is undoubtedly your best choice. Featuring a measurement range of 0-500µm/m and a response frequency of 1 kHz, it performs particularly well in high-speed dynamic measurements. With a temperature sensitivity drift of only 0.2% F.S./10°C, the load cell is capable of maintaining stability in a wide range of temperature environments and is rated for a safe load of 150% R.C.

Specification

Features

1. Strain gauge load cell has high accuracy, good long-term stability, small size, easy installation with certain anti-overload capability.
2. Adopting industrial high-precision strain gauges, the measurement accuracy is improved, and it can work in high temperature, low temperature, high pressure and other extreme environments.
3. Widely used in the measured object of static and dynamic, load real-time strain monitoring, such as crane presses and clip presses.

Dimension (unit: mm)

Installation

Caution

1. The strain gauge load cell is fixed to the measuring object with 4 standard M6 socket head cap screws as shown. For optimal measurement results, we recommend using screws of performance class 12.9, tightened in opposite diagonal order to a tightening torque of 16 N.m.
2. Remove any coatings or residual varnish and paint from the sensor mounting area, the
3. The surface of the measuring object must be sufficiently smooth (roughness R < 3.2).
4. The strain sensor must not rest in the center offset area and must be mounted without deformation.
5. Load the load cell to its maximum capacity several times before calibration to stabilize the mounting surface.
6. Then tighten the fastening bolts to the nominal (rated) torque.
7. If there is a possibility that the load cell may be in an exposed position or there is a risk of mechanical damage, cover the strain gauge load cell with the housing to ensure that it will not be damaged.

Wiring Method

Tips: What is mini strain gauge load cell?

Mini strain gauge load celll is a small force sensor that is widely used to measure the weight or force of an object. It uses strain gauge technology to sense changes in pressure or force exerted on an object and converts it into an electrical signal for accurate measurement.

Mini strain gauge load cell is widely used in a variety of precision measurement applications due to its compact design and high accuracy. Common applications include:

• Electronic Scales and Weighing Systems: Used to measure the weight of foodstuffs, industrial products, and more.
• Robotics: To help robots sense applied forces and enable fine manipulation control.
• Medical Devices: Such as pressure sensors for weight monitoring and other medical diagnostic devices.
• Automated Production Lines: Used in manufacturing processes to measure the weight and force of materials in real time.
