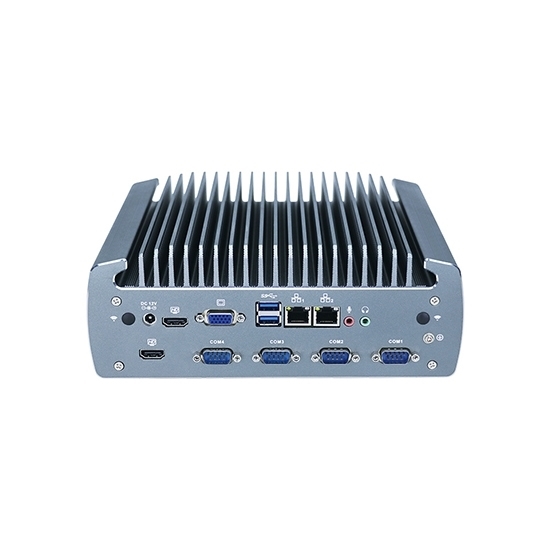

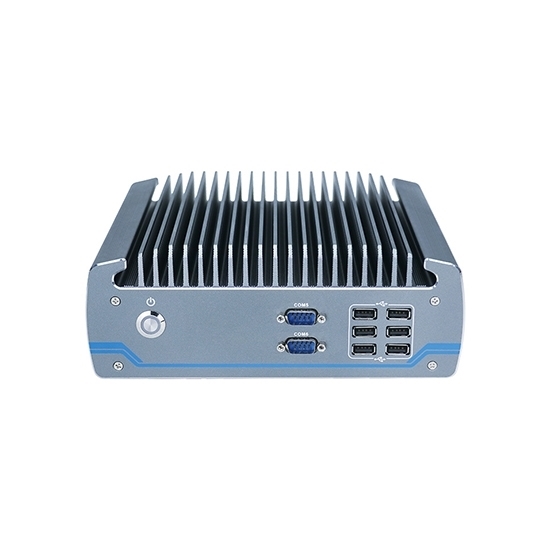

Mini Embedded Fanless Industrial PC, Core I3 I5 I7, Linux

0 reviews • Write a review

from

$1,477.85

Ex Tax: $1,477.85

Stock: In Stock
Model: RDDLZ-IPC-i357L
Weight: 1.00
SKU: RDDLZ-IPC-i357L

Available Options

Short Description

Usable System

CPU

RAM/ Hard Disk Capacity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ideal price industrial PC with mini size and fanless design, embedded installation. Onboard CPU Intel Core i7 8700T/ i3 8100T/ i5 8500T for selection, system Linux/Windows 7/Windows 10, standard interface 6*COM, 2*1000M LAN. Industrial grade computer has many applications including industrial automation, medical, data acquisition, motion control, vehicle, etc.

Specification

Model	RDDLZ-IBOX-605
CPU	Intel Core i3 8100T (quad core, 4 threads, 3.1 GHz)
	Intel Core i5 8500T (6 core, 6 threads, 2.1 GHz, Maximum Turbo 3.5 GHz)
	Intel Core i7 8700T (6 core, 12 threads, 2.4 GHz, Maximum Turbo 4.0 GHz)
Chip	Intel H310
Usable System	Linux, Windows 7, Windows 10
RAM	2*DDR4 2133/2400 SODIMM slot, Max 32GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel HD Graphics 630
Display Port	1VGA, 1HDMI (Supports synchronous and asynchronous dual display)
Front I/O Interface	6*USB 2.0
	2*COM
	1*Power Switch
Rear I/O Interface	2*USB 3.0
	2*1000M LAN
	1*VGA
	2*HDMI
	1*Mic
	1*Line Out
	4COM (COM2RS232/RS422/485 Optional)
	1*DC
Expansion Port	GPIO (4 Input*4 Output)
Expansion Slot	1M.2 2280 slot (Compatible: PCIE and SATA signal) 1MINI PCIE slot (WIFI/Bluetooth optional, please contact us for configuration)
Network	2*RTL8111H 1000M LAN
Storage	1M.2 2280 slot, 12.5" HDD (2*2.5" HDD Optional)
Input Voltage	DC 12~19V Input (DC 9~36V wide voltage Optional)
Other Function	Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level)
Working Temperature	0 ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow
Working Humidity	5%~95% non-condensing
Certification	CE, CCC, FCC Class A, ROHS
Color	Titanium gray (other color can be customized)
Material	High-quality all aluminum, surface anodic oxidation
Dimension	230 * 219 * 84mm (Not include the brackets)
Net Weight	4.0 kg (Not include the brackets)

Mini Embedded Fanless Industrial PC Dimensions Diagram (Unit: mm)

Accessories List

Name	Quantity	Specification
Power Adapter	1	DC 12V, 5A/ 12V, 12.5A
Power Cord	1	Any Plug Optional (US, EU, UK etc.)
Wall Bracket	2	Standard
Motherboard CD Driver	1	Neutral
