Mini Digital Thickness Gauge

0 reviews • Write a review

from

$71.49

Ex Tax: $71.49

Stock: In Stock
Model: RDDLZ-TG-SD203
Weight: 1.00
SKU: RDDLZ-TG-SD203

Available Options

Measuring Range

Probe Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

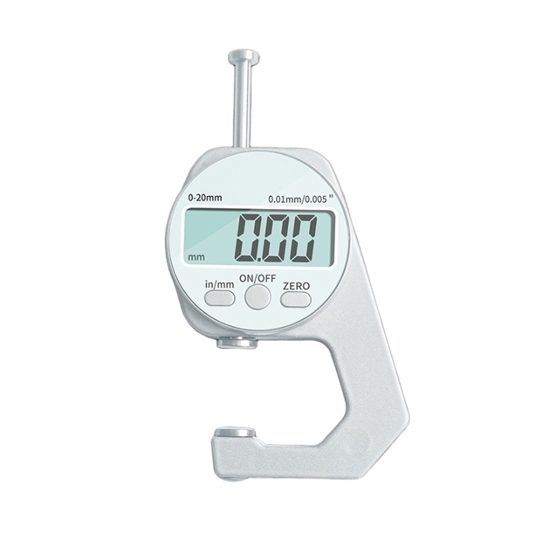

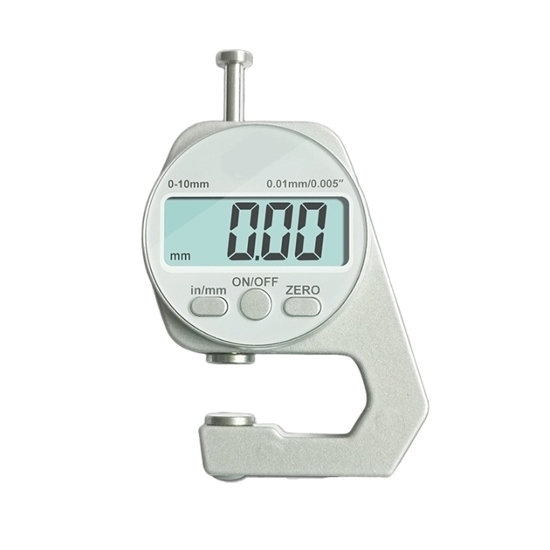

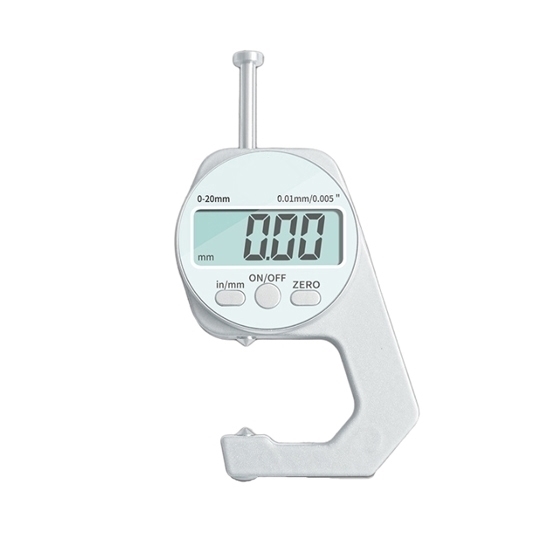

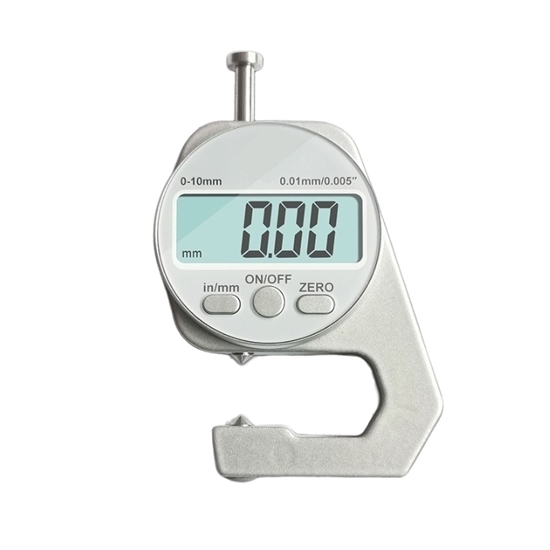

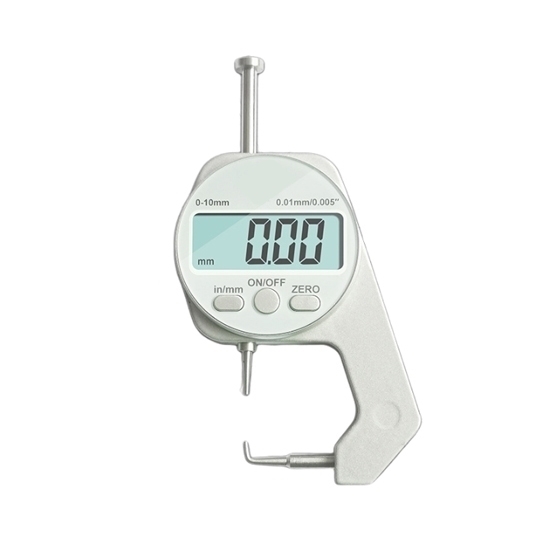

Mini digital thickness gauge is a compact, handheld device used for measuring the thickness of materials with high accuracy. This digital thickness gauge features a digital display that provides easy-to-read measurements.

Specification

Model	RDDLZ-SD-203-1/4	RDDLZ-SD-203-2/5	RDDLZ-SD-203-3
Measuring Range	0-10mm/0-20mm	0-10mm/0-20mm	0-10mm
Probe Type	Flat Head	Pointed Head	Curved Pointed Head
Probe Material	Alloy
Resolution	0.01mm
Tolerance	±0.02mm
Display	LCD Digital Display
Applicable	Used to measure soft materials such as leather, paper, film, etc.	Used to measure hard materials such as lenses, aluminum plates, wood, etc.	Used to measure round tube materials, such as metal tubes, PVC tubes, straws, etc.

Details

Tips: What is the display type of mini digital thickness gauge?

The display of mini digital thickness gauge is usually a liquid crystal display (LCD), which has a clear and easy-to-read digital display. This screen is known for its low power consumption and long life, and can provide clear measurement results in various lighting conditions. Some high-end models may be equipped with a backlit LCD, which is suitable for use in low-light or dark environments. The LCD screen also has the advantages of high digital accuracy and fast response speed, and usually supports switching between millimeters and inches, which is convenient for users to adjust according to their needs.
