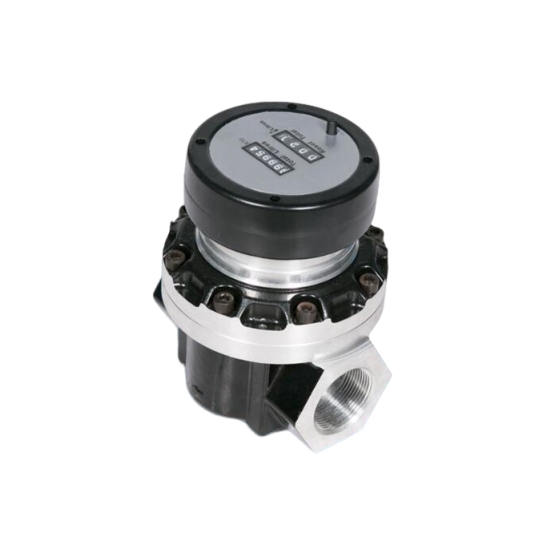

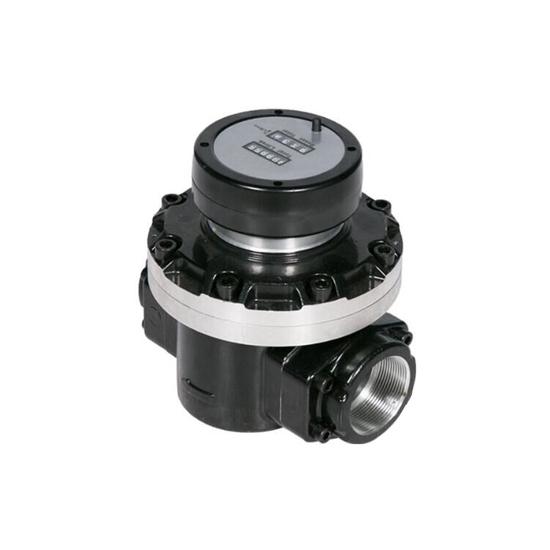

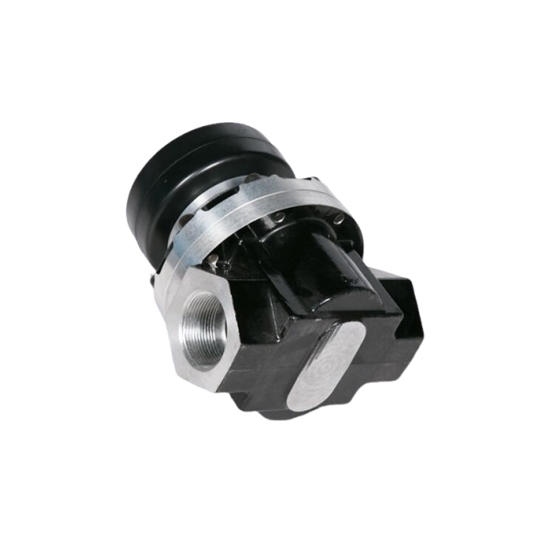

Mechanical Flow Meter, 1 Inch/ 1.5 Inch/ 2 Inch

0 reviews • Write a review

from

$169.99

Ex Tax: $169.99

Stock: In Stock
Model: RDDLZ-FLOW-OGM
Weight: 1.00
SKU: RDDLZ-FLOW-OGM

Available Options

Nominal Diameter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Mechanical flow meter for diesel, petrol, and kerosene. Comes in 1", 1.5", and 2" sizes, accurate to ±0.5%, handles up to 1000 CPS. Durable oval gears, great for thick liquids. Ideal for fuel, chemical, and transport use.

Specification

Model	RDDLZ-OGM-A-25	RDDLZ-OGM-A-25	RDDLZ-OGM-A-25
Nominal Diameter	1 inch	1.5 inch	2 inch
Minimum Flow Rate	20 L/min	25 L/min	30 L/min
Maximum Flow Rate	120 L/min	250 L/min	300 L/min
Accuracy	±0.5%	±0.5%	±0.5%
Repeatability	±0.3%	±0.3%	±0.3%
Max Viscosity	1000 CPS	1000 CPS	1000 CPS
Max Working Pressure	1.8 MPa	1.8 MPa	1.8 MPa
Medium	Diesel, Petrol, Kerosene
Connection Type	Threaded
Single Count	0.00-9999.0
Total Cumulative Count	0.00-99999.9

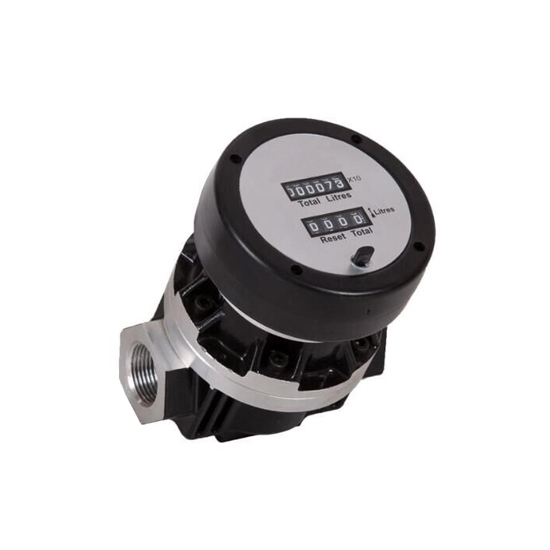

Note: To be used with an oil pump. The screen has a mechanical digital display with two rows: the upper row shows the single-batch total, which can be reset to zero, while the lower row displays the cumulative total, which cannot be reset.

Feature

Smooth Flow: Oval gear mechanism ensures the mechanical flow meter runs smoothly, even with thick fluids.
Easy Installation: Simple structure, reliable quality, easy to mount and calibrate.
High Accuracy: The fuel flow meter uses imported components to ensure accurate and consistent measurement.
Clear Readout: Four-digit mechanical display, clear and easy to read.
Wide Application: Suitable for various liquids like water, diesel, and kerosene.
Lightweight Build: Made of aluminum alloy, easy to carry and install.
Durable Interface: Aluminum alloy connections, strong and wear-resistant.

Dimension (unit: mm)

Application

Tips: Can the mechanical flow meter be used for water or corrosive liquids?

This model is specifically designed for petroleum-based fuels like diesel, gasoline, and kerosene. Using it with water or corrosive liquids is not recommended, as it may cause internal rusting, seal damage, or gear failure. If you need to measure water or chemicals, look for models with corrosion-resistant materials (e.g., stainless steel or Teflon-coated internals) that are certified for those media.
