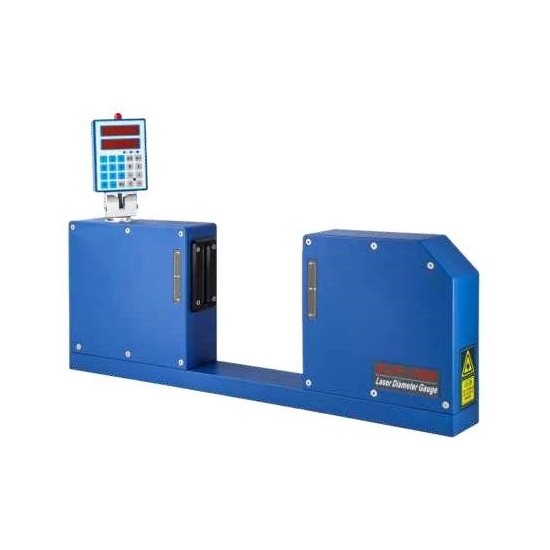

Laser Diameter Gauge, Single Axis, 1-70mm

0 reviews • Write a review

from

$4,281.89

Ex Tax: $4,281.89

Stock: In Stock
Model: RDDLZ-LDG-70A
Weight: 1.00
SKU: RDDLZ-LDG-70A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Laser diameter gauges have high accuracy and precision, often capable of measuring diameters down to micrometer-level tolerances. Single axis laser diameter measuring devices are widely used in various industries such as wire and cable manufacturing, metalworking, plastics extrusion, and textile production.

Features

Laser diameter gauge is a measurement of diameter value, with a multi-angle display of the operation panel.
This laser diameter measuring equipment adopts fully automatic closed-loop control technology and advanced DSP processing technology.
The measurement process is not affected by speed and vibration.
It comes with an over-tolerance alarm function.
It adopts high-quality stainless steel fasteners, an aluminum die-casting shell, a plastic spraying surface, and good corrosion resistance.
RS232/485/MODBUS protocol communication interface.

Specification

Model	RDDLZ-CJY-70A
Measuring Range	1-70mm
Measuring Accuracy	±10μm±0.008%Dz mm (Dz is the actual diameter of the measured object)
Resolution Ratio	0.001mm
Scanning Speed	1400 Times Scanning Cycle/Second
Power Supply	100~240V AC, 1A
Working Frequency	50/60Hz
Display Method	Two-Row 5-Digit Pipe Display
Light Source	Second Generation Visible Laser, Wavelength 650nm
Working Principle	Non-Contact Laser Scanning
Data Collection and Analysis	Support (Need to connect to an external computer and install related software)
Out-of-Tolerance Alarm Function	Dual relay contact output, upper and lower deviation signals are output separately (External sound and light alarm 24V DC and below)
Working Temperature	0~45℃
Relative Humidity	≤85%RH (No Condensation Water)
Other Environmental Requirements	The air does not contain corrosive gases, serious volatile oils, water vapor and dust.
Power Consumption	≤15W (with Adapter + 40W)
Communication Mode	Communication Method: Use RS485 interface, MODBUS RTU protocol/TCP protocol (Ethernet) to communicate with other devices
Protection Grade	IP65
Dimension	57564209mm (LWH)
Weight	7.1kg

Tips: Can laser diameter measuring gauges be used in outdoor environments?

Laser diameter measuring gauges can be used in outdoor environments, but some specific factors need to be considered. First, choose a laser diameter measuring instrument suitable for outdoor use and ensure that it has functions such as waterproof and dustproof to adapt to various weather conditions. Secondly, light conditions have an impact on measurement accuracy. Strong sunlight may interfere with the visibility of the laser beam, so it may be necessary to take shading measures or choose a low-light environment for measurement under strong light. In addition, changes in temperature and humidity may also affect measurement accuracy, so special attention should be paid to instrument maintenance and calibration under extreme weather conditions. In short, choosing a laser diameter measuring instrument suitable for outdoor use and taking appropriate protective measures can achieve reliable outdoor measurements.
