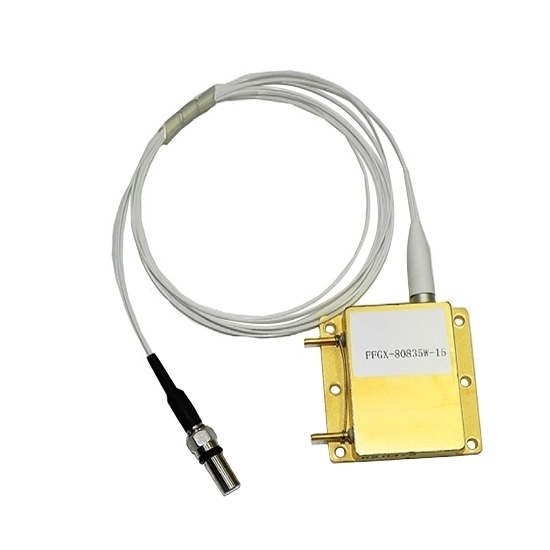

Infrared Fiber Coupled Laser Module, 808nm 35W

0 reviews • Write a review

from

$1,419.23

Ex Tax: $1,419.23

Stock: In Stock
Model: RDDLZ-LM-FFGX808
Weight: 1.00
SKU: RDDLZ-LM-FFGX808

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The 808nm, 35W high-power infrared fiber coupled laser module has a working temperature of 25℃ and a storage temperature range of -20℃ to 70℃. It is widely used in various fields such as laser criminal investigation and evidence collection, laser sights, laser infrared security, laser radar positioning, and laser engraving and cutting, providing reliable infrared lasers.

Specification

Model	RDDLZ-FFGX-80835W
Output power	35W
Center wavelength	805~808nm
Spectral width (FWHM)	3nm
Fiber core/cladding diameter	105/125um
Numerical aperture	0.22
Temperature drift coefficient	0.28nm/℃
Electro-optical conversion efficiency	45%
Threshold current	1.3A
Operating current	9.5A
Operating voltage	7.5V
Fiber length	1m
Bending radius	40mm
Protection tube type	0.9mm protection tube

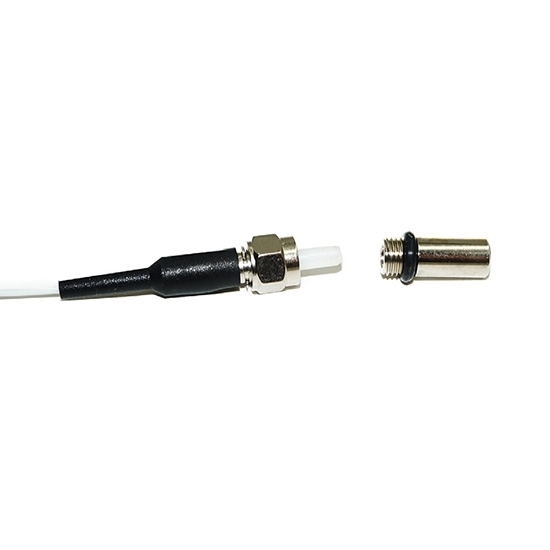

Connector	SMA-905
Anti-reflection band	1030~1200nm
Anti-reflection isolation	30dB
ESD	500V
Operating temperature (tube shell temperature)	25℃
Storage temperature	-20~70℃
Relative humidity	15-85%RH
Packaging form	W2
Welding temperature	260℃
Welding time	10s

Dimension (mm)

Applications

Tips: Instructions for using the infrared fiber coupled laser module

When the laser is working, avoid exposing the eyes and skin to the laser.
Anti-static measures must be taken during transportation, storage, and use, and short circuits must be connected between pins for protection during transportation and storage.
Use welding to connect the leads, with the solder joint as close as possible to the root of the pin, at a temperature below 260℃, and a welding time of less than 10 seconds.
It should be used at rated working current and rated working voltage.
Use a constant current power supply to avoid surges during operation.
The laser needs to ensure good heat dissipation during operation, with a working tube shell temperature of 15℃~40℃.
Fiber optic cables must not be bent at large angles, with a bending diameter greater than 400 times the diameter of the fiber cladding.
