Industrial Linear Actuator, 12V/24V, 7000N, 450mm Stroke

0 reviews • Write a review

from

$451.15

Ex Tax: $451.15

Stock: In Stock
Model: RDDLZ-LACTU-7000
Weight: 1.00
SKU: RDDLZ-LACTU-7000

Available Options

Short Description

Voltage (V)

Load Capacity

Stroke

Limit Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

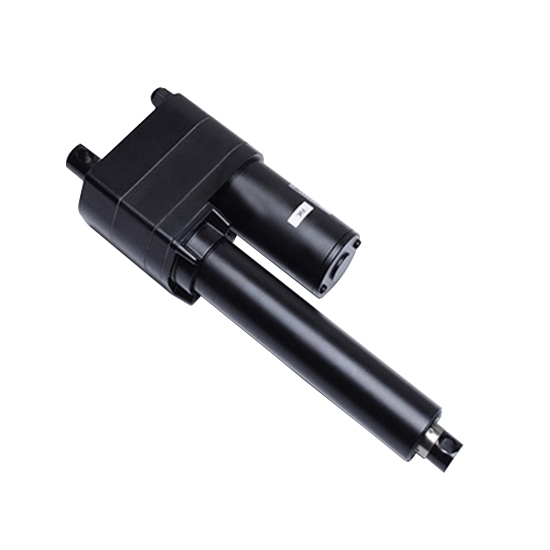

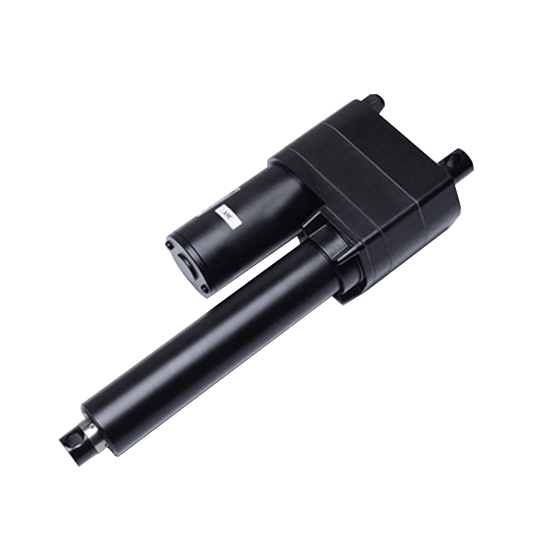

The provided industrial linear actuator is a very powerful actuator, due to its 7000N large load capacity, compact design, and IP65 rated protection, is ideal for various applications such as agricultural machinery, construction machinery, and industrial machinery.

Electric Linear Actuator Specifications

Model		RDDLZHTW10
Voltage		12V DC, 24V DC (Optional) Note: The fluctuation of voltage is +/-2V.
Maximum Load		7000N in pull/push
Self Locking Force		9000N
Power		150W
Rated Speed at Full Load		4mm/s at 7500N
Output Speed at No Load		5.5mm/s
Rated Load Current		16.2A
Stroke (Optional)*		50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Can be customized)
Limit Type (Optional)*		1. With clutch, no limit switch (stroke + 200 mm) 2. Built-in limit switch, not adjustable (stroke + 240 mm)
IP Rating		IP65
Operational Temperature Range		-20°C~+45°C
Certification		ISO, CE, RoHS
Noise		<60db
Upper End Type		Cylindrical, aperture 8.1mm
Line Length		750mm
Weight		8 kg

Linear Actuator Load and Speed Selection

Rated Load Capacity		Self Locking Force (N)	Rated Load Current (A)	Output Speed at No load (mm/s)	Rated Speed at Full Load (mm/s)
Pull (N)	Push (N)	Self Locking Force (N)	Rated Load Current (A)	Output Speed at No load (mm/s)	Rated Speed at Full Load (mm/s)
7000	7000	9000	16.2	5.5	4
6000	6000	6000	16.2	8.5	7
5000	5000	5000	16.8	11	9.5
4000	4000	3000	15.8	17	14

Linear Actuator Standard Dimension (mm)

Linear Actuator Stroke and Retracted Length (L) Selection

Stroke±2 (mm), Mounting Dimension±2 (mm)
Stroke	50	100	150	200	250	300	350	400	450
L for Actuator with Clutch	250	300	350	400	450	500	550	600	650
L for Actuator with Limit Switch	300	350	400	450	500	550	600	650	700

Tips: What is the self-lock condition of the linear actuator?

First, it is the static self-lock. The self-lock coefficient is less than 0.35. When it is static, and free of any vibration, the rod can maintain static when there is an external pressure. When the self-lock is less than 0.3, and the force of the rod goes against the movement direction, the motor has no movement in power off. When the self-lock is less than 0.25, and the force of the rod is the same as the movement direction, the motor has no movement in power off. When the self-lock coefficient is between 0.35 and 0.55, the rod will move up and down when the external force increases constantly. When the self-lock is higher than 0.55, the rod can move up and down when the external force is very small. Therefore, we should pay attention to the problem of self-lock in linear actuator model selection.
