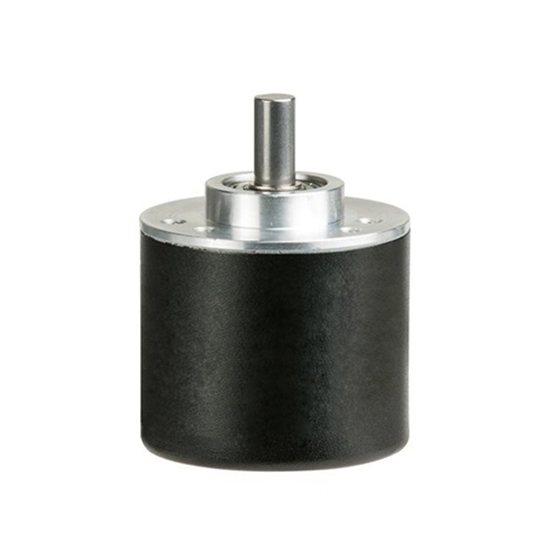

Incremental Rotary Encoder, Shaft, 1600 Ppr

0 reviews • Write a review

from

$183.87

Ex Tax: $183.87

Stock: In Stock
Model: RDDLZ-IRE-1600PS
Weight: 1.00
SKU: RDDLZ-IRE-1600PS

Available Options

Short Description

Voltage

Output Mode

Cable Length

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Incremental optical rotary encoders with 1600 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Basics

Model

RDDLZ-S5208G-1600BM

Weight

100g

Wiring

Color

Red

Black

Green

White

Yellow

Brown

Gray

Orange

Signal

V_cc

GND

A-

B-

Z-

Mechanical properties

Maximum shaft speed (r/min)

5000

Starting torque

<0.03Nm (25℃)

Maximum shaft load

Radial load: 50N, axial load: 20N

Shock resistance

50G/11ms

Anti-vibration

10G (10~2000Hz)

Rotational inertia

4X10^-8kgm²

Operating temperature

-30~+85℃ (-22~+185℉)

Storage temperature

-35~+95℃ (-31~+203℉)

Protection Level

IP51

Electrical characteristics

Output circuit

Open-collector output

Voltage output

Push-pull output

Line driver output

Supply voltage V_cc

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC5V±0.2

DC 5～24V

Current consumption

≤60mA

≤100mA

Output high level

≥3.5V

≥V_cc-2.5V

≥2.5V

≥V_cc-2.5V

Output low level

≤0.5V

≤1.0V

Rise time T_r

≤500ns

≤1500ns

≤200ns

≤500ns

Fall time T_f

≤100ns

≤300ns

≤200ns

Maximum frequency response

0～100kHz

Model Selection

Shaft type	Diameter of shell	Diameter of shaft	Connection type	Cable length *	Resolution	Production identifier	Z signal	Z signal wavelength	Output mode *	Voltage *
S: Shaft	52: 52mm	08: 8mm	G: Cable edge output	1: 1m 2: 2m 3: 3m 4: 4m	1600: 1600 ppr	B	M: Output 1 if receiving Z signal	Default: 1T	C: Open-collector NPN CP: Open-collector PNP T: Voltage ouput NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272	5: +5VDC 830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
Compact and lightweight, suitable for automation equipment with limited installation space.
Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: How to choose pulse per revolution (PPR)?

When choosing the encoder's PPR value, keep in mind a few simple rules. Make sure that the selected PPR value does not exceed the maximum frequency of the controller or encoder. Try to select PPR approached to the value displayed, thus eliminating or reducing the necessity for calibration constants. For example, if you want to display 12 inch per circle, select PPR 12. Select 1200 PPR if you want to display 12.00 inches. However, do not mistakenly forget the input multiplier of controller. Most controllers have X2 or X4 logic. If it is X2 logic, it will change to PPR 600 when displaying 12.00; when X4 logic becomes PPR 300. Remember when creating a PPR, be sure to remember the frequency. When selecting PPR, the maximum speed cannot exceed the frequency that the encoder can handle. The opposite situation is the same, please don't choose too low PPR, otherwise the controller can't identify the signal. Try to select a PPR that let the calibration constant is between 0.5 and 1.
