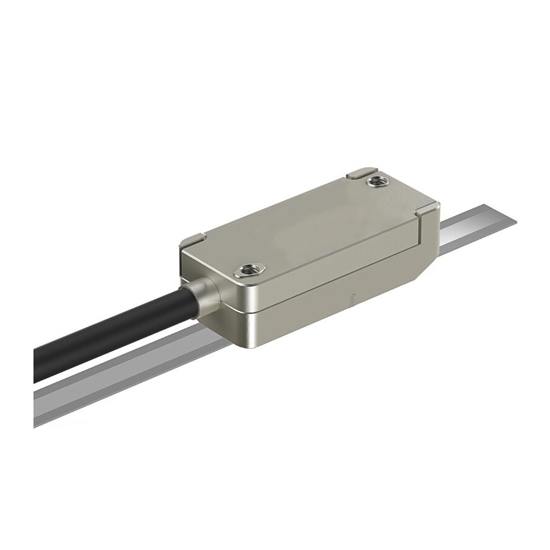

Incremental non-contact linear encoder provides precise position feedback for your equipment, optimizing production processes and enhancing product quality. Whether you require high-precision machining or precise positioning, RDDLZ provides useful solutions for your needs.

Features

• Multi-color indicator lights indicate signal strength, simplifying installation.
• It includes a built-in reference zero position for precise calibration.
• The encoder utilizes a high flexibility, bending-resistant braided shielding wire.
• Despite its compact size, it offers high resolution for detailed measurements.
• The optical linear encoder provides a standard AB quadrature digital signal output for compatibility with various systems.
• The incremental position encoder features an open non-contact optical system to ensure reliable performance.
• Encased in a stainless steel shell, it boasts strong anti-interference properties.
• The incremental encoder incorporates a high-precision measurement system for accurate readings.

Specification

Dimension (mm)

Tips: How to choose an incremental optical linear encoder?

• Resolution: Choose the resolution (e.g., 0.1 µm, 0.5 µm, 1 µm) based on your required precision.
• Signal Output: Decide between digital (e.g., AB quadrature) or analog signals based on your system’s needs.
• Installation and Size: Ensure the encoder fits your mounting requirements.
• Environmental Conditions: Select one that can operate reliably in your environment (e.g., temperature, humidity).
• Additional Features: Consider features like built-in reference points or robust shielding for interference resistance.
• Cost vs Performance: Balance your budget with the required performance specifications.
