Inclinometer Sensor, Output 4-20mA, ±10°~±180°

0 reviews • Write a review

from

$207.69

Ex Tax: $207.69

Stock: In Stock
Model: RDDLZ-IMS-118128
Weight: 1.00
SKU: RDDLZ-IMS-118128

Available Options

Short Description

Installation

Measuring Axis

Measuring Range (for single axis)

Measuring Range (for dual axis)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

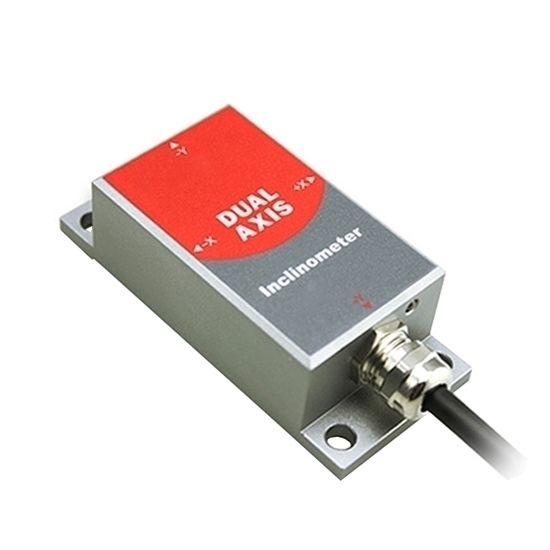

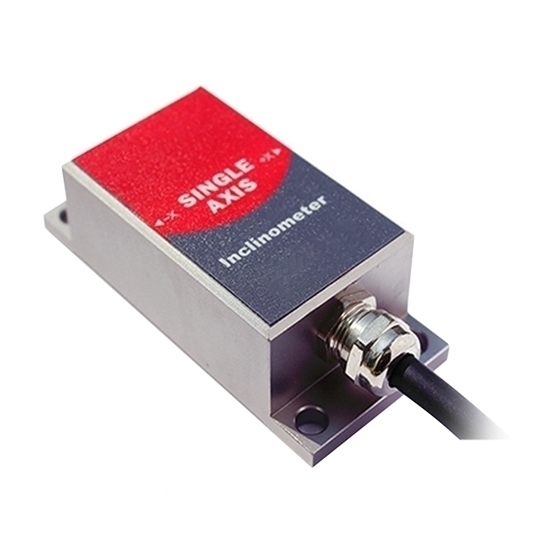

High accuracy inclinometer sensor has 4-20mA current output, ±10°~±180° measuring ranges and horizontal or vertical installation for selection. It is a single-axis/2-axis tilt sensor, suitable for bad industrial working conditions.

Features

The inclinometer sensor outputs 4-20mA standard current, transmission distance is up to 2000 meters.
Output signal of the single/dual axis inclinometer has strong anti-interference, which is dedicated to engineering machinery and equipment working in harsh environments.
The tilt sensor adopts MEMS sensing production process to make precise compensation and correction for temperature error and nonlinear error. Small range accuracy can reach 0.05°, high precision, small size, high packaging technology, strong shock and vibration ability.
Inclinometer sensor has built-in anti-radio frequency and adopts anti-electromagnetic interference circuit, which is especially suitable for underground non-excavation machinery and other harsh industrial environments.
In terms of reliability and stability of the industrial inclinometer sensor, it uses industrial-grade MCUs, 3-proof PCB boards, cables, wide-temperature shielded metal casings and other measures to improve its industrial grade.

Technical Specification

Model	RDDLZ-SCA118/SCA128					Condition
Measuring Axis	X/XY (single/dual)	X/XY (single/dual)	X/XY (single/dual)	X/XY (single/dual)	X/XY (single)	-
Measuring Range*	±10°	±30°	±60°	±90°	±180°	-
Zero Output	12mA	12mA	12mA	12mA	12mA	0° output
Resolution	0.01°	0.01°	0.02°	0.03°	0.05°	-
Absolute Accuracy	0.05°	0.05°	0.06°	0.08°	0.1°	@25℃
Long Term Stability	0.05°	0.05°	0.05°	0.05°	0.05°	-
Zero Temperature Coefficient	±0.006°/℃	±0.006°/℃	±0.006°/℃	±0.006°/℃	±0.006°/℃	-40~85℃
Sensitivity Temperature Coefficient	≤100 ppm/℃	≤100 ppm/℃	≤100 ppm/℃	≤100 ppm/℃	≤100 ppm/℃	-40~85℃
Power On Time	0.5s	0.5s	0.5s	0.5s	0.5s	-
Response Time	0.02s	0.02s	0.02s	0.02s	0.02s	-
Response Frequency	1~20Hz	1~20Hz	1~20Hz	1~20Hz	1~20Hz	-
Output Signal	4-20mA
Electromagnetic Compatibility	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms, 3 Times/Axis (half sinusoid))
Anti-Vibration	10grms, 10～1000Hz
Protection Grade	IP67
High Seismic Performance	＞2000g
Cables	Standard 1m length, wearproof, grease proofing, wide temperature, shielded cables 4*0.4mm²
Dimension	904026mm
Weight	165g (without cable)

*Note: This Technical data only list ±10°, ±30°, ±60°, ±90°, ±180° series for reference, other measuring range please refer to the adjacent specifications.

Electrical Specification

Item	Min	Standard	Max	Condition
Power Supply	9V	12V, 24V	36V	Standard
Working Current	-	50mA	-	-
Output Load	-	400Ω	1000Ω	Resistive
Working Temperature	-40℃	-	+85℃	-
Store Temperature	-55℃	-	+125℃	-

4-20mA Inclinometer Sensor Electrical Wiring

Single Axis Wiring Definition

Line Color Function	BLACK	WHITE	GREEN	RED
Line Color Function	GND Power negative	Out X X Axis output current	NC Spare line	Vcc Power supply Power positive

Dual Axis Wiring Definition

Line Color Function	BLACK	WHITE	GREEN	RED
Line Color Function	GND Power negative	Out X X Axis output current	Out Y Y Axis output current	Vcc Power supply Power positive

4-20mA Inclinometer Sensor Dimensions Diagram

Inclinometer Sensor Installation Direction Diagram

The installation must guarantee the inclinometer sensor bottom is parallel to measured face，and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

Tips: Definitions of inclinometer sensor key specifications.

Resolution: It refers to the smallest change value of the measured value that can be detected and distinguished by the inclinometer sensor within the measurement range.
Absolute accuracy: refers to the combined error of absolute linearity, repeatability, hysteresis, zero point deviation, and horizontal axis error of the inclinometer sensor, under normal temperature conditions.
Long-term stability: It refers to the deviation between the maximum value and the minimum value of the inclinometer sensor after one year of long-term work, under normal temperature conditions.
Response time: It refers to the time required for the sensor to output and reach the standard value when the angle of the inclinometer sensor changes once.
