Hydraulic Cable Cutter, Φ50/75/85/95mm

0 reviews • Write a review

from

$249.11

Ex Tax: $249.11

Stock: In Stock
Model: RDDLZ-CC-CPC
Weight: 1.00
SKU: RDDLZ-CC-CPC

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

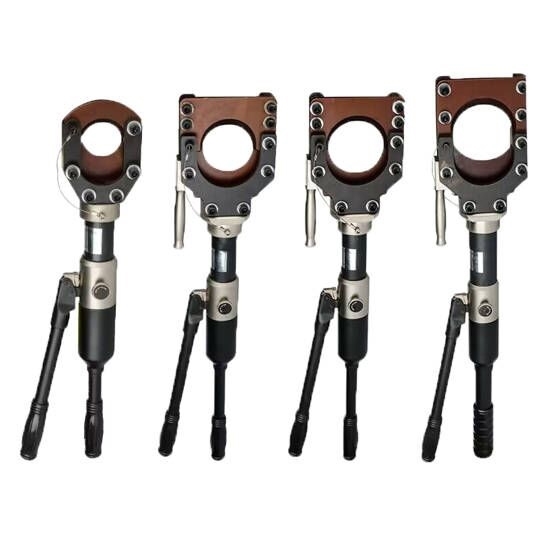

This cable cutter is a hydraulic cable-cutting tool, especially for cutting Φ50/75/85/95mm copper, aluminum or armored cables, suitable for electricians, construction workers and other professionals who work with cables and wires.

Specifications

Model	RDDLZ-CPC-50	RDDLZ-CPC-75	RDDLZ-CPC-85	RDDLZ-CPC-95
Cutting Range	Copper-aluminum/armored cable below Φ50mm	Copper aluminum/armored cable below Φ75mm	Copper-aluminum/armored cable below Φ85mm	Copper-aluminum/armored cable below Φ95mm
Output	7T	8T	8T	10T
Weight	6.6kg	9.8kg	9.8kg	10.6kg
Package Size	610x170x105mm	770x185x110mm	770x185x110mm	825x180x110mm
Note: This hydraulic cable cutter is not suitable for cutting steel or steel wire.

Dimensions (Unit: mm)

Details

Applications

Hydraulic cable cutter (cable shear) is a common tool widely used in electrical engineering, construction, telecommunications and manufacturing industries to cut copper, aluminum and armored cables and wires.

Tips: What is a hydraulic cable cutter?

A hydraulic cable cutter is a tool used to cut thick cables and wires. It is designed to use hydraulic pressure to cut through materials that are too tough for traditional manual cutters. The tool consists of a hydraulic pump, hydraulic hoses, and a cutting head that contains the cutting blade.

When the hydraulic pump is activated, it creates pressure that is transmitted through the hydraulic hoses and to the cutting head. The pressure causes the cutting blade to close, cutting through the cable or wire. Hydraulic cable cutters are typically used in industrial and construction settings where large cables and wires need to be cut quickly and efficiently. They are also commonly used by emergency responders to quickly cut through cables and wires in rescue situations.
