Armored Cable Cutter, 3x250/400/600 MCM

0 reviews • Write a review

from

$209.23

Ex Tax: $209.23

Stock: In Stock
Model: RDDLZ-CC-002
Weight: 1.00
SKU: RDDLZ-CC-002

Available Options

Model

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

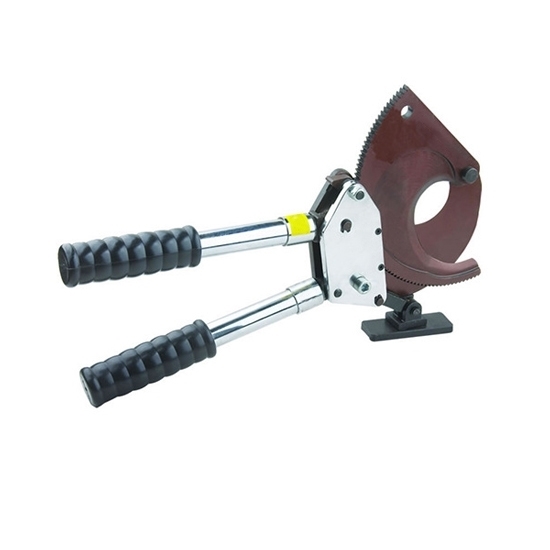

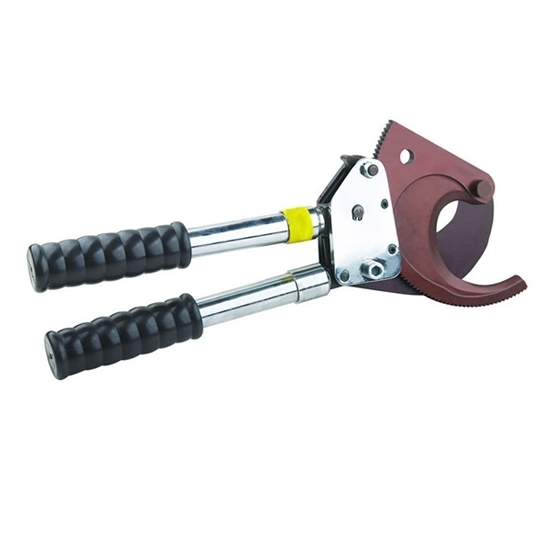

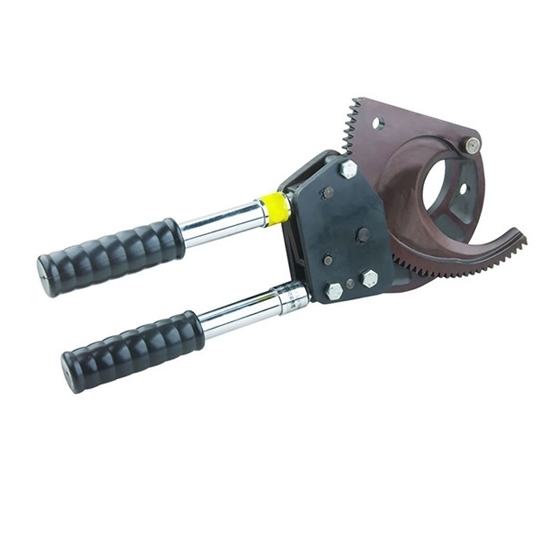

Manual armored cable cutter can cut copper, aluminum, armored and communication cables. It is a ratcheting cable cutter that provides a 3x250/400/600 MCM cutting range, used in electrical engineering, construction, telecommunications and manufacturing.

Specifications

Model	RDDLZ-HHD-75J	RDDLZ-HHD-95J	RDDLZ-HHD-100J
Total Length	460mm	480mm	530mm
Weight	3.7kg	5.2kg	6.5kg
Package Size	460x240x40mm	480x290x40mm	530x310x50mm
Handle Material	Steel
Handle Length	370mm
Cutting Range	3x120mm²(250MCM) or Below Φ75mm Copper-Aluminum Wire and Armored Cable	3x185mm²(400MCM) or Below Φ95mm Copper-Aluminum Wire and Armored Cable	3x300mm²(600MCM) or Below Φ100mm Copper-Aluminum Wire and Armored Cable
Cutting Range	3600 Pairs of Communication Cables
Armored Cable	√	√	√
Copper Aluminum Cable	√	√	√
Steel Strand	×	×	×
Copper Core Aluminum Stranded Wire	×	×	×
Steel Wire Rope	×	×	×

Purchase Notes:

13J and 30J can cut the steel-stranded wire and copper core aluminum-stranded wire, but cutting cables is strictly prohibited.
52J, 75J, 95J, 100J and 130J can cut armored cables, and it is strictly forbidden to cut steel strands, steel wire ropes, etc.
Because the 100J and 130J can cut thick cables and armored cables, it can be laborious when cutting small cables. When it is not particularly necessary to cut thick cables, please choose models below 95J.

Details

Applications

Armored cable cutter (cable shear) is a common tool widely used in electrical engineering, construction, telecommunications and manufacturing industries to cut copper, aluminum and armored cables and wires.

Tips: What can a cable cutter do?

Electrical work: Cutting and stripping electrical wires is a common task for cable cutters. They can be used to cut through the insulation and wires of different gauges.
Construction: Cable cutters are often used to cut through steel cables, ropes, and chains in construction projects, such as bridge-building or scaffolding.
DIY projects: Cable cutters can be useful for cutting through a variety of materials in DIY projects, such as wire mesh or plastic tubing.
