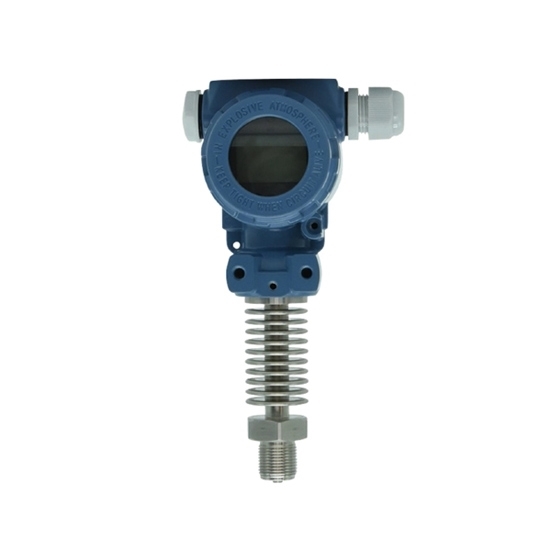

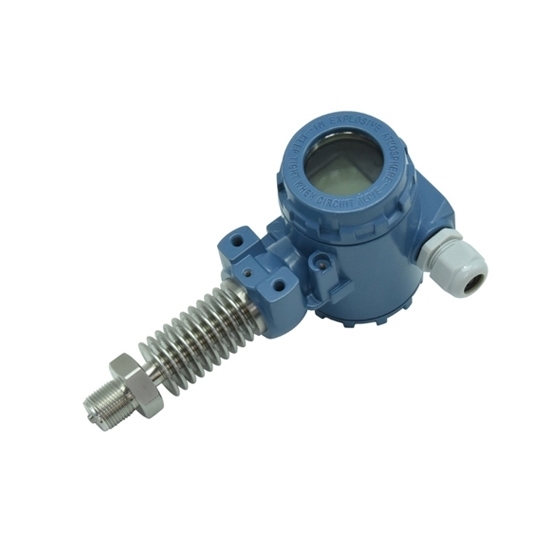

High Temperature Explosion Proof Pressure Sensor, -20℃~350℃

0 reviews • Write a review

from

$266.15

Ex Tax: $266.15

Stock: In Stock
Model: RDDLZ-PRES-PT85
Weight: 1.00
SKU: RDDLZ-PRES-PT85

Available Options

Short Description

Power Supply

Output Signal

Pressure Type

Measuring Range

Thread of Pressure Connection

Quantity of Cooling Fins

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cost-effective stainless steel explosion-proof pressure sensor for steam/fuel oil. It works at -20℃~350℃ and provides an optional 0.1-0-60MPa measurement range, 4-20mA, 0-5V, 1-5V, 0-10V, RS485 output signal, DC 12V/24V power supply and 5 to 15 cooling fins, suitable for petrochemical, pharmaceutical, hydraulic and pneumatic systems.

Specifications

Model	RDDLZ-PT85
Pressure Range (Optional)	0.1-0-60MPa
Accuracy	0.25%FS, 0.5%FS
Output Signal (Optional)	4-20mA, 0-5V, 1-5V, 0-10V, RS485
Power Supply (Optional)	DC 12V, DC 24V
Process Connector (Optional)	4-20mA, 0-5V, 1-5V, 0-10V, RS485
Electrical Connector	2088 Junction Box
Loading Capacity	Current Type: R=(U-8V)/0.02Ω
Temperature Compensation	0-85℃
Working Temperature	-20-150℃, -20-350℃
Safety Overload	150%
Extreme Overload	200%
Temperature Drift	0.02%FS/℃
Long Term Stability	0.2%FS/year
Hold Liquid Material	304 SS (Default), 316L SS(Contact Us)

Dimension (Unit: mm)

Pressure Transmitter Electrical Wiring Diagram

Tips: Advantages of explosion proof pressure sensors

Safety: These sensors are enclosed in robust, sealed housings that prevent any sparks or heat from igniting the surrounding environment, ensuring safe operation in explosive atmospheres.
Compliance: They meet stringent safety standards (like ATEX or IECEx) required for hazardous industries, ensuring regulatory compliance.
Durability: Explosion-proof sensors are built to withstand harsh conditions, including extreme temperatures, high pressure, and corrosive substances, enhancing their longevity.
Reliability: Even in dangerous environments, they provide consistent, accurate pressure readings, which are critical for maintaining operational safety and efficiency.
Versatility: Used in a variety of industries like oil and gas, chemical plants, and mining, they ensure safe monitoring and control in highly volatile conditions.
