Handheld Digital Panel Meter For Load Cells

0 reviews • Write a review

from

$349.56

Ex Tax: $349.56

Stock: In Stock
Model: RDDLZ-DPM-920H
Weight: 1.00
SKU: RDDLZ-DPM-920H

Available Options

Sampling Rate

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

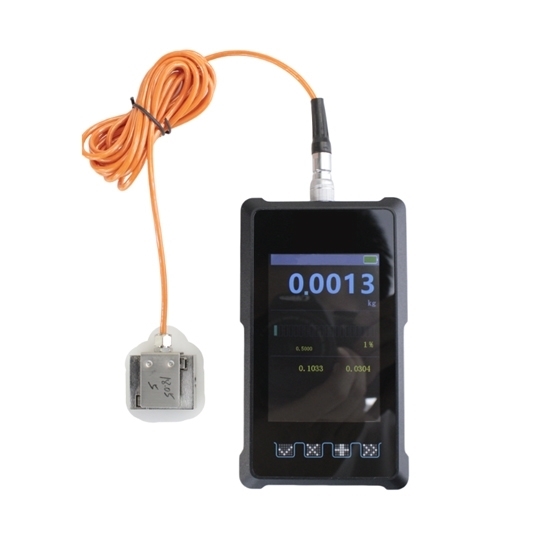

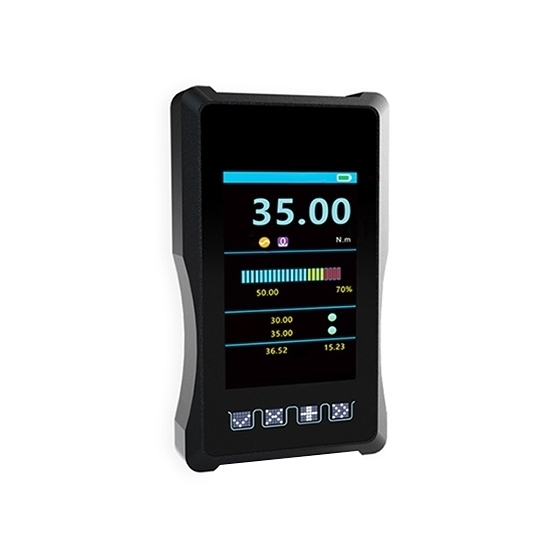

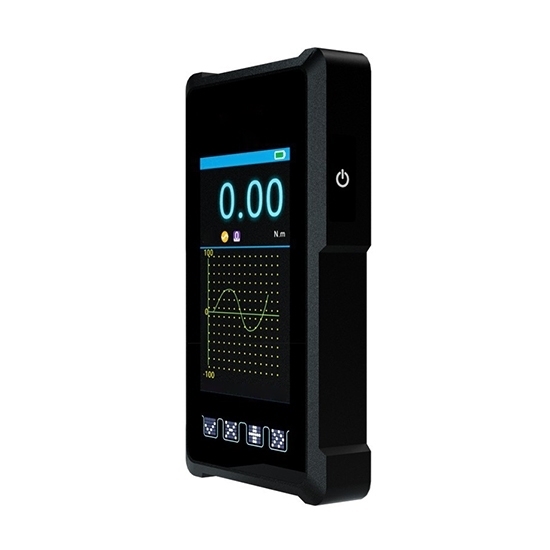

The high performance handheld digital panel meter integrates a number of intelligent features, automatic calibration and recognition of TEDS sensor parameters, real-time capture of peaks and valleys, high-speed sampling rate of 2000Hz, high-speed sampling rate up to 12800Hz. support for wireless calibration, a key to restore the settings. It supports wireless calibration and key restoration settings. It has a wide display range from -99999 to 999999, and provides multiple alarm modes to meet the needs of complex on-site force measurement.

Specifications

Model	RDDLZ-DY920-H	RDDLZ-DY920-J
Sampling Rate	High speed version 2000Hz	Extreme version 12800Hz (six speeds selectable)
Range	Unlimited external sensor range
Accuracy	0.1%	0.05%
Resolution	0.01%
Display Bits	5 digit (including decimal point)	6 digit (including decimal point)
Display Unit	kN/kg/lb/N/g/N-m
Housing Material	Aluminum alloy
Non-linear	Meter better than 0.01%
Display Division	-99999 ~ 9999999
Signal Input	-15~+15mV
Display	4-inch color electric touch display
Temperature Drift	Less than 20ppm
Built-in Battery	3200mAh battery, full battery life of 10 hours of continuous operation, low battery reminder
Sampling Rate Adjustment	50Hz~12800Hz Six adjustable levels
Display Interface	Real-time curve, historical curve/table, peak and valley value display, switchable video screen
Real-time Monitoring	Automatically capture peaks and valleys, analyze sensor status
Setting Parameters	Backup and restore, one-key restore
Wireless Calibration	Simply enter the sensor parameters to complete the calibration
Smart Sensor	Automatic calibration and modification of the corresponding units and decimal points (TEDS Smart Sensor)
Connecting Cables	Use TYPE-C cable (optional RS485) to connect directly with PC to export simulation data.
Interface Test Interface	View self-eye, wireless communication test data
Data Saving	Peak and valley value history data save 200 groups, power down not lost
Alarm Mode	Peak alarm, lower limit alarm, peak and valley value alarm, over-range network letter self-test alarm
Capture Mode	Threshold-Threshold, Threshold-Time, Threshold-Keypad

Dimension (unit: mm)

Details

Wiring Diagram

Sampling Speed

The higher the sampling speed, the closer the measured value is to the actual value. RDDLZ digital panel meter adopts high-performance acquisition chip, the acquisition speed can reach 12800Hz.

Application

Tips: Handheld digital panel meter features

Handheld digital panel meter sampling rate of 50Hz to 12800Hz six adjustable, high sampling rate to capture the peak more accurately.

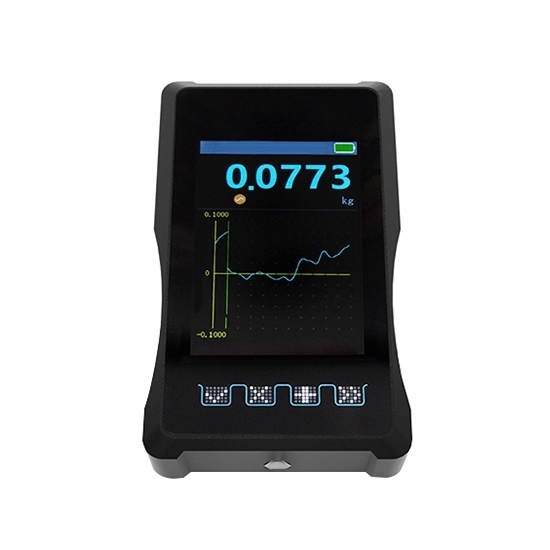

Real-time curve and the last historical curve selection display, view the working process of the force situation.
Real-time automatically capture the peak and valley values of the equipment, analyze the status of the sensor.
Parameter backup and recovery, modify the parameters can also be restored with one key.
No weight calibration, just enter the sensor parameters to complete the calibration.
Digital panel meter using TEDS intelligent sensor, power on automatic calibration, modify the corresponding unit and decimal point low battery when the meter interface shows low battery logo, plug in the charger shows charging logo, charging light indicator.
Use TYPE-C cable (optional RS485) to connect directly with the PC for Modbus communication, easy to export force data.
Multiple alarm options, upper limit alarm, lower limit alarm, peak/valley alarm, 1.2 times over-range automatic alarm.
