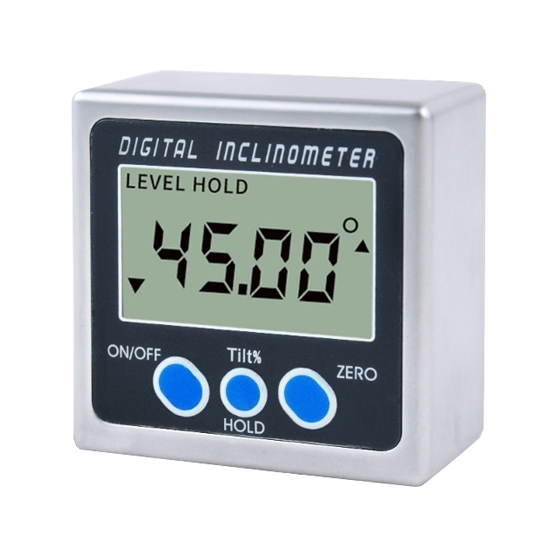

Digital protractor with magnetism on three sides, measuring range 4x90°, single axis digital angle meter with two 7 batteries, convenient and durable, use the distributed screwdriver to unscrew the battery compartment on the back to replace the battery. The digital angle finder is widely used in wood processing, auto repair, machining, precise positioning of the working angle of machine tools and the rotation angle of the arm of large vehicles, etc.

Specification

Features

• The single-axis digital protractor allows 4x90° single axis measurement in a vertical position

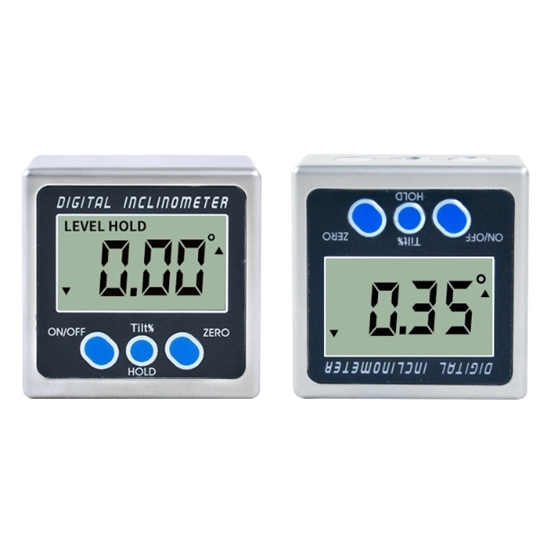

• When the tilt box is inverted, the angle readings on the LCD will automatically flip upwards for easy reading.
• Portable size, easy to use with other measuring tools to expand the measurement range.
• Mini digital protractors can be used for absolute measurement or relative measurement.
• Single axis digital protractor with three powerful magnets on the bottom for easy attachment to ferrous measuring objects.

Dimension Unit (mm)

Applications

Tips: What is the repeatability of a digital protractor angle finder?

Under the same measurement conditions for the four positions of the inclinometer 0 °, 90 °, 180 °, and 360 °, respectively, five readings, the difference between the maximum and minimum reading of each position for the position of the indicated value repeatability. The repeatability of the digital protractor is determined by the maximum value of the repeatability of the scale in the four positions.
