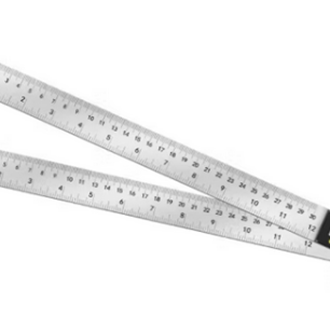

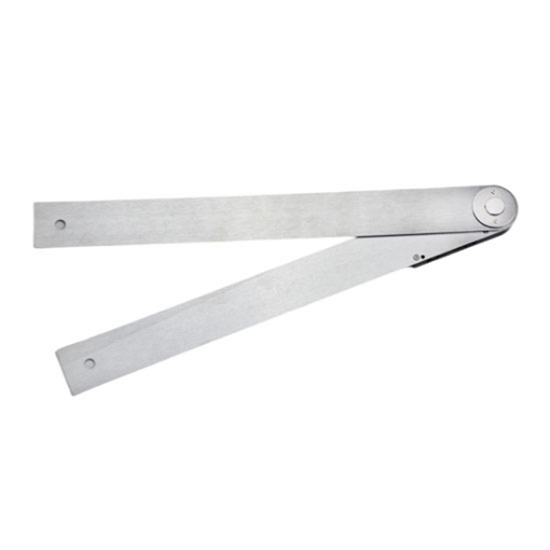

2 In 1 Digital Angle Finder Protractor, 200mm

0 reviews • Write a review

from

$135.96

Ex Tax: $135.96

Stock: In Stock
Model: RDDLZ-DP-200
Weight: 1.00
SKU: RDDLZ-DP-200

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 in 1 digital protractor measuring range 0~360°, length 200mm/7", accuracy ±0.3°. The digital angle finder uses CR2032 button cell batteries for over 2000 hours of operation, saving power and extending battery life.

Specification

Model	RDDLZ-DP360-200
Measuring Range	0~360
Body Length	0-200mm(7")
Indexing Value	0.05°
Accuracy	±0.3
Repeatability	0.05°
Power Supply	3V CR2032 * 1 grain, life more than 2000 hours
Package Type	Color card + blister package
Weight with Packaging	211g

Features

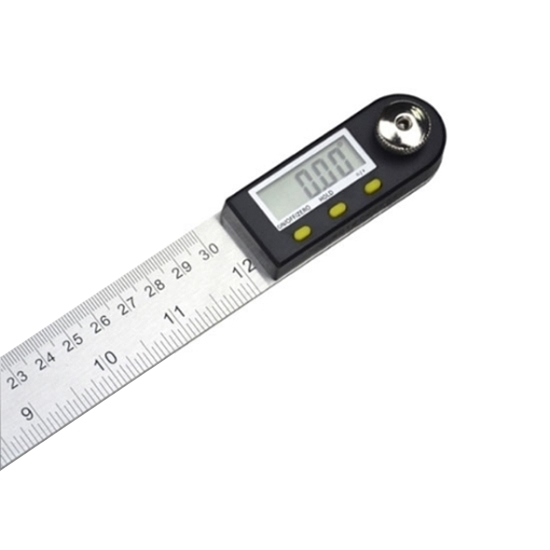

Digital protractor with digital display, easy to read.
Digital angle protractor with data lock function.
Unit conversion, decimal part in degrees, and minutes switching.
The 2 in 1 digital protractor has both angle measurement and metric length measurement functions for measuring the internal and external angles of workpieces.
The reliable locking function allows you to lock the angle at any desired position.
Turn clockwise to release the knob.
Drawer-type battery compartment for easy battery replacement.
Use 3V CR2032 button cell battery, service life over 2000 hours, negative pole facing up, positive pole facing down when installing the battery.

Details

Applications

Tips: How does the digital angle finder protractor work?

When the axis in the digital angle finder protractor base is rotated in one direction, the count increases, and when the direction of rotation is changed, the count decreases. The count is related to the initial position of the goniometer. When the goniometer is initialized, its count is set to 0. By calculating the angle of rotation, the position and speed can be easily measured.
