HMI Touch Screen, 10 Inch, 1024 X 600

0 reviews • Write a review

from

$642.75

Ex Tax: $642.75

Stock: In Stock
Model: RDDLZ-HMI-10
Weight: 1.00
SKU: RDDLZ-HMI-10

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

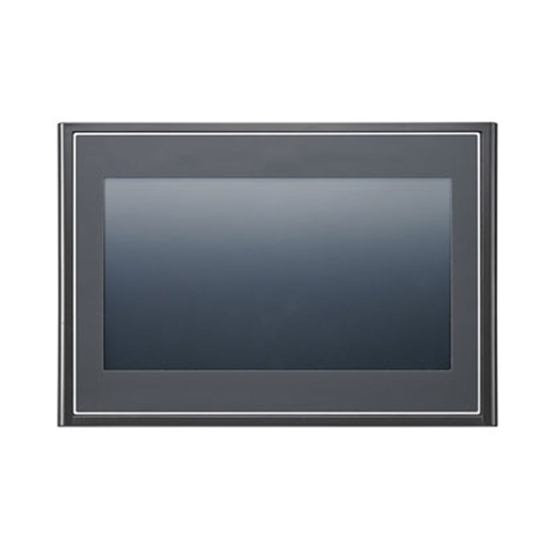

Human machine interface manufacturer direct sales, industrial hmi touch panel with 10" TFT LCD display, 1024 x 600 pixels, equipped with HMI programming software DOPSoft 4.0 and built-in Lua editor, it can be easily programmed, and has alarm / history / user rights functions for efficient management.

Specification:

Model		RDDLZ-DOP-110WS	RDDLZ-DOP-110CS
LCD Module	Display	10.1" TFT LCD
	Resolution	1024 x 600 Pixels
	Back Light	LED Back Light
	Back Light Brightness	450 cd/m²	300 cd/m²
	Back Light Life	30000^*1 Hours	20000^*1 Hours
	Display Area	225.52 x 128.10 mm	226 x 128.7 mm
MCU		ARM Cortex-A8 (800MHz)
Flash ROM		256 MB Bytes	256 Mbytes
RAM		512 MB Bytes	256 Mbytes
Touch Panel		Four-wire resistor, over 10,000,000 pressing times
Buzzer		Multi-Tone Frequency (2K ~ 4K Hz) / 80dB
Ethernet Interface		1 Port^*2, 10/100 Mbps auto-sensing	/
Audio Output	Buzzer	/	Multi-Tone Frequency (2K ~ 4K Hz) / 80dB
	AUX	/	N/A
USB		1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0
SD		N/A
Serial COM Port	COM1	RS-232 (supports hardware flow control)
	COM2	RS-232 (supports hardware flow control) / RS-485^*2
	COM3	RS-422 / RS-485^*2
RTC		Built-in
Cooling		Natural air circulation
Certification		CE, UL
Waterproof		IP65 / NEMA4 / UL Type 4X
Operation Voltage^*3		DC +24V (-15% ~ 15%)^*2
Voltage Endurance		A599V for 1 minute (between charging DC24 terminal and FG terminals)
Power Consumption^*5		Max 11 W^*3	10.4 W^*3
Backup Battery		3V lithium battery CR2032 × 1
Backup Battery Life		Depends on the temperature used and the conditions of usage, usually about 3 years or more at 25° C
Operating Temperature		0℃ ~ 50℃
Storage Temperature		-20℃ ~ 60℃
Ambient Humidity		10% ~ 90% RH (0 ~ 40° C), 10% ~ 55% RH (41 ~ 50° C), Pollution Degree 2
Vibration		IEC 61131-2 compliant 5Hz ~ 8.3Hz = Continuous: 3.5mm, 8.3Hz ~ 150Hz = Continuous: 1.0g
Shock		IEC 60068-2-27 compliant 15g peak for 11ms duration, X, Y, Z, directions for 6 times
Dimensions (W) x (H) x (D)		270 x 180.9 x 47.75mm	272 x 200 x 61mm
Mounting Dimension W) x (H)		255 x 170.5mm	261.3 x 189.3mm
Weight		1.1kg	1.4kg

Features

1. RDDLZ HMI Embedded Linux System Open system for flexible and stable program development.
2. New software DOPSoft 4.0 offers more complete functions and a better interface.
3. Compliant with industrial operation environments, CE / UL Certified Compliant with CE and UL standards.
4. Ethernet Communication Connects to master device, or PLC with high-speed Ethernet communication.
5. Communication Isolation COM and Ethernet ports with built-in isolation circuits enhance communication stability. FTP/eMail Supported Simple data transmission and real-time status report.
6. Easy setting to play vivid GIF elements
7. Simple and easy structural programming language to meet various demands.
8. Pressing times >10,000,000 Effective pressing times increased through strict endurance tests.
9. IP65 Rating, the front case protects the HMI from snow, rain, and dust.
10. Diagnostics Function Collects and solves issues remotely, power Isolation, protects the HMI from accidental surge interference,
11. VNC Remote Monitoring Remote control with mobile devices, supports PDF and TXT Reader, PDF and TXT files supported, User-Friendly, intuitive operation interfaces for users.

RDDLZ-DOP-110WS Dimension (Unit: mm)

RDDLZ-DOP-110CS Dimension (Unit: mm)

Tips: What is HMI?
HMI Human Machine Interface is used to connect industrial control equipment such as programmable logic controllers (PLCs), frequency converters, DC speed regulators, meters, etc., using the display screen to display and write work through input units (such as touch screen, keyboard, mouse, etc.) The digital device that realizes the information interaction between human and machine by parameter or input operation command is composed of hardware and software.
