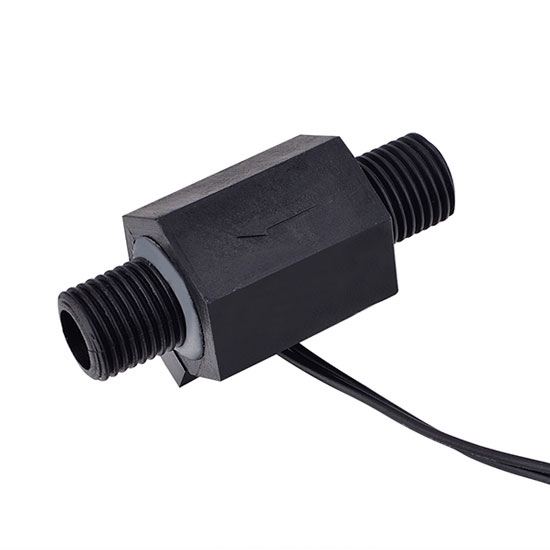

G1/4" Magnetic Water Flow Switch

0 reviews • Write a review

from

$48.29

Ex Tax: $48.29

Stock: In Stock
Model: RDDLZ-MR-2253
Weight: 1.00
SKU: RDDLZ-MR-2253

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetic water flow switch is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.

Specification

Model	RDDLZ-MR-2253
Thread	G1/4"
Max Contact Power	50W
Max Operating Flow Rate	0.25~6L/min
Max Switch Voltage	350VDC/ 300VAC
Min Break Down Voltage	500VDC
Max Switch Current	DC0.7A/ AC0.5A
Max Carry Current	2.5A
Max Contact Resistance	100mΩ
Min Insulation Resistance	10¹⁰Ω
Contact Life	10⁷Times
Operating Temperature	-1 ~ +85℃
Applicable Environment Temperature	-40 ~ +125℃
Min Flow Rate	≥1.5L/min
Max Carry Pressure	1.2MPa

Dimensions

Tips: Magnetic water flow switch in central air conditioning system

The water flow switch is installed on the water outlet of the central air conditioning, which can prevent the host from running without load. If the water is insufficient, the flow switch will sense the corresponding flow rate and convert the flow signal into switch action, which will stop the main machine. In addition, the water flow switch should be installed on the evaporator outlet pipe. If it is installed on the intake pipe, when the pipe between the water flow sensor and the evaporator leaks, it will lead to the flow switch failure. And if the flow sensor is installed on the evaporator outlet pipe, the flow of the switch must be close to the main engine when it is in normal operation. If any part of the pipe leaks, the water flow switch will act to shut down the host without enormous losses.
