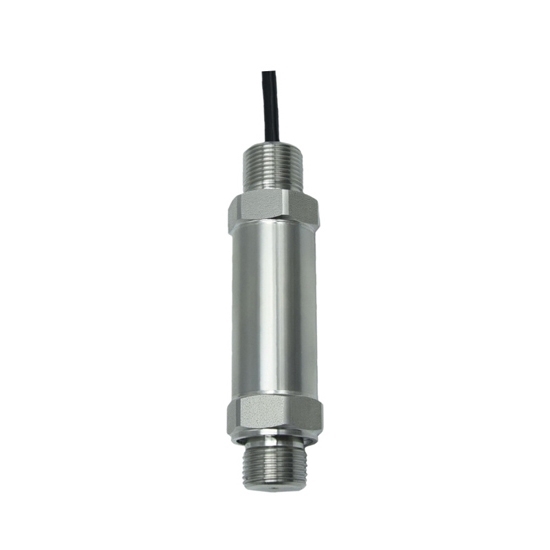

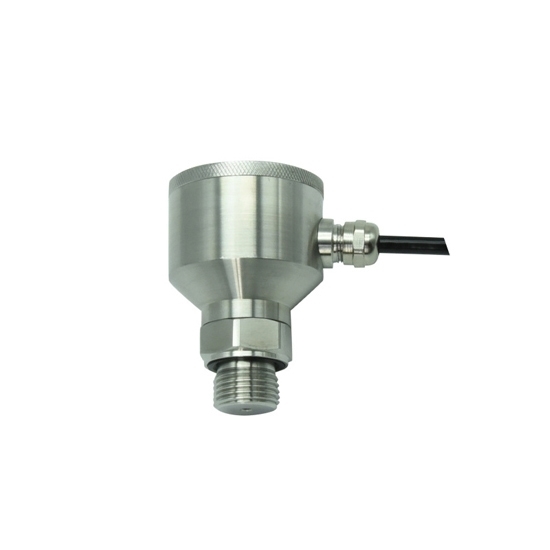

Low price explosion-proof pressure transmitter for sale online. It is available with stainless steel material, measuring range -0.1-0-100MPa, output signal 4-20mA, 0/1-5/10V, RS485, threaded connections M20*1.5, great for measuring water pressure, air pressure, oil pressure, hydraulic pressure, etc.

Specifications

• Model: RDDLZ-PT8331
• Range: -0.1-0-100MPa
• Output: 4-20mA (Default), 0/1-5/10V, RS485
• Process Connection: M20*1.5 (Default), Contact Us for Others.
• Electrical Connection: Waterproof Outlet
• Accuracy: 0.1%FS, 0.25%FS, 0.5%FS
• Power Supply: 5V DC, 24V DC, 9-36V DC
• Load Capacity: Current Type: R=(U-8V)/0.02Ω
• Temperature Compensation: -10-70℃
• Operating Temperature: -20-100℃
• Safety Overload: 150%
• Ultimate Overload: 200%
• Temperature Drift: 0.02%FS/℃
• Long-term Stability: 0.2%FS/year
• Material (Liquid Contact): 304 or 316L
• Pressure Type: Gauge Pressure (Standard) or Absolute Pressure (Contact Us)

Note: If other process connections and accuracy specifications are required, please contact us.

Dimension (Unit: mm)

Applications

Tips: Why choose an explosion-proof pressure transmitter?

The explosion-proof pressure transmitter is crucial in environments where there is a risk of explosive atmospheres due to the presence of flammable gases, vapors, or combustible dust. These transmitters are specifically designed to operate safely in hazardous locations, minimizing the risk of ignition and ensuring the well-being of both personnel and equipment.

Explosion-proof pressure transmitters are constructed with robust materials and sealed enclosures to contain any potential explosions within the device. They undergo rigorous testing and adhere to industry standards to guarantee their suitability for hazardous environments. The housing is designed to withstand pressure and impact, reducing the likelihood of damage that could lead to a hazardous situation.

These transmitters are commonly used in industries such as oil and gas, chemical processing, mining, and manufacturing where explosive atmospheres are prevalent. By utilizing explosion-proof pressure transmitters, operators can accurately measure and monitor pressure in real-time without compromising safety. The implementation of such specialized devices ensures compliance with safety regulations and standards while providing reliable pressure data in environments with inherent explosion risks.
