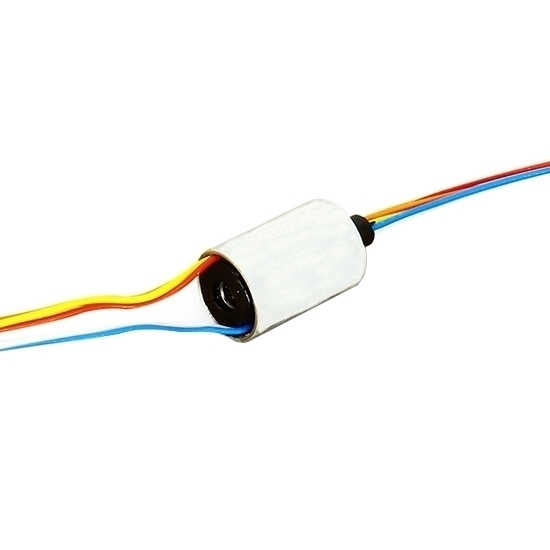

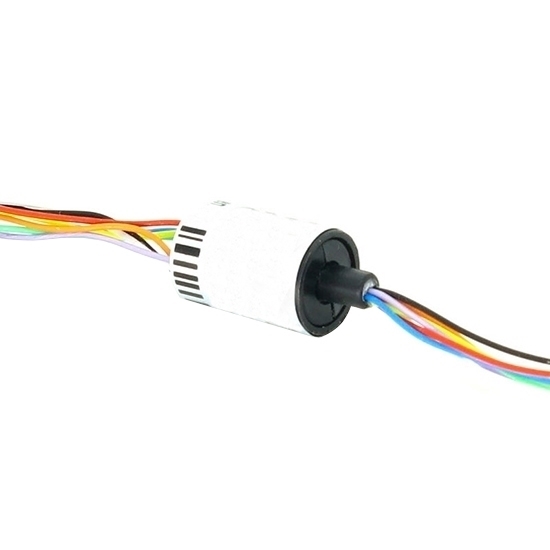

Electrical Miniature Slip Ring, 4/6/8/12 Wires, 1A, 6.5mm

0 reviews • Write a review

from

$71.38

Ex Tax: $71.38

Stock: In Stock
Model: RDDLZ-MNTSR-065
Weight: 1.00
SKU: RDDLZ-MNTSR-065

Available Options

Number of wires and current

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Core technology uses gold-gold contacts to ensure stability and longevity. The 90° angle V-groove make a wider contact surface, smoother rotation, low torque and low dynamic resistance. Use of slip rings include some consumer electronics, such as high-speed balls, drones, electronic pan/tilt stabilizers, and other compact devices.

Customizable specifications

Number of wires (circuits), outer diameter size, current, voltage range, rotating speed
Combined transmission of video, USB, HDMI, fiber, RF, Ethernet and other signals
Combined transmission of medium including gas, liquid, etc

Features

With a 6.5mm outer diameter, the miniature slip ring is the world's smallest slip ring.
The torque is very small, less than 0.06N.m.
Standard models support 2~12 wires (2A per wire), number of slip ring (ring) wires is customizable.
Standardized products have sufficient inventory and specification can be customized.
Easy to install, no flange required, only need to direct wiring at both ends.

Specification

Model	RDDLZ-M065A
Outer Diameter	6.5mm
Rotating Speed	150 rpm
Working Temp.	-30℃~80℃
Working Humidity	0~85% RH
Contact Material	gold-gold
Housing Material	plastic
Torque	0.05N.m (+0.01N.m/6 circuits)
Working Life	10 millions for ref (depends on working conditions)
Rated Voltage	0~240VAC/VDC
Lnsulation Resistance	≥300MΩ/300VDC
Lead Wire Spec.	AWG30#teflon,silver plated
Lead Wire Length	standard 150mm (can be customized)
Certification	CE, RoHS
Dielectric Strength	300VAC@50Hz,60s
Electrical Noise	<0.01Ω
IP Grade	IP51

6.5mm 4/6/8/12 Wires Miniature Slip Ring Dimension Drawing

Standard Model List

Model	Wires no.	Max. current/circuit	Length L (mm)
RDDLZ-M065A-0401	4	1A	11.8
RDDLZ-M065A-0601	6	1A	11.8
RDDLZ-M065A-0801	8	1A	11.8
RDDLZ-M065A-1201	12	1A	17.6

Miniature Slip Ring Model Description

Color Code of Lead Wire

ring #	1	2	3	4	5	6	7	8	9	10	11	12
color	BLK	BLK	RED	RED	YEL	GRN	BLU	PUR	GRY	WHT	PINK	LGT BLU

Miniature Slip Ring Installation

Fixing by stator part of slip ring: put slip ring into sleeve of static part , fix flange with screws , or fix stator wires.
Fixing by rotor part of slip ring: because of small torque, only need to fix rotor wire, or fix a sleeve on rotor part to rotate the slip ring.

Tips: What is a miniature slip ring?

The miniature slip ring is also known as capsule slip ring, which is an extension of the cap slip ring. Compared to the cap slip ring, it has a smaller size and more compact in design. Miniature slip ring are mainly used to transmit precision signal and weak current. It can provide current/signal combination schemes (such as video, control, sensing, Ethernet, power supply, etc.) with low torque, low loss, low electrical noise, and maintenance-free. Suitable for environments with small installation space requirements, such as security monitoring, robots, total stations, test instruments, slip rings on the turntable, etc.
