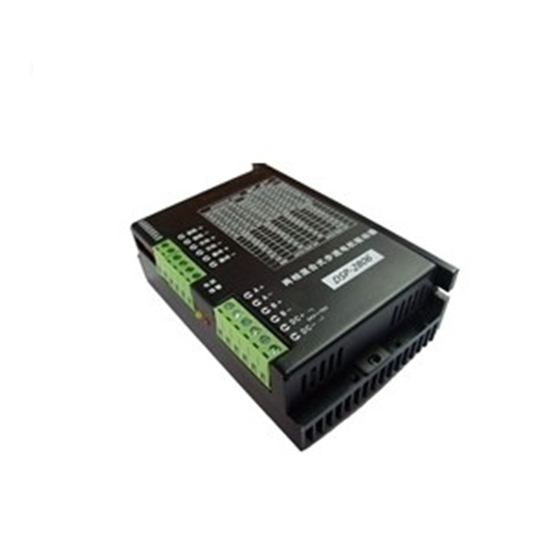

Digital Stepper Motor Driver, 2 Phase , DC 24-70V

0 reviews • Write a review

from

$106.35

Ex Tax: $106.35

Stock: In Stock
Model: RDDLZ-STEP-D2470
Weight: 1.00
SKU: RDDLZ-STEP-D2470

Available Options

Short Description

Input Pulse Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Dimension (Unit: mm)

Tips: what circumstance is offline signal of hybrid stepper driver generally used?
When the offline signal FREE is low level, the current output to the motor by the driver is cut off and the motor rotor is at free state (offline state). as for some automatic device, under the circumstance that the power of drive is not disconnected, it is required to directly rotate the motor shaft (manual mode) to put the signal FREE on the bottom, so that the motor is at offline state. As for manual operation or adjustment, after manual completion, the signal FREE can be put in higher position to realize continuous automatic control.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Basics Information
Model	RDDLZDS2806
Size	135 x 77 x 46 mm
Phase	2
Weight	0.2 kg
Supply Power	24-70V DC
Capacity	0.2 kVA
Output Current	Peak 6.0A/Phase (Max.)
Driver Method	Space vector bipolar constant current drive
Isolation Resistance	>100 MΩ
Dielectric Strength	1kV, 1Min
Cooling Method	Natural Convection
Environment
Operation Environment	Temperature		-5℃~+40℃
	Humidity		<80% RH
	Vibration		5.9m/s²(Max.)
Storage Environment	Temperature		-40℃~+55℃
	Humidity		<93% RH
Function Description
Functions	Operation Instructions
Signal Interface	PUL	PUL+ is the positive end of the control pulse signal PUL- is the negative end of the control pulse signal
	DIR	DIR+ is the positive end of directional signal DIR- is the negative end of directional signal
	ENA	ENA+ is the positive end of enabling signal ENA+ is the negative end of enabling signal
Motor Interface	A	A+ is connected with the positive end of the A phase winding of the stepping motor A- is connected with the negative end of the A phase winding of the stepping motor
	B	B+ is connected with the positive end of the B phase winding of the stepping motor B- is connected with the negative end of the B phase winding of the stepping motor
	When the A and B two phase windings are switched, the motor direction is reversed
Indicator Light	1. The green light is the power indicating lamp. When the drive is powered on, the green light is always on. 2. The red light is the fault indicating lamp. When the overvoltage and overcurrent faults occur, the trouble lamp is always on.
Note: The default input signal is 5V pulse signal. When 24V input signal is required, please in series with1.8-2kΩ resistance.
