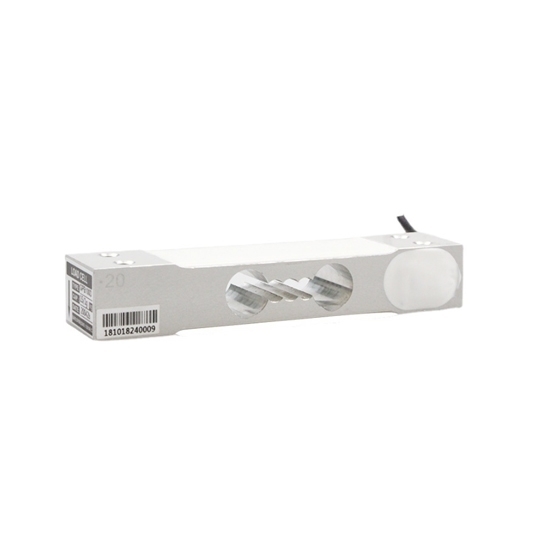

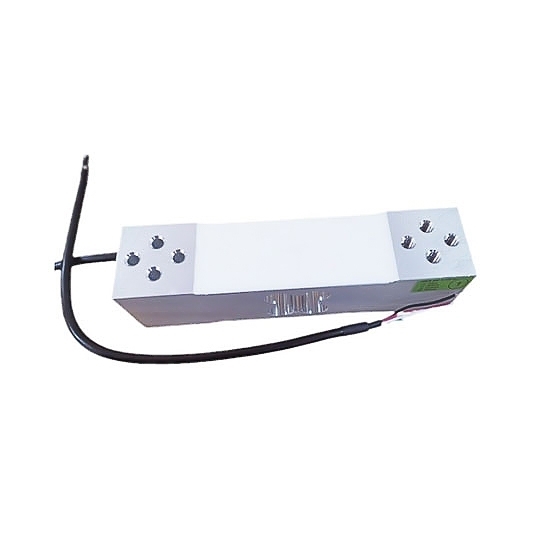

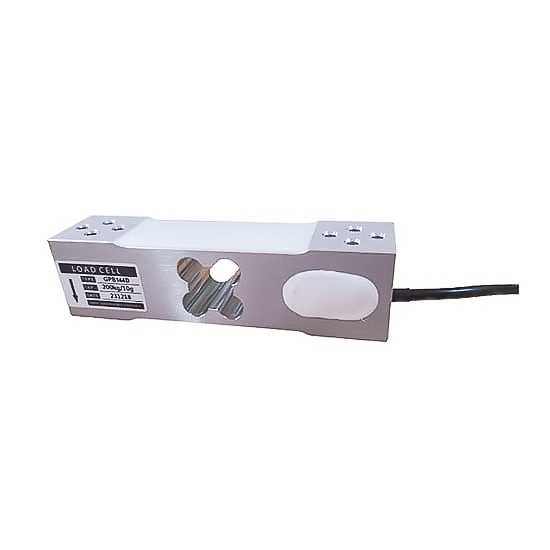

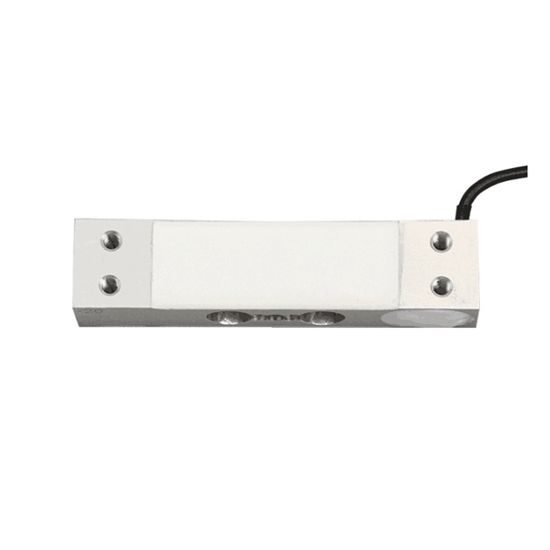

Digital Load Cell, RS232/RS485, 3kg To 350kg

0 reviews • Write a review

from

$110.99

Ex Tax: $110.99

Stock: In Stock
Model: RDDLZ-LC-GPB
Weight: 1.00
SKU: RDDLZ-LC-GPB

Available Options

Output Signal

Measuring Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital display controller to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Digital load cell weight sensor are available in multiple measurement ranges: 0-350kg. They support two output options: RS485 and RS232, with a high accuracy of ±0.05% and a 150% F.S safety overload.

Specification

Model	RDDLZ-GPB100D/RDDLZ-GPB144D
Measuring Range	3/6/10/20/30/40/50/60/100/200/350 (kg)
Resolution	＜5kg: 0.1g, ≤50kg: 1g, 60-100kg: 2g, 150-200kg: 5g, 350kg: 10g
Identification Rate	Default 1 (adjustable based on user application)
Comprehensive Error	0.005% F.S
Zero Temperature Drift	0.002% F.S/°C
Span Temperature Drift	0.002% F.S/°C
Creep	0.018% F.S/30min
Output Signal	RS485 or RS232
Baud	RS485:115200, RS232:19200
A/D Sample Rate	1200 times/second
A/D Resolution	300000
Weight Output Speed	RS485: 3ms, RS232: 20ms
Operating Temperature	RS485: -20~+70°C, RS232: -10~+70°C
Power Supply Voltage	5~12VDC
Safe Load	150%
Ultimate Load	200%
Cable Type	Four-core shielded cable
Cable Length	φ5mm × 1.5m
Protection Level	IP65
Communication Protocol	RS485: MODBUS RTU & factory custom protocol, RS232: factory custom protocol only

Feature

Durable Construction: Made of aluminum alloy with anodized surface treatment for enhanced corrosion resistance and longevity.
Integrated Digital Module: Built-in digital signal processing unit provides high accuracy and stable performance.
Multiple Communication Options: Digital load sensor supports RS485 and RS232 digital signal output, making it compatible with various industrial systems.
Large Weighing Platform: Supports a maximum sample plate size of 400 × 400mm, suitable for different applications.
Pre-Calibrated for Convenience: Factory calibration eliminates the need for on-site adjustments, simplifying installation.
Customizable Weight Acceleration: Digital load cell weight sensor allows users to modify weight acceleration settings to suit different environments.
Adaptive Resolution: Automatically adjusts resolution based on the measured weight, eliminating the need for manual recalibration.
Simple Command Control: RS485 load cell requires only one zeroing command and one weight retrieval command for efficient operation.
Wide Application Range: Suitable for smart storage shelves, intelligent weight cabinets, and waste recycling stations.

Dimension (unit: mm)

3-50kg size:

60-350kg size:

Wiring Definition

RS232	RS485	Color	Description
+V	+V	Red	5~12VDC
GND	GND	Black	0V
RD	A	Green	Connect to external device TXD or A
TD	B	White	Connect to external device RXD or B

Application

Tips: How does an RS485 digital load cell differ from an RS232 load cell?

RS485 and RS232 are both serial communication protocols used in digital load cells, but they differ in performance, distance, and application:

RS232 (Short-Distance Communication):

Supports point-to-point communication (one load cell to one device).
Transmission distance is limited to around 15 meters.
Commonly used for single-device connections, such as computers or display units.

RS485 (Long-Distance & Multi-Device Communication):

Supports multi-drop networking (one load cell can communicate with multiple devices).
Transmission distance extends up to 1200 meters, making it ideal for large-scale industrial applications.
More resistant to electrical interference, ensuring stable data transmission in noisy environments.
