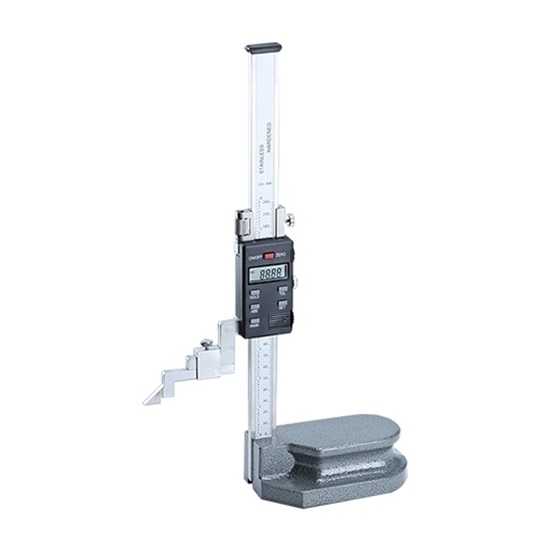

RDDLZ digital height gauge for sale online with a measuring range of 0-600mm, voltage 1.5V, resolution0.01mm, error ±0.05mm. A vernier height gauge is a measuring device that consists of the base, bracket, ruler body, ruler frame, measuring base, measuring jaws, and display screen to measure height.

Specification

Model: RDDLZ-DHG-600
Range: 0-600mm
Voltage: 1.5V

Resolution: 0.01mm
Error: ±0.05mm
Responding Speed: 1 m/s

Body Material: 4CR13 stainless steel
Battery Type: 1.5 button battery
Weight: 26kg

Dimension (mm)

Details

Application

RDDLZ digital height gauges are also called height gauges. As the name suggests, its main purpose is to measure the height of workpieces, and it is also often used to measure shape and position tolerances, and sometimes to mark lines. Digital height gauges are mainly used in the automotive industry, manufacturing, science, and research industries.

Tips: Digital height gauge troubleshooting

• When the measuring surface of the marking claw is on the same plane as the working surface of the base, the "zero" line and "tail" line of the vernier do not coincide with the corresponding engraved line on the ruler body: The vernier screw can be loosened, and the proper position of the vernier can be adjusted so that it coincides with the corresponding engraved line on the ruler body. When the requirement is met, the vernier screw can be tightened.
• When the measuring surface of the scribing claw is on the same plane as the working surface of the base, the slit of the scribing claw is large.
  Make the measuring surface of the marking claw and the working surface of the base on the same plane, and then put it on the flat plate and add a little grinding powder to grind together to meet the requirements.
