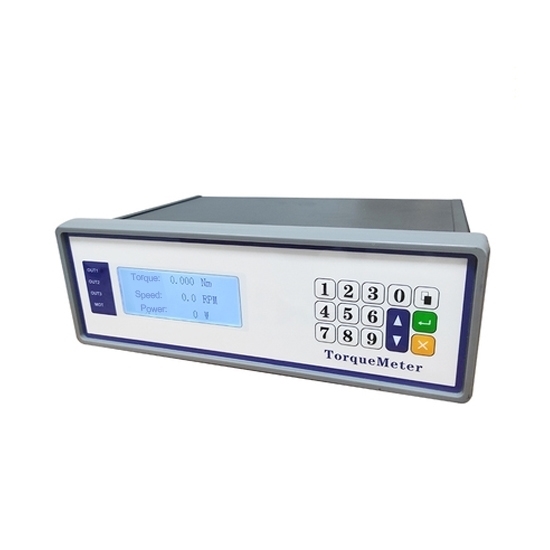

Digital Dynamic Torque Meter, 3 Channel

0 reviews • Write a review

from

$445.59

Ex Tax: $445.59

Stock: In Stock
Model: RDDLZ-DPM-DYN303
Weight: 1.00
SKU: RDDLZ-DPM-DYN303

Available Options

Short Description

Transmit Output

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

A digital dynamic torque meter is an electronic instrument designed to measure the torque with a torque sensor. It provides accurate, continuous torque readings, typically displayed digitally, enabling precise monitoring and control in dynamic applications.

Specification

Model	RDDLZ-DPM-DYN303
Work Environment Certainty of Measurement	Operating Temperature Range: -20~55℃
Work Environment Certainty of Measurement	Operating Humidity Range: 20~90％RH
Picking Rate	±0.05％F.S
Levels of Protection	200 Meters per Second
Power Display Range	IP65 (Front Panel Protection)
Torque Input Signal	0~99999
Work Environment	5000~15000Hz
Show	Liquid Crystal Display (LCD) (192*64)
Output Voltage	24V±5%, Current＜320mA
Supply Voltage	100-240V AC 50/60Hz
Consumed Power	≤15VA
Torque Display Range	-99999~99999
Speed Display Range	0~99999
Speed Input Signal	0.3~12000Hz
Applicable Torque Sensor	RDDLZ-TQS-D01

Dimension (Unit: mm)

Tips: What is a digital dynamic torque meter?

A digital dynamic torque meter is a precision instrument used to measure the torque, or rotational force, applied to rotating systems like motors, gearboxes, or shafts. Unlike static torque meters, it is designed to measure torque in real-time during motion, making it ideal for dynamic applications.

These meters typically consist of a strain gauge or sensor mounted on a rotating shaft, which converts mechanical force into electrical signals. The data is transmitted wirelessly or via slip rings to a digital processor, where it is analyzed and displayed. Modern digital torque meters often feature high accuracy, real-time data output, and integration with computer systems for monitoring and analysis.
