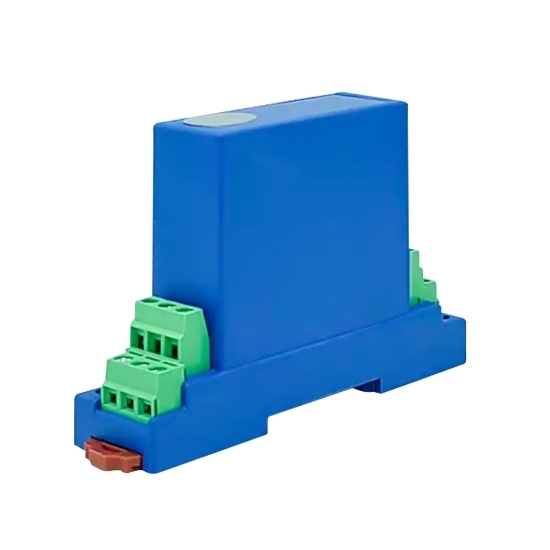

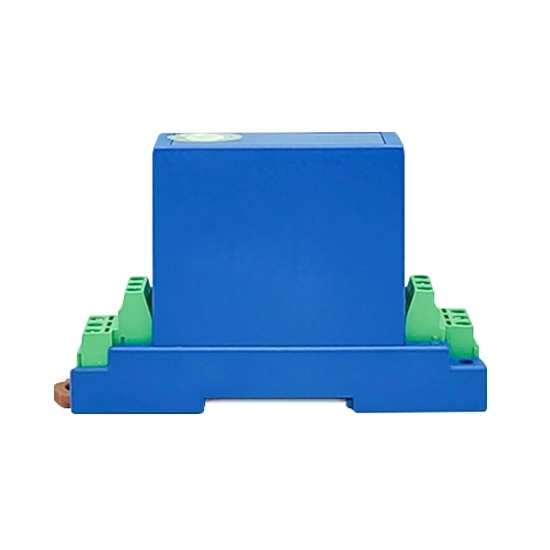

DC Voltage Sensor, 50mV-1000V Input, 2.5V/5V Output

0 reviews • Write a review

from

$149.23

Ex Tax: $149.23

Stock: In Stock
Model: RDDLZ-VOS-DC5
Weight: 1.00
SKU: RDDLZ-VOS-DC5

Available Options

Short Description

Power

Output

Input Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The DC voltage sensor supports input voltages of 50mV, 75mV, 50V, 100V, 200V, 300V, 500V, and 1000V. The output is either 2.5V or 5V with an accuracy of 0.2, and the load capacity is 5mA. It requires DC +12V, +15V, or +24V power and consumes ≤30mA of static current.

Specification

Model	RDDLZ-WBV151S01
Input
Input	DC 50mV, 75mV, 50V, 100V, 200V, 300V, 500V, 1000V (optional)
Allowable Overload	2 times nominal input voltage, 1s duration, 10s interval, repeat 10 times
Linear Measurement Range	0%~120% of rated input
Input Response	Bidirectional DC
Input Impedance	When the measured voltage UX>1V, Ri=UX×10KΩ/V; when the measured voltage UX≤1V, Ri≥1MΩ
Output
Output Type	Tracking current output
Output Specifications	DC 2.5V±2.5V, 5V±5V (optional)
Accuracy Class	0.2
Load Capacity	5mA
Response Time	≤15μs
Temperature Drift	160 x 10⁻⁶/℃
Other parameters
Auxiliary Power	DC +12V, +15V, +24V (optional)
Static Current	≤30mA
Isolation Characteristics	Inputs and outputs isolated, outputs powered
Isolation Withstand Voltage	DC 2.5kV, 1min
Operating Temperature	-25℃～+70℃
Storage Temperature	-25℃～+70℃
Enclosure Protection Rating	IP20
Mean Time Between Failures (MTBF)	＞50000h
Enclosure Material (Acc. to UL94V-0)	Flame retardant ABS
Mounting	Snap-on construction for NS35/7.5, NS35/15 or European standard EN50022 rails or with M3 screws.
Weight	<90g

Note: Other parameters contact customer service.

Feature

Bidirectional DC Voltage Measurement: Accurately measures both positive and negative DC voltages in the range of 50mV to 1000V.
High Precision: Offers high accuracy in voltage measurement, ensuring reliable data for various applications.
Linear Optocoupler Isolation Principle: Utilizes a linear optocoupler for electrical isolation, providing enhanced protection from electrical surges and noise.
Low Power Consumption: Designed with ultra-low power consumption, making it energy-efficient and ideal for battery-powered or low-power applications.
Minimal Drift: Features very low drift, ensuring stable and consistent readings over time, even under varying environmental conditions.
Fast Response Time: Quick response to voltage changes, enabling real-time monitoring and control in dynamic systems.
Flame Retardant Housing: Constructed with a flame-retardant shell to improve safety and durability, especially in harsh or high-risk environments.
Easy Installation: Card-style design for easy installation, with convenient terminal connections for quick wiring and setup.
Output Options: Provides 2.5V or 5V output, making it compatible with a wide range of control and monitoring systems.
Versatile Applications: Ideal for use in industrial control systems, automation, battery monitoring, and other high-precision voltage measurement tasks.

Size (Unit: mm)

Wiring Method

Application

Tips: What are the benefits of the bidirectional DC input response?

The bidirectional DC input response of the DC Voltage Sensor provides significant versatility and precision by enabling the measurement of both positive and negative voltages. This feature is crucial for applications such as battery charging and discharging systems, renewable energy setups, and motor control circuits, where voltage polarity frequently changes. It simplifies system design by eliminating the need for multiple sensors and ensures compatibility with complex circuits. Additionally, it enhances fault detection by quickly identifying reverse voltage issues and supports real-time monitoring of dynamic systems like regenerative braking or energy recovery circuits. By providing accurate and seamless measurements across varying conditions, the bidirectional capability ensures optimal performance, improved safety, and streamlined data interpretation in a wide range of industrial and automation applications.
