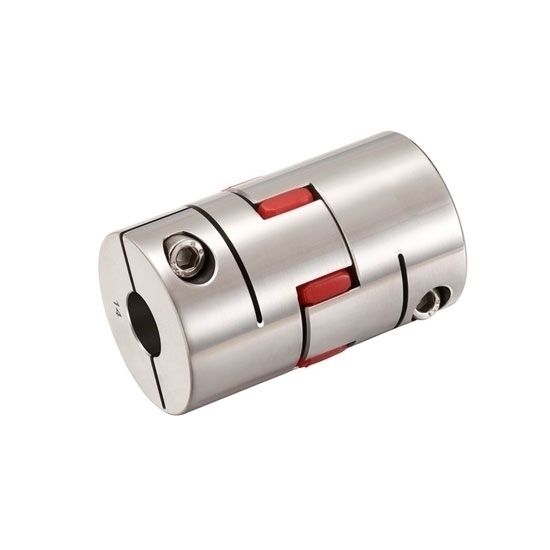

Curved Jaw Coupling, 40 X 55mm

Curved Jaw Coupling, 40 X 55mm
Curved Jaw Coupling, 40 X 55mm
0 reviews • Write a review
from
$179.86
Ex Tax: $179.86
  • Stock: In Stock
  • Model: RDDLZ-SC-GFCG-4055
  • Weight: 1.00
  • SKU: RDDLZ-SC-GFCG-4055

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Curved jaw coupling bore 0.3 inch to 0.9 inch, diameter 1.5 inch, length 2.1 inch, plum coupling has the functions of compensating the relative displacement of the two axes, vibration reduction, buffering, and small radial size.

Specification

  • Model: RDDLZ-SC-GFCG-4055
  • Rated Torque: 48 Nm
  • Eccentricity Allowed: 0.02mm
  • Bore: 8 to 24mm
  • Allowable Declination: 1∠°
  • Allowable Axial Deviation: ±0.60mm
  • Allowable Speed: 10000rpm
  • Static Torsional Stiffness: 550 Nm/rad
  • Moment of Inertia: 3.8 x 10-5 Nm
  • Bushing Material: 304 Stainless steel
  • Rubber Block Material: Polyurethane imported from Germany
  • Surface Treatment: Polished
  • Weight: 289g
  • Certificate: ISO9001, REACH, RoHS
  • Warranty: 12 Months

40mm x 55mm Jaw Coupling Dimension (unit: mm)

  • d1/d2 Inner Diameter Size: 6-6.35-7-8-9-10-11-12-12.7-14-15-16-17-18-19-20-22-24
  • ΦD: 40
  • L: 55
  • LF: 30
  • LP: 13.7
  • F: 7.2
  • M: M5
  • Tightening Torque: 8 Nm

Tips: Daily inspection of the coupling

  1. Check the coupling body for cracks.
  2. Check whether the coupling connection is tight and firm.
  3. Check whether the key connection of the coupling is loose and roll the key.
  4. Check whether there is radial circular runout and end face runout when the coupling rotates.
  5. Check whether the coupling lubrication is in good condition.
  6. Check the complete condition of the coupling gear, the wear condition and the meshing condition of the internal and external gears.
